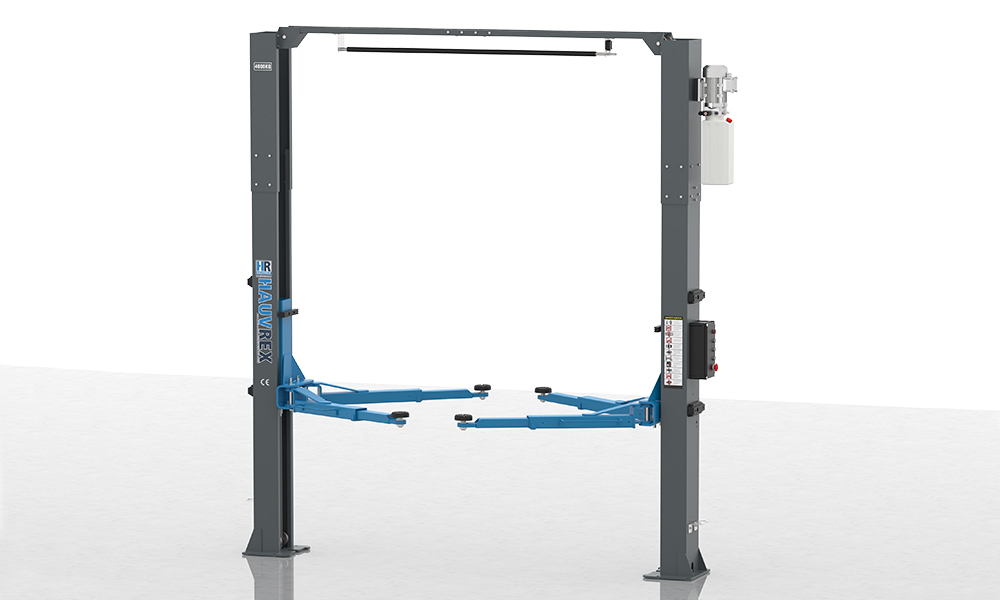

HTL3840 | Two-post Lift

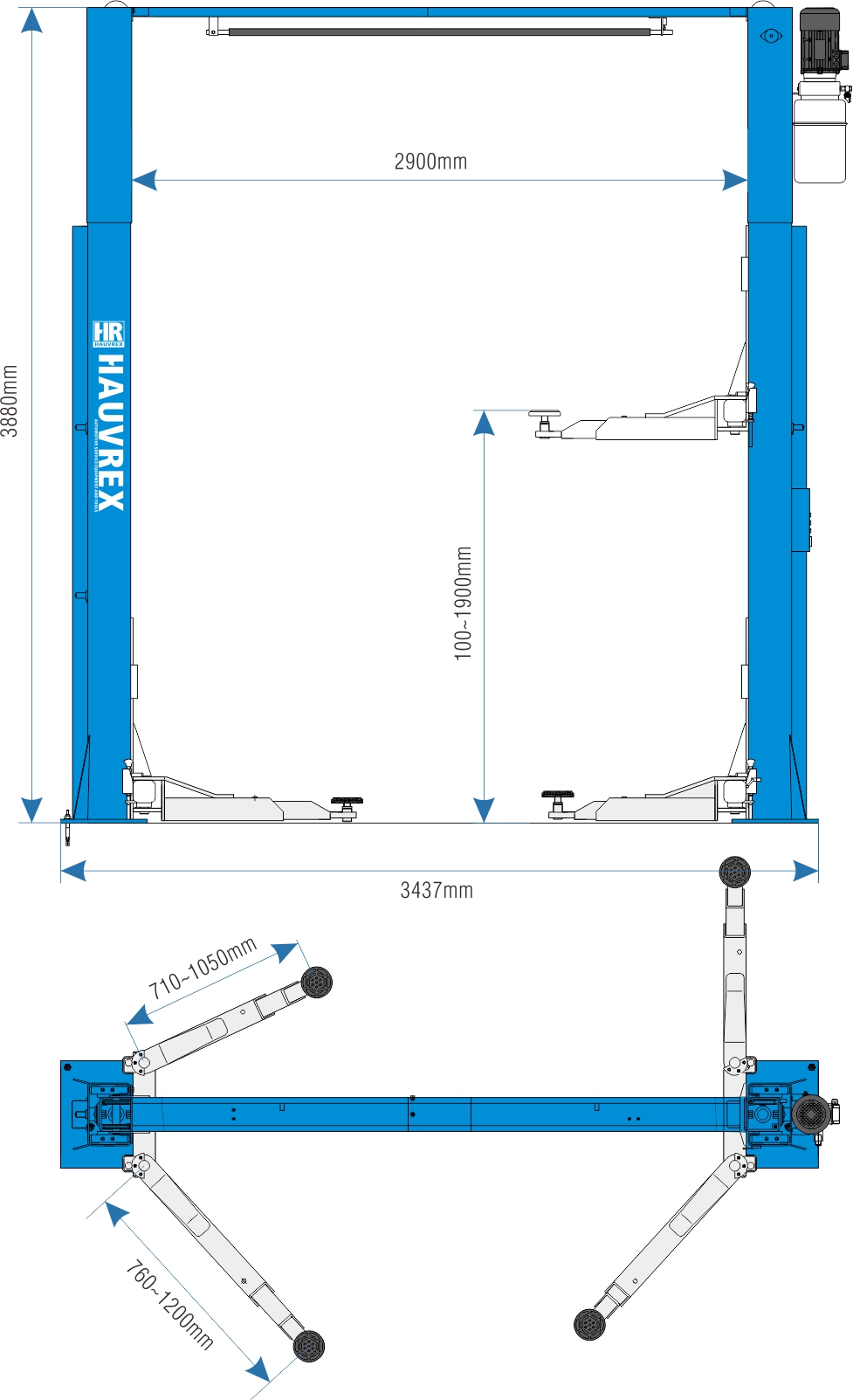

Technical Data Details Overall Dimension Optional parts

Metric

American

Lifting Capacity

4000kg

9000lbs

Min. Height

100mm

3-15/16"

Max. Lifting Height

1900mm

74-13/16"

Overall Height

3880mm

152-3/4"

Overall Width

3437mm

135-5/16"

Width between Posts

2900mm

114-3/16"

Short Arm Length

710~1050mm

27-31/32~41-11/32"

Long Arm Length

760~1200mm

29-15/16~47-1/4"

Lifting/Lowering Time

55Sec./45Sec.

55Sec./45Sec.

Motor Power

2.2kW

2.2kW

Power Supply

220V/50Hz/1Ph

380V/50Hz/3Ph

220V/60Hz/1Ph

110V/60Hz/1Ph
