Metric |
American |
|
|
Lifting Capacity |
5000kg/6000kg |
11000lbs/13000lbs |
|
Min. Height |
110mm |
4-11/32" |
|
Max. Lifting Height |
1900mm |
74-13/32" |
|

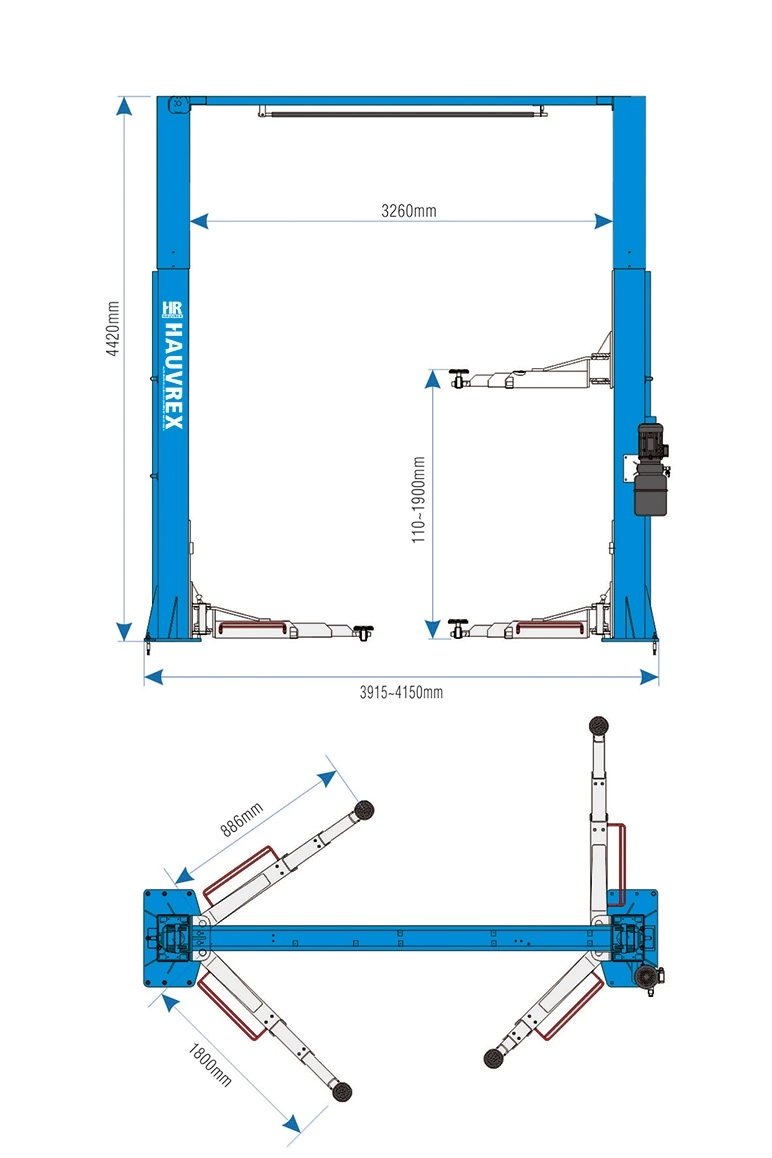

Overall Height |
4420mm |
174-1/32" |
|
Overall Width |
3915mm |
154-1/8" |
|
Width between Posts |
3260mm |
128-11/32" |
|
Lifting Arm Length (Symmetric) |
886~1800mm |
34-29/32"~70-7/8" |
|
Lifting/Lowering Time |
55 Sec./45 Sec. |
55 Sec./45 Sec. |
|
Motor Power |
3.0kW |
3.0kW |
|
Power Supply |
220V/50Hz/1Ph 380V/50Hz/3Ph |
220V/60Hz/1Ph 110V/60Hz/1Ph |
