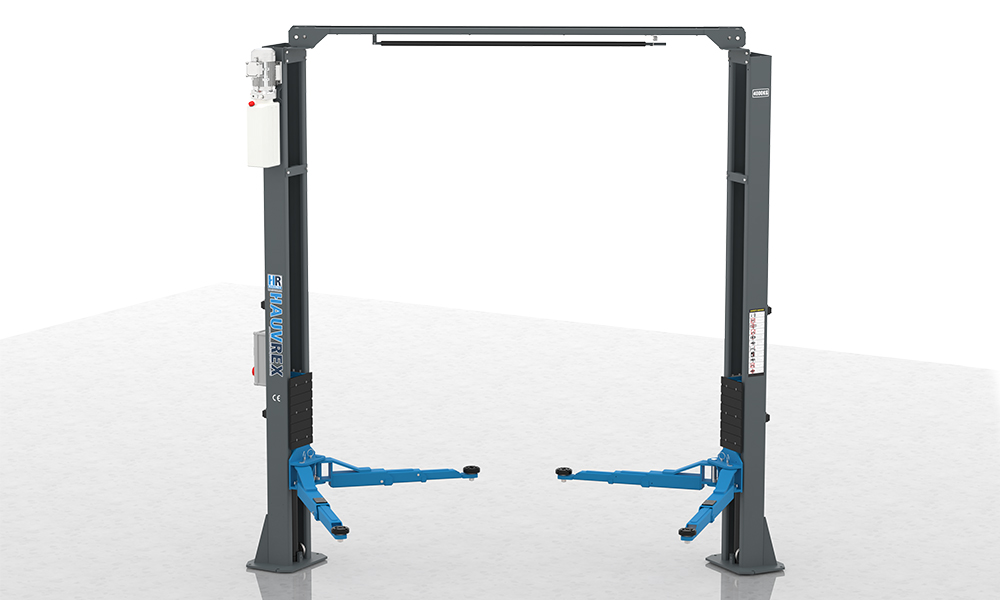

HTL3440ASY | Two-post Lift

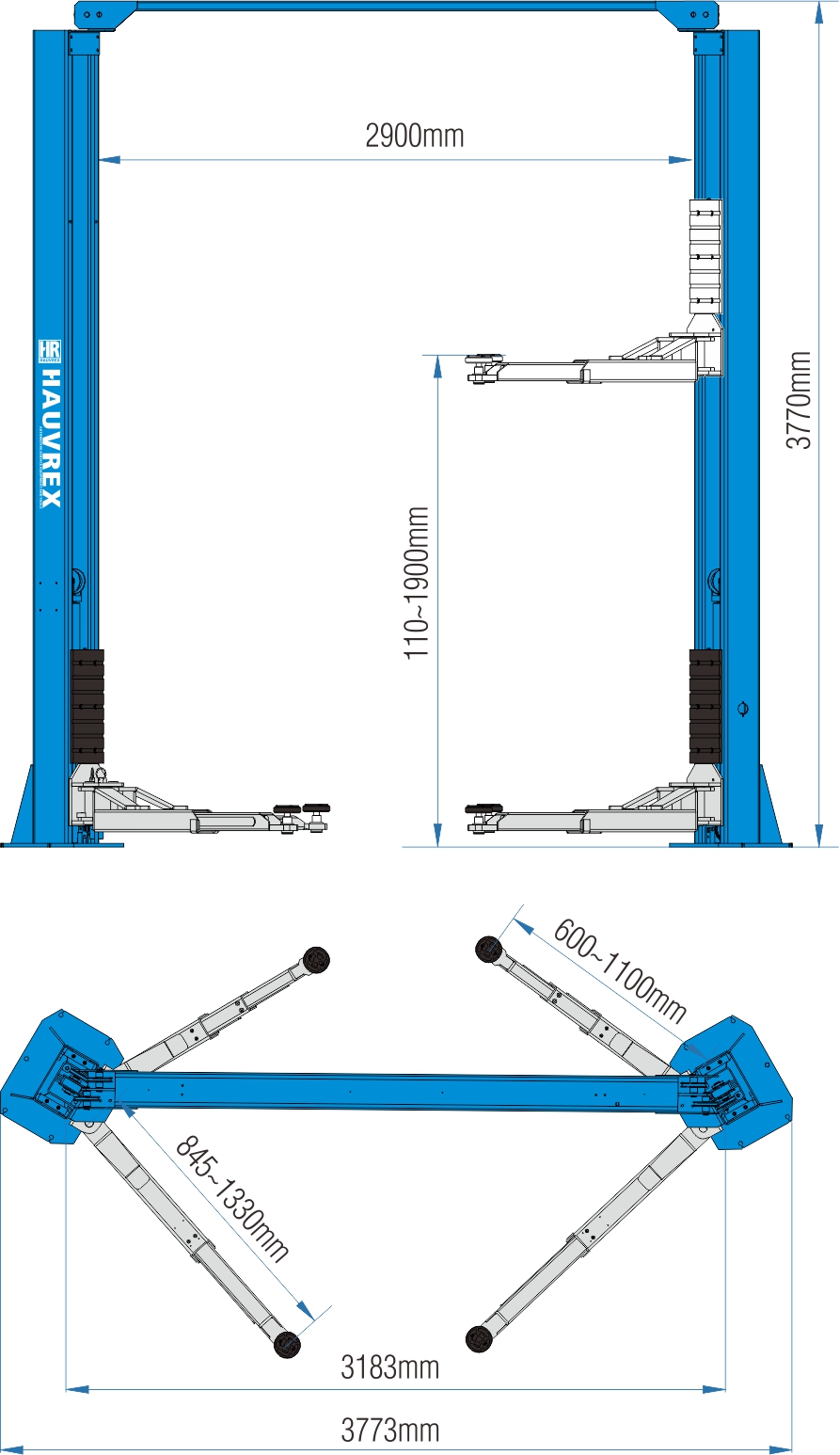

Technical Data Details Overall Dimension Optional parts

Metric

American

Lifting Capacity

4000kg

9000lbs

Min. Height

110mm

4-11/32"

Max. Lifting Height

1900mm

74-13/16"

Overall Height

3770mm

148-7/16"

Overall Width

3773mm

148-17/32"

Width between Posts

2900mm

114-3/16"

Short Arm Length

600~1100mm

23-5/8~43-5/16"

Long Arm Length

845~1330mm

33-1/4"~52-3/8"

Lifting/Lowering Time

55Sec./45Sec.

55Sec./45Sec.

Motor Power

2.2kW

2.2kW

Power Supply

220V/50Hz/1Ph

380V/50Hz/3Ph

220V/60Hz/1Ph

110V/60Hz/1Ph
