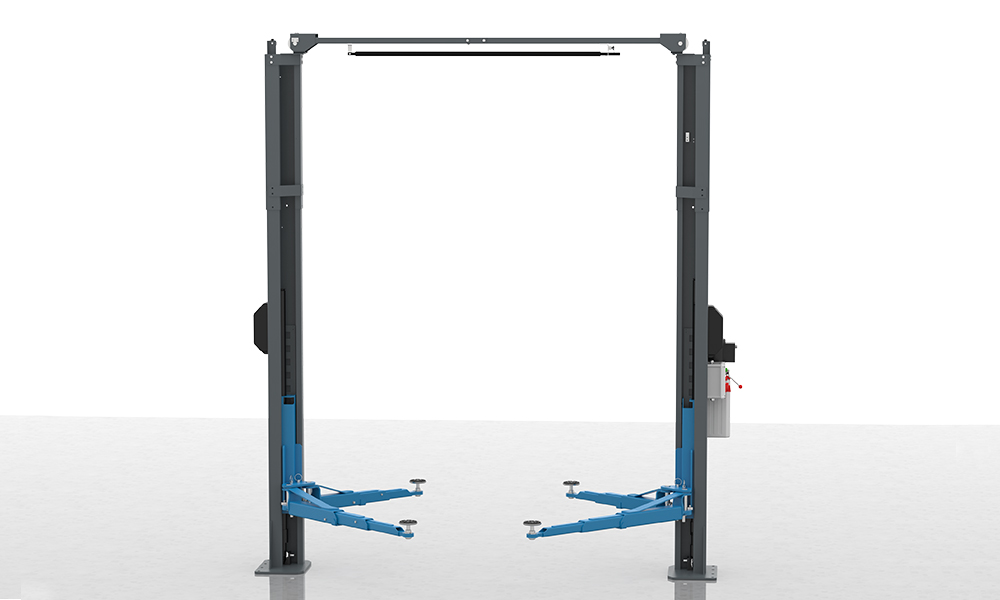

HTL3940S(D) | two-post lift

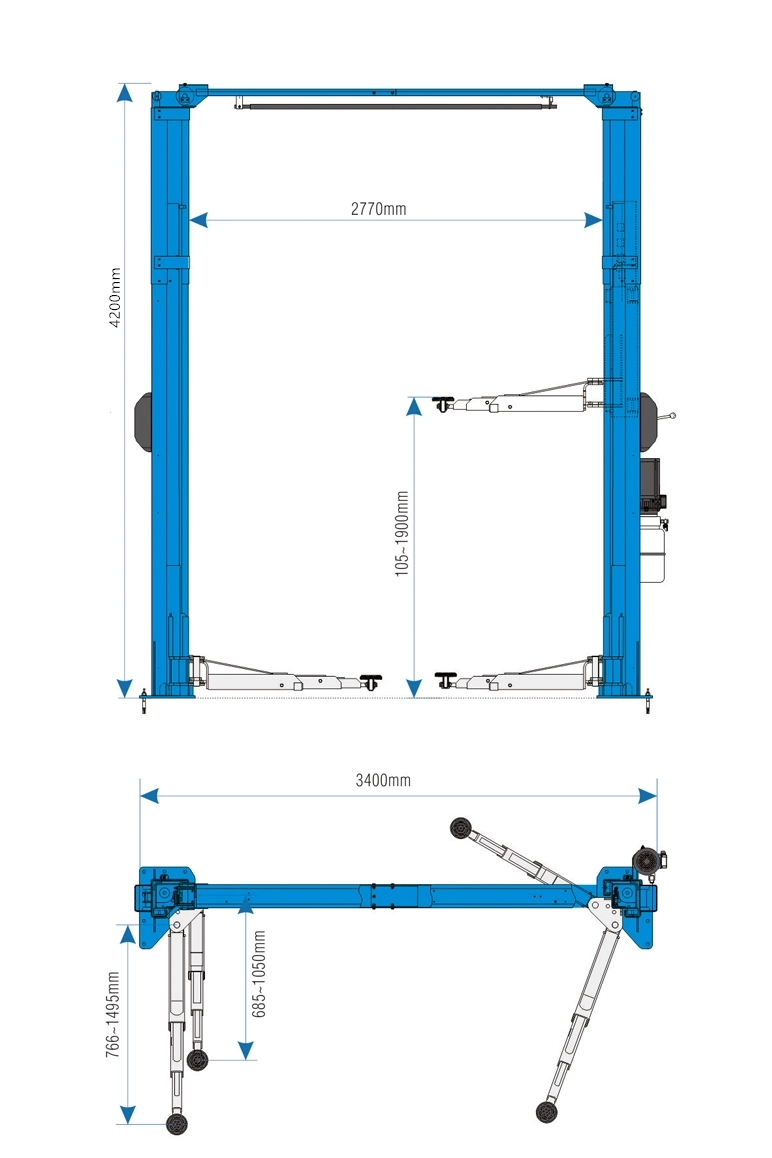

Technical Data Details Overall Dimension Optional parts

Metric

American

Lifting Capacity

4000kg

9000lbs

Min. Height

105mm

4-1/8"

Max. Lifting Height

1900mm

74-13/16"

Overall Height

4200mm

165-5/16"

Overall Width

3400mm

133-27/32"

Width between Posts

2770mm

109-1/16"

Short Arm Length

685~1100mm

26-31/32"~43-5/16"

Long Arm Length

766~1495mm

30-5/32~58-27/32"

Lifting/Lowering Time

55Sec./45Sec.

55Sec./45Sec.

Motor Power

2.2kW

2.2kW

Power Supply

220V/50Hz/1Ph

380V/50Hz/3Ph

220V/60Hz/1Ph

110V/60Hz/1Ph
