Metric |
American |
Lifting Capacity |
4000kg |
9000lbs |
Min. Height |
110mm |
4-11/32" |
Max. Lifting Height |
1900mm |
74-13/16" |

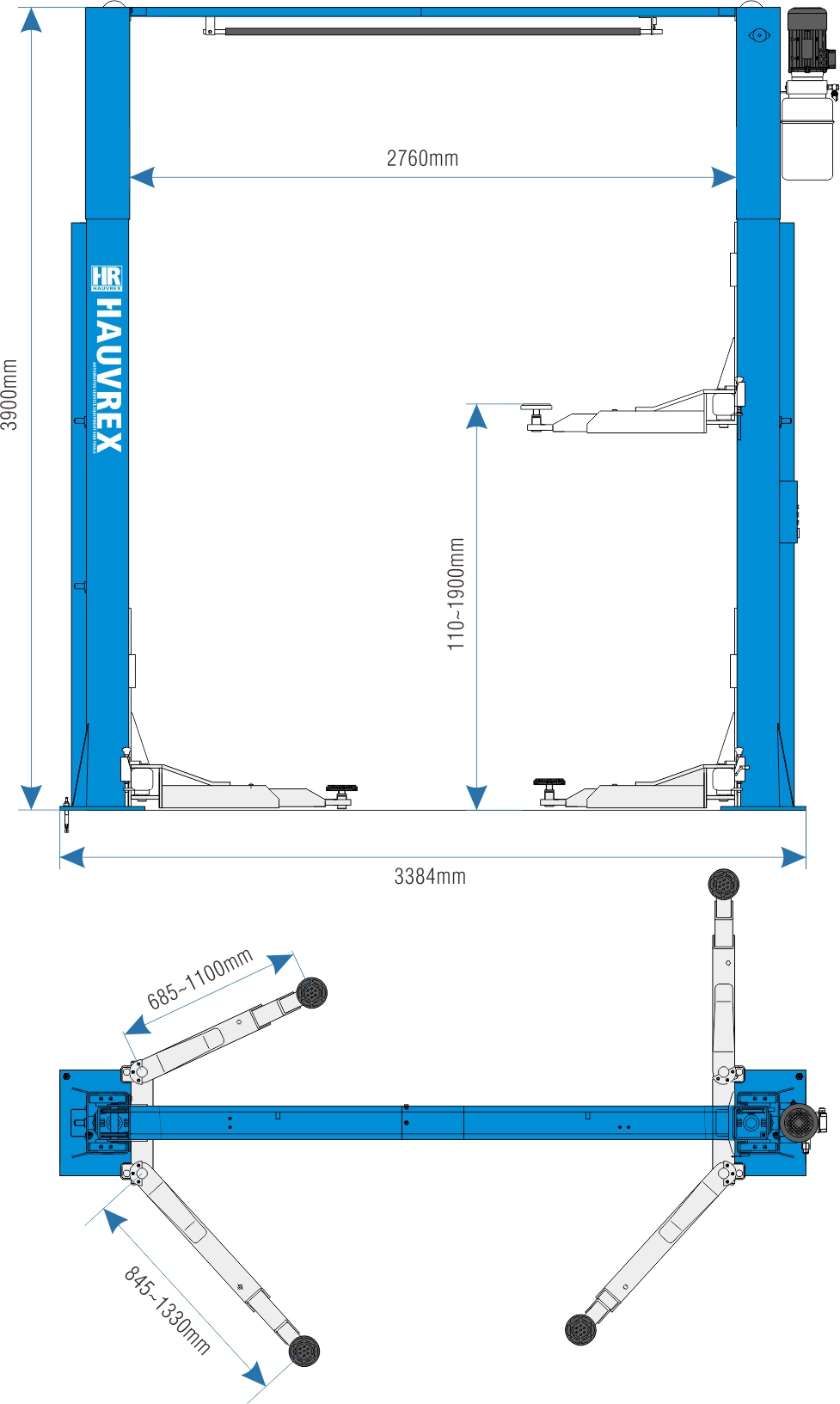

Overall Height |
3900mm |
153-17/32" |
Overall Width |
3384mm |
133-7/32" |
Width between Posts |
2760mm |
108-11/16" |
Short Arm Length |
685~1100mm |
26-31/32"~43-5/16" |
Long Arm Length |
845~1330mm |
33-1/4"~52-3/8" |
Lifting/Lowering Time |
55Sec./45Sec. |
55Sec./45Sec. |
Motor Power |
2.2kW |
2.2kW |
Power Supply |
220V/50Hz/1Ph 380V/50Hz/3Ph |
220V/60Hz/1Ph 110V/60Hz/1Ph |
