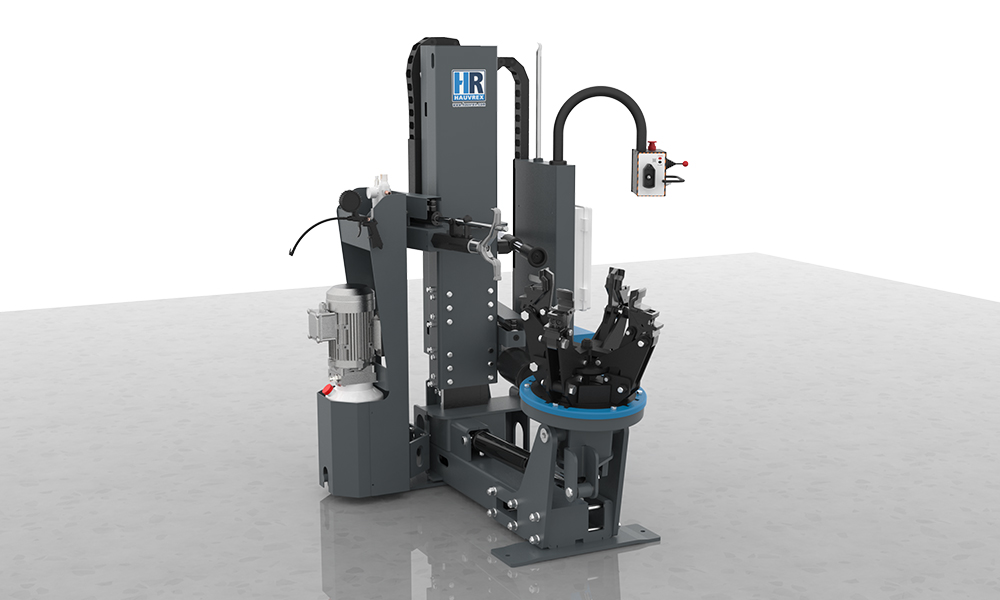

HC8930 | Vertical Truck Tire Changer
♦ New concept vertical truck tire changer for drop-centre and tubeless-tyre van, truck and bus wheels, and wheels with cylindrical rim with rim loop
♦ Electro-hydraulic operation for superior torque and wheel holding power

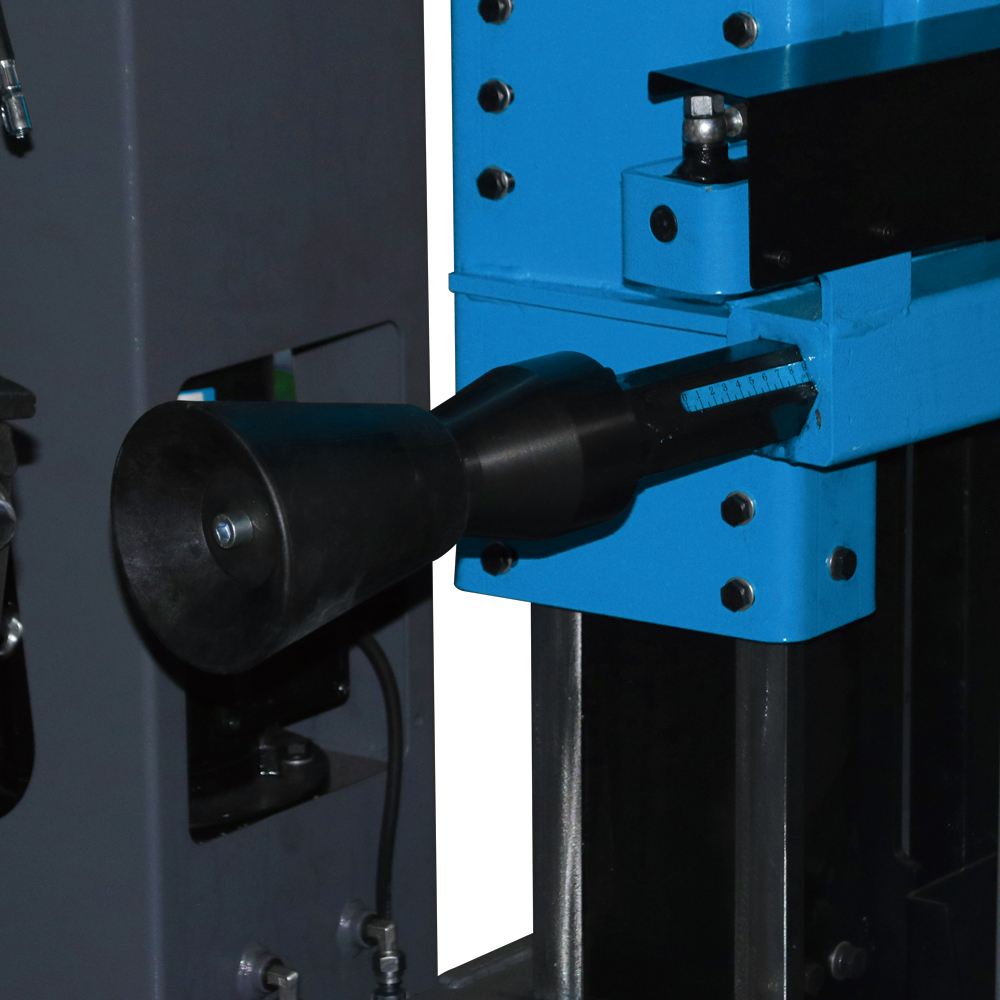

♦ Hydraulic sled carriage for positioning, bead loosening, mounting and demounting procedures.
♦ Hydraulic power unit installed on the machine to take up less space.

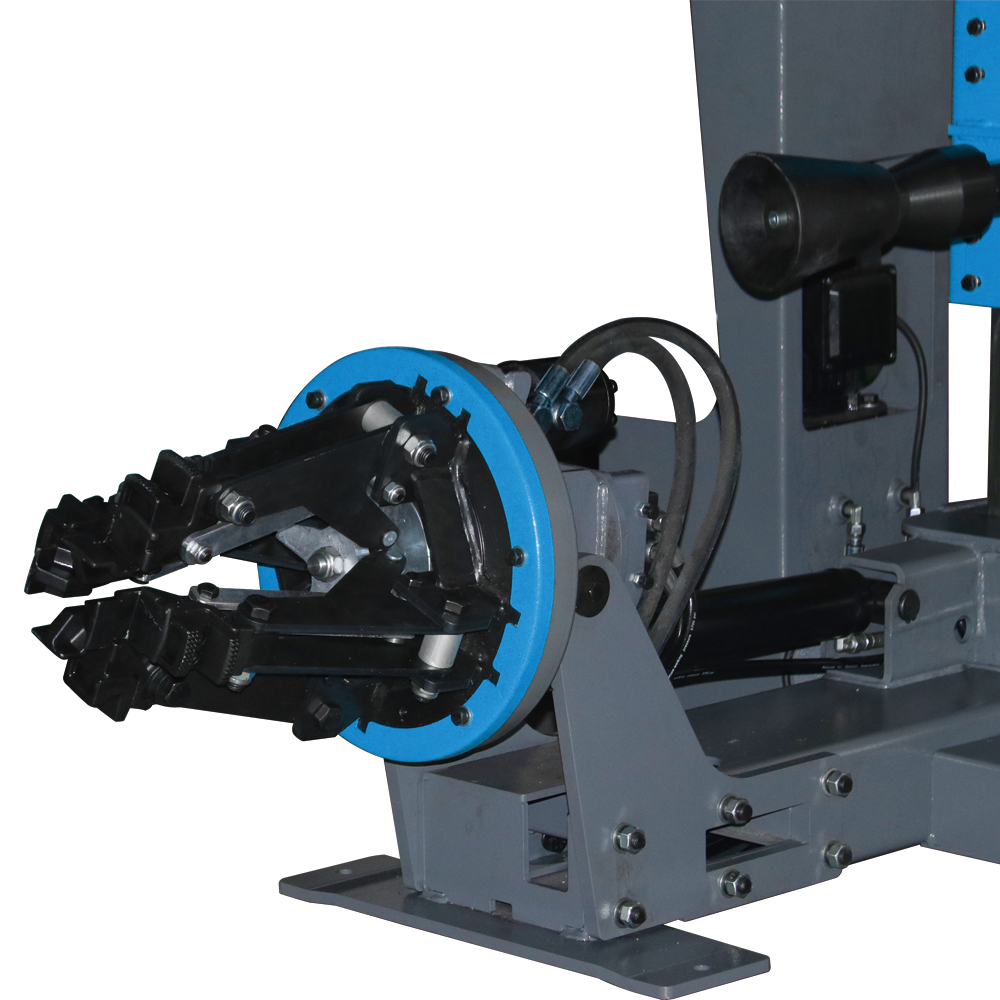

♦ Hydraulically operated universal self-centering chuck clamps rims from 14" to 26" either on the inside or through the center hole ensures clampingof virtually all rims and off-load style wheels.
♦ The clamping chuck rotates in both direction.
♦ With pressure gauge for monitoring the hydraulic pressure.
Technical Data Details Overall Dimension Optional parts

Rim Clamping Range

14"~26"

Max. Wheel Diameter

1400mm

Max. Wheel Width

780mm

Operation Pressure

<130 bar

Motor Power

3.0kW

Power Supply

380V/50Hz/3Ph

220V/50Hz/1Ph
