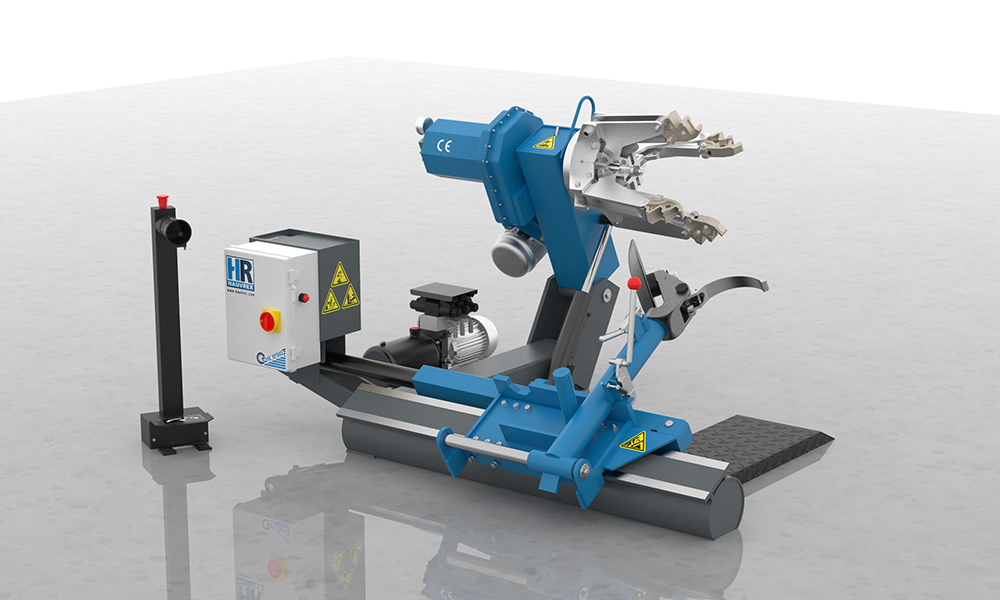

HC8910 | Truck Tire Changer
♦ Automatic Tyre Changer for drop-centre and tubeless-tyre van, truck and bus wheels, and wheels with cylindrical rim with rim loop
♦ Electro-hydraulic operation for superior torque and wheel holding power
♦ Simple controls and positionable unit console lets the operator safely monitor the tire-changing process from the most advantageous angle.
♦ Hydraulic sled carriage for positioning, bead loosening, mounting and demounting procedures.
♦ Hydraulic power unit installed on the machine to take up less space.
♦ The new standby function assures the user considerable energy saving and lower power unit noise emissions.

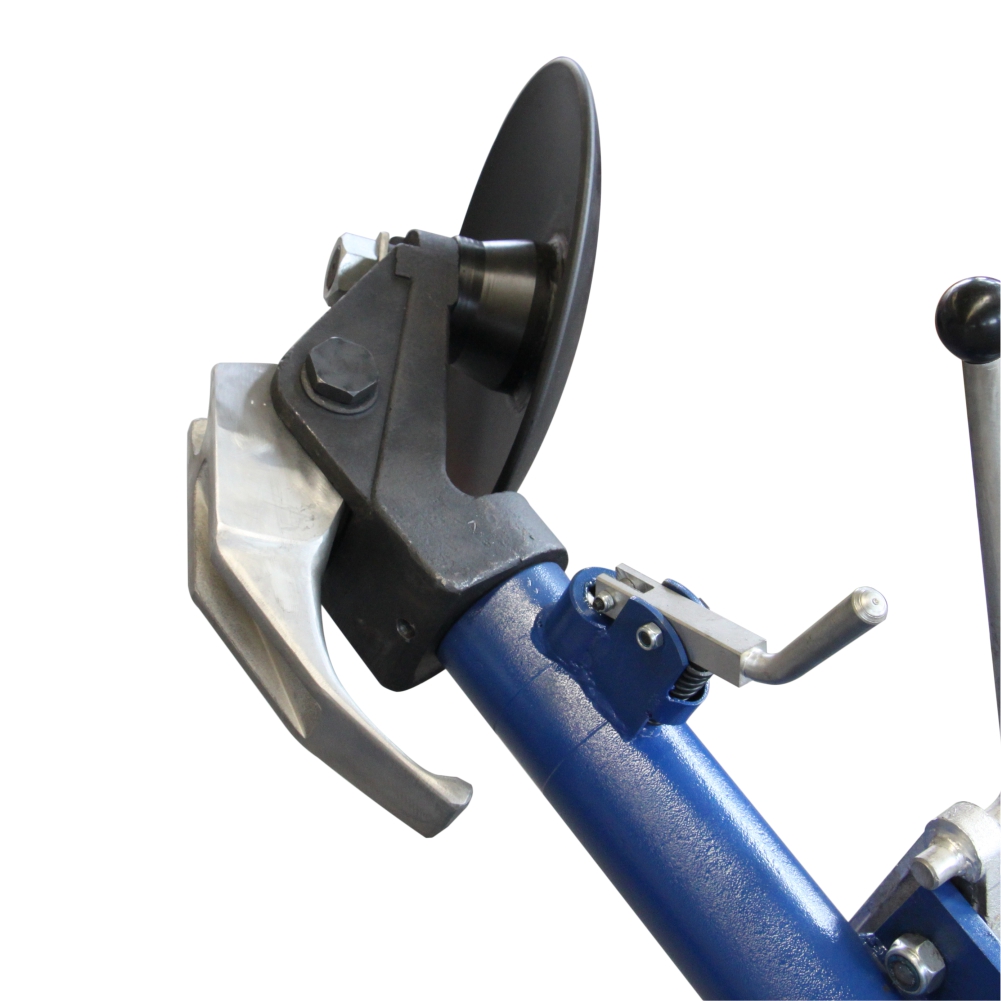

♦ Overhanging mobile bead breaker disc mounted on self-lubricating bushings
♦ The clamping chuck rotates in both direction.
♦ With pressure gauge for monitoring the hydraulic pressure.
Technical Data Details Overall Dimension Optional parts

Rim Clamping Range

14"~26"

Max. Wheel Width

780mm

Max. Wheel Diameter

1600mm

Max. Wheel Weight

500kg

Beadbreaking Force

2700kg

Operating Pressure

130 bar

Gear Motor Power

1.5kW

Power Supply

380V/50Hz/3Ph

220V/50Hz/1Ph
