  • HC8610(IT)

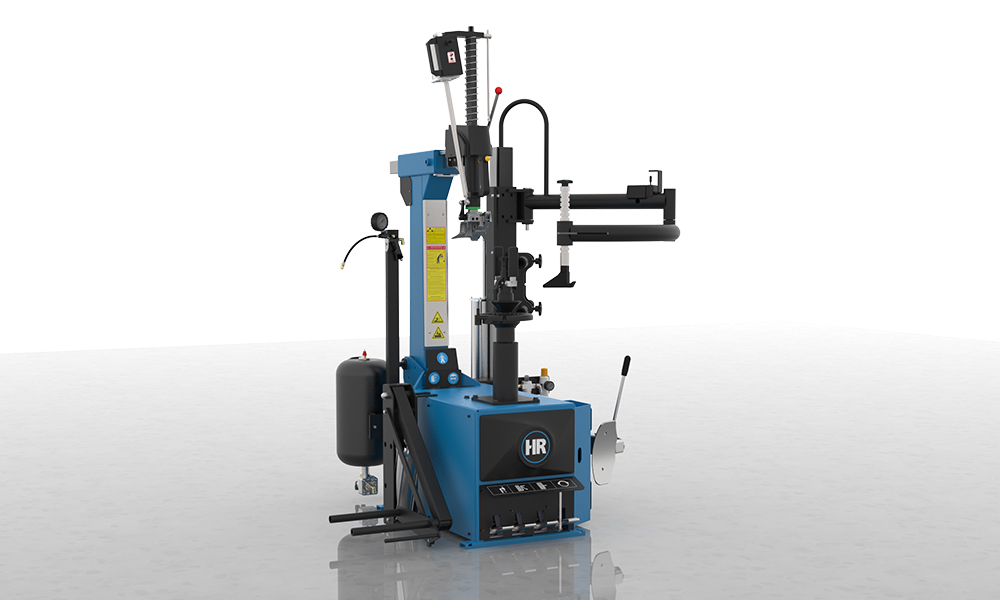

HC8610(IT) | Automatic Center Clamping Tire Changer
♦ Quick fit center wheel clamping eliminates rim edge damage and provides positive center hole clamping using a cone and quick nut with pneumatic locking.
♦ Variable Speed pedal operated rotation allows you to select the appropriate speed for differenttyre types, enhancing efficiency and productivity
♦ Simultaneous pneumatic locking of the horizontal and vertical arms with automatic positioning of the head in the optimal work position.
♦ The innovative leverless tool head eliminates the need for traditional tyre levers, reducing the risk of damage to tyres and rims while saving you valuable time and effort.
♦ Extra strong pneumatic tilt back column
♦ Powerful alu-alloy beadbreaker cylinder with 2800kg beadbreaking force makes quick work of the toughest tires. Side mounted wheel lift to reduce fatigue and minimise back injuries when litting heavy wheels.
♦ The design ot the front backlit plastic decorative cover enhances both atractiveness and a technological aesthetic
DP80 right helper arm:
» The Assist Arm offers super-fast tyre removal and installation with its variable speed functionality. Whether you're working on passenger cars, SUVs, or light trucks, this assist arm provides the power and precision you need to handle a wide range of tyre sizes and profiles.

Technical Data Details Overall Dimension Optional parts

Clamping Size

12"~32"

Max. Wheel Diameter

1150mm

Rim Width

3"~14"

Beadbreaking Force

2700kg

Operation Pressure

8~10 bar

Motor Power

1.0kW/1.5kW

Power Supply

380V/50Hz/3Ph

220V/50Hz/1Ph
