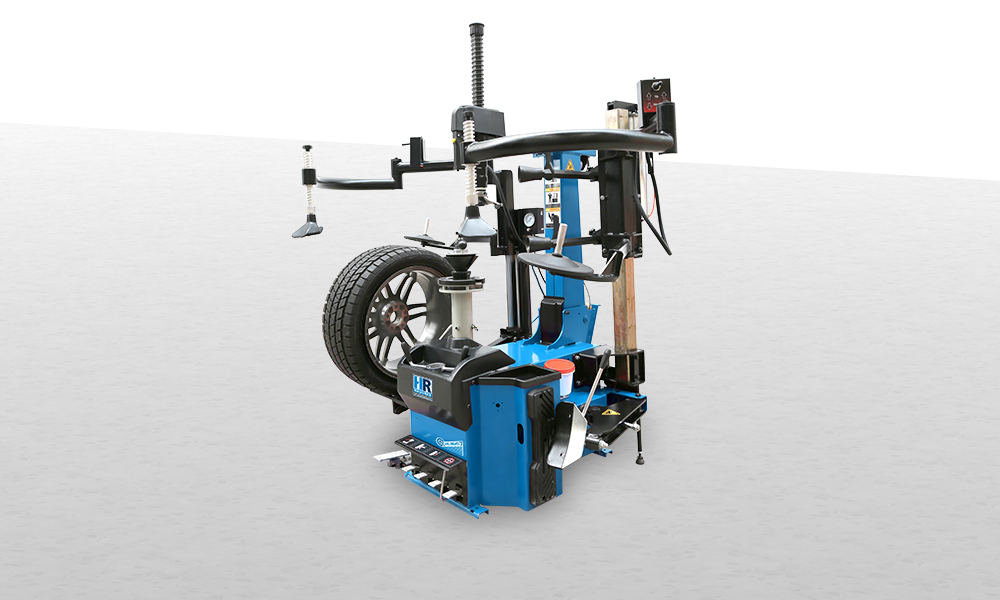

HC8610 | Automatic Tire Changer
♦ Quick fit center wheel clamping eliminates rim edge damage and provides positive center hole clamping using a cone and quick nut with pneumatic locking .
♦ Simultaneous pneumatic locking of the horizontal and vertical arms with automatic positioning of the head in the optimal work position.
♦ Tool head with interchangeable plastic inserts for rim protection.
♦ Pneumatic tilting arm support column featuring high torsional rigidity in all operation positions.
♦ Tire inflation unit mounted on column with inflation tube, pressure gauge and pressure release button.

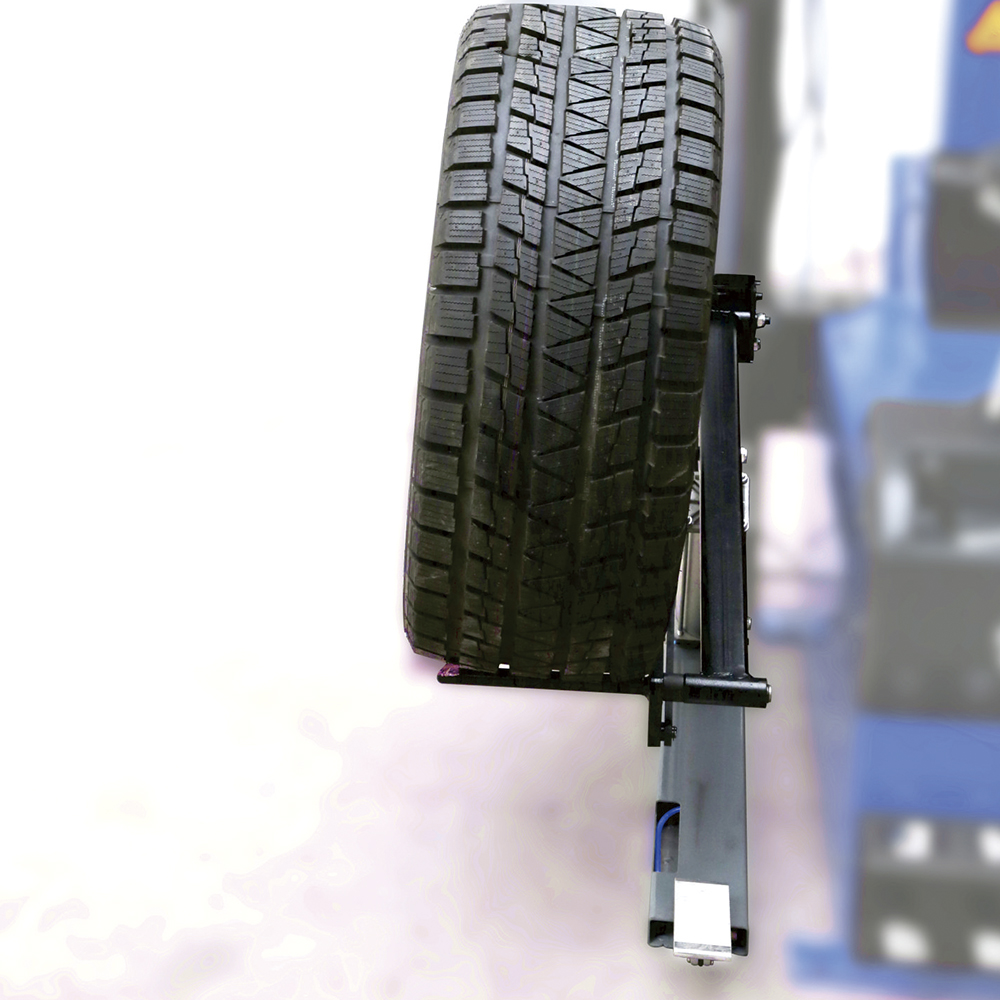

♦ Integrated wheel lift reduces fatigue and the chance for injury presented by handling heavy tires and rims.
PX30 left helper arm:
» Rotating arm with bead pressing head for drop-center rims, to assist fitting and removal of tyres, particularly low profile tyres.
» Tyre lifting disk to aid in demounting difficult tyre and wheel combinations.
DP70 right helper arm:
» Rotating arm with bead pressing head for drop-center rims, to assist fitting and removal of tyres, particularly low profile tyres.
» Tyre lifting disk to aid in demounting difficult tyre and wheel combinations.
» Dual bead roller system
Technical Data Details Overall Dimension Optional parts

Rim Clamping Outside

12"~28"

Rim Clamping Inside

10"~24"

Max. Wheel Diameter

1150mm

Max. Wheel Width

3"~15"

Beadbreaking Force

2700kg

Operation Pressure

8~10 bar

Motor Power

1.0kW/1.5kW

Power Supply

380V/50Hz/3Ph

220V/50Hz/1Ph
