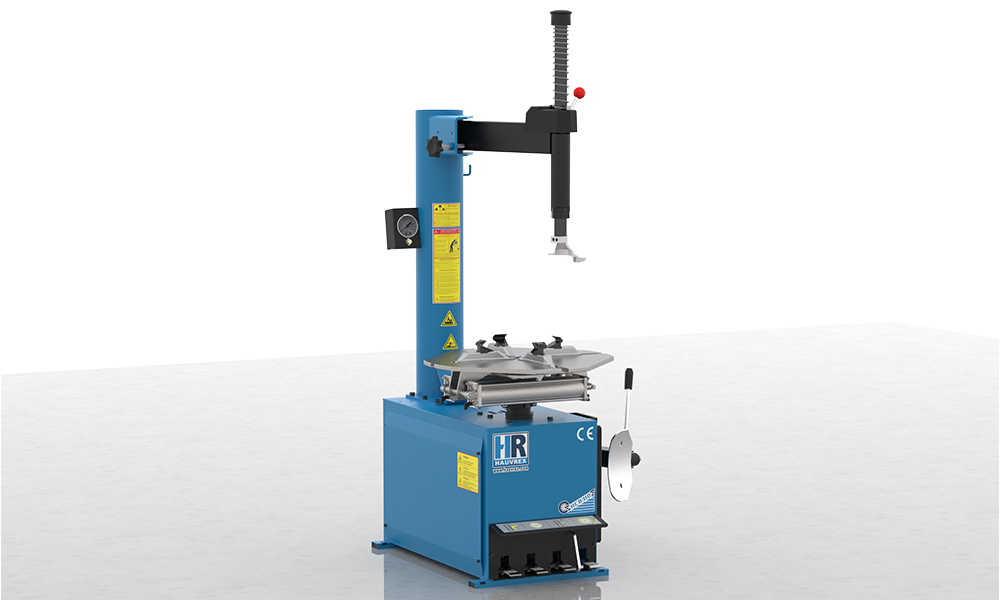

HC8310 | Semi-Automatic Tyre Changer

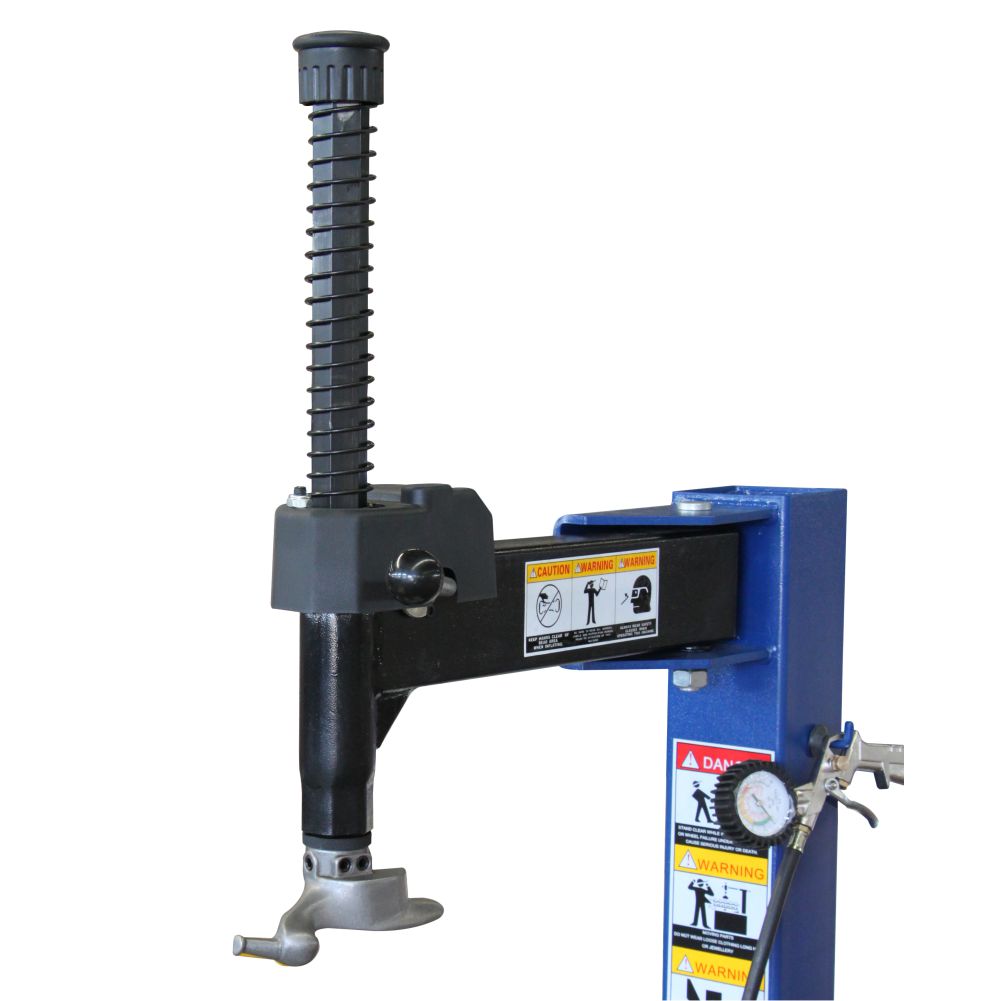

♦ Swing horizontal arm with Ø41mm hexagon shaft.
♦ Cylindrical vertical tower featuring high torsional rigidity.

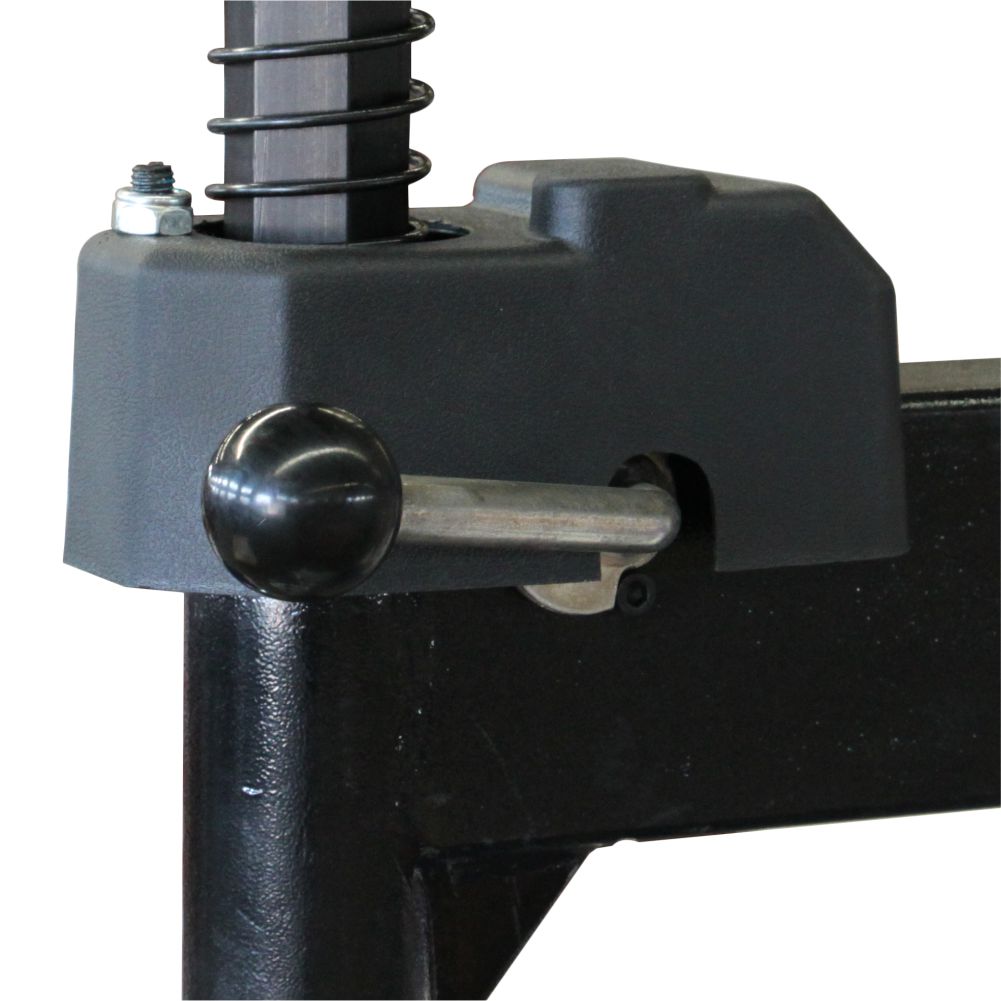

♦ Mechanical locking and vertical adjustment of mounting arm.

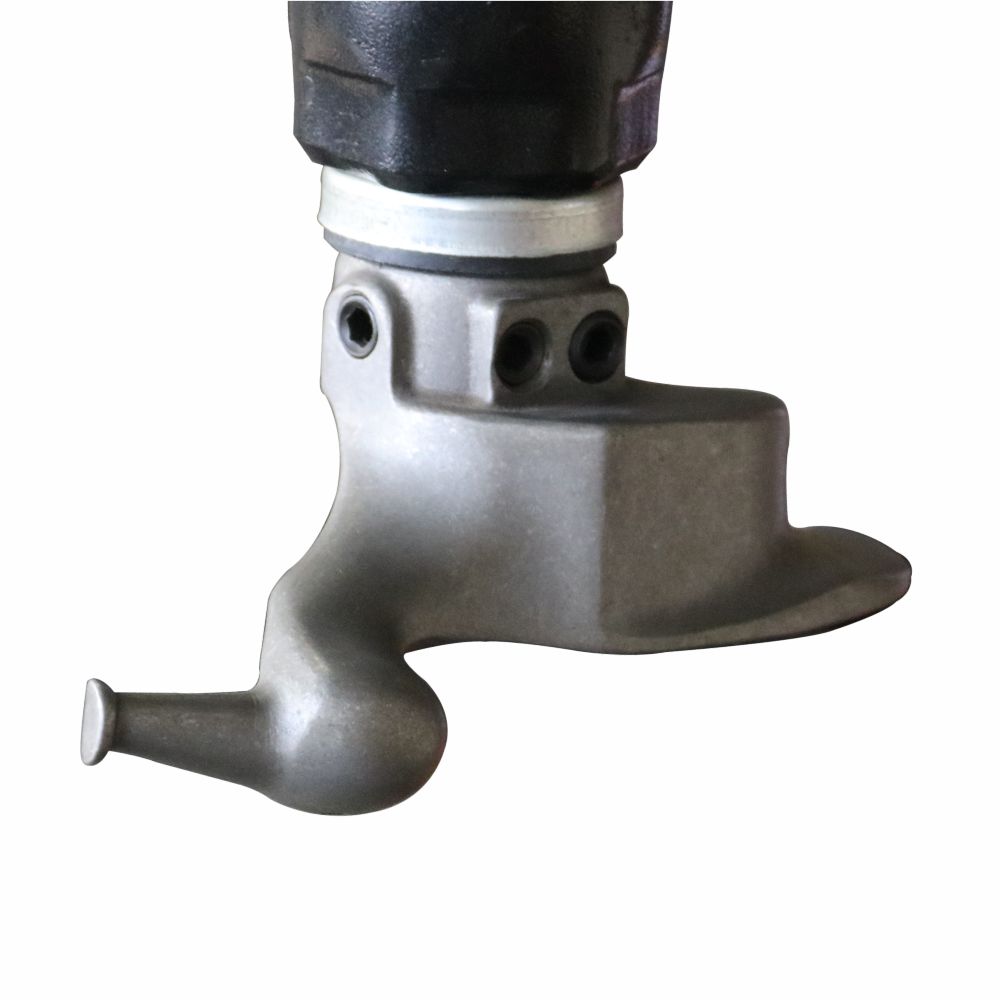

♦ Tools head with interchangeable plastic inserts for rim protection.

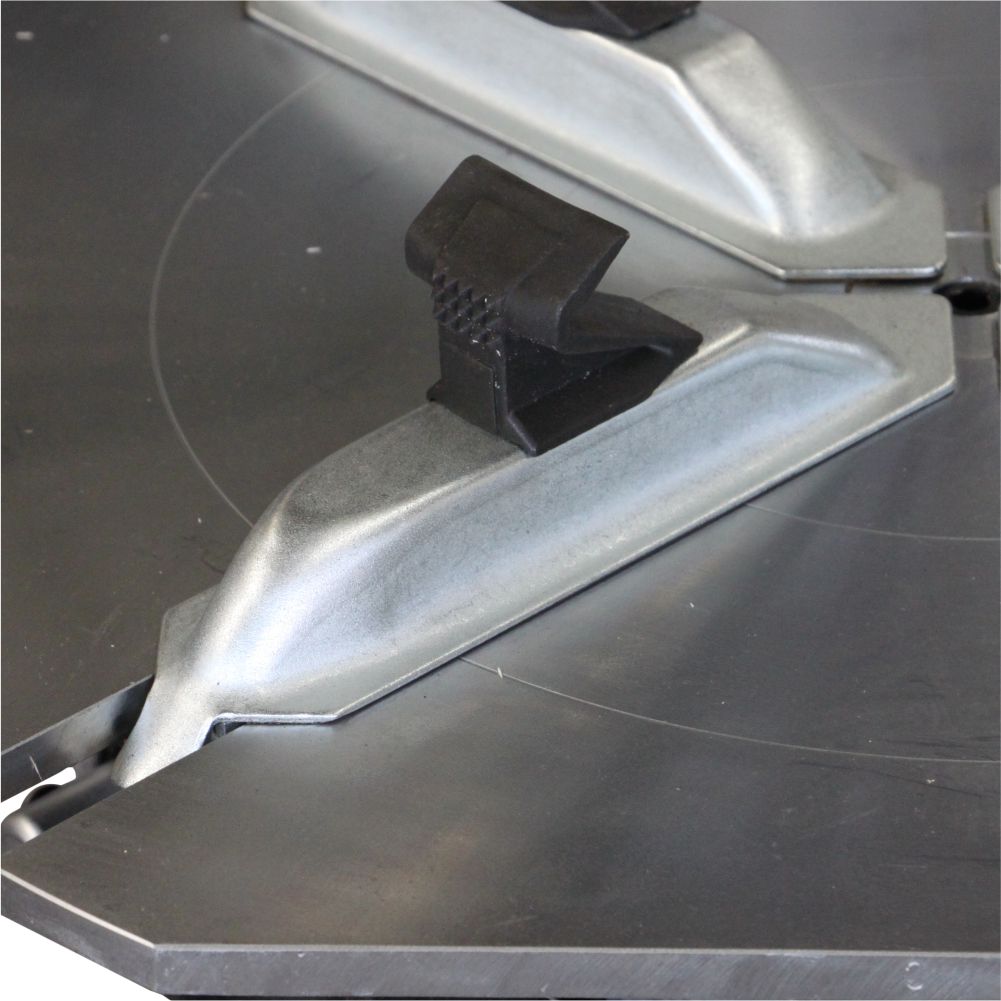

♦ Self-centering four-jaws with double pneumatic cylinder for secure clamping of all rim types.
♦ Powerful clamping cylinders provide uniform clamping pressure.
♦ Clockwise and anticlockwise rotation of the turntable through electric motor.
♦ The pedal assembly can be removed allowing easy servicing.
♦ Tire inflation unit mounted on column with inflation tube, pressure gauge and pressure release button
♦ Protection kit for bead breaker shoe, demounting head and clamping jaw comes standard.

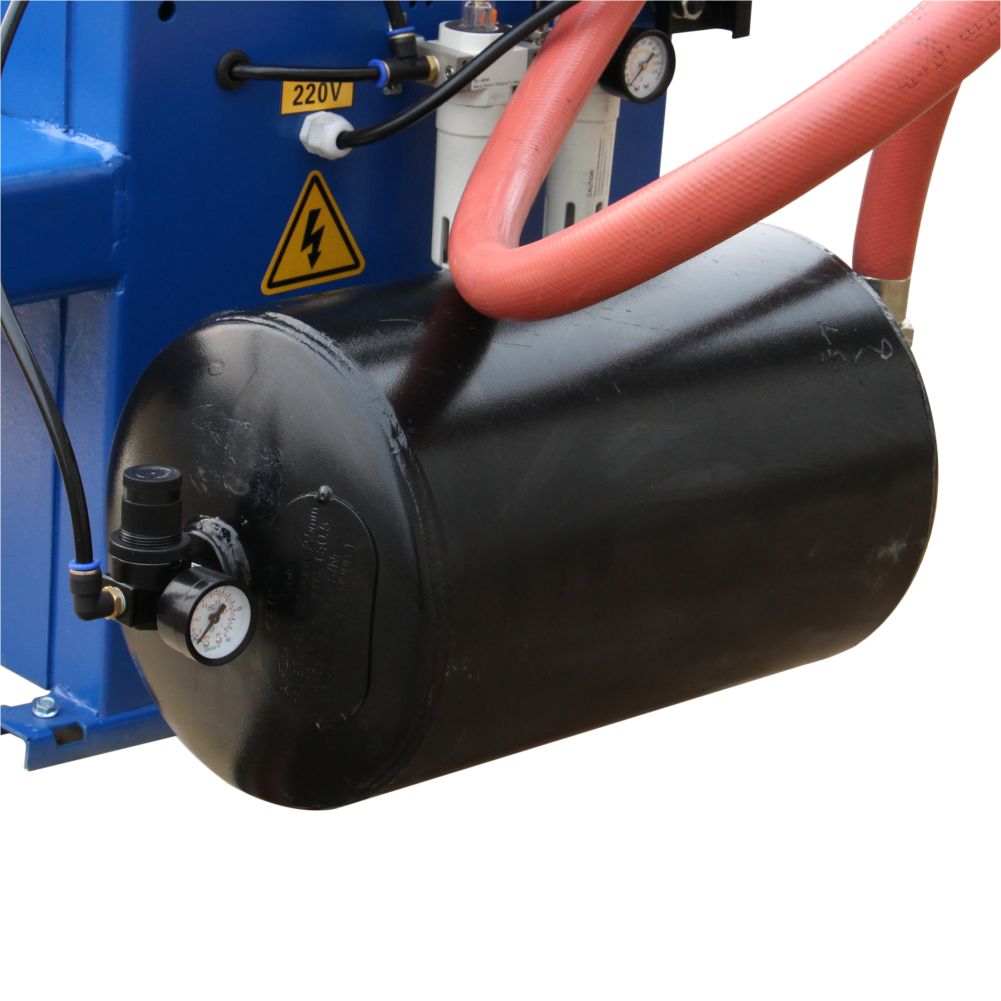

♦ Complete with lubrication filter and pressure regulator.
Technical Data Details Overall Dimension Optional parts

Rim Clamping Outside

12"~24"

Rim Clamping Inside

10"~22"

Max. Wheel Diameter

1040mm

Max. Wheel Width

3"~15"

Beadbreaking Force

2700kg

Operation Pressure

8~10 bar

Motor Power

0.75kW/1.1kW

Power Supply

380V/50Hz/3Ph

220V/50Hz/1Ph
