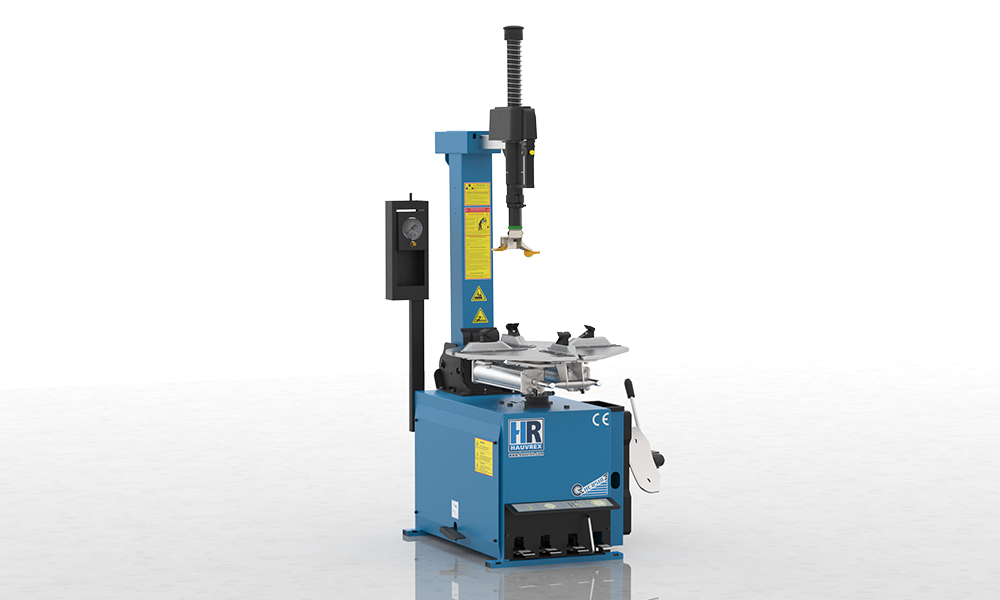

HC8510 | Automatic Tilt Column
♦ Automatic tyre changer with pneumatic tilt-back tower.
♦ Robust Ø41mm hexagon shaft.

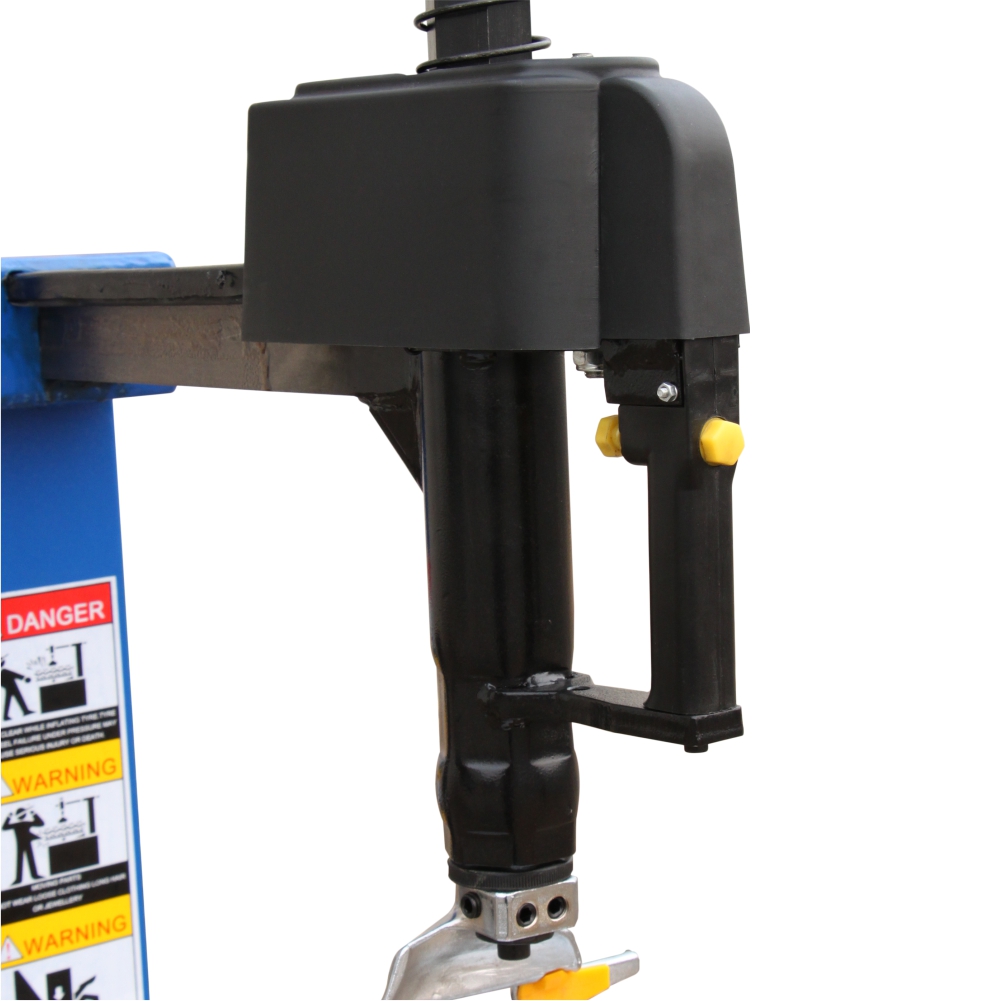

♦ Simultaneous pneumatic locking of the horizontal and vertical arms with automatic positioning of the head in the optimal work position.

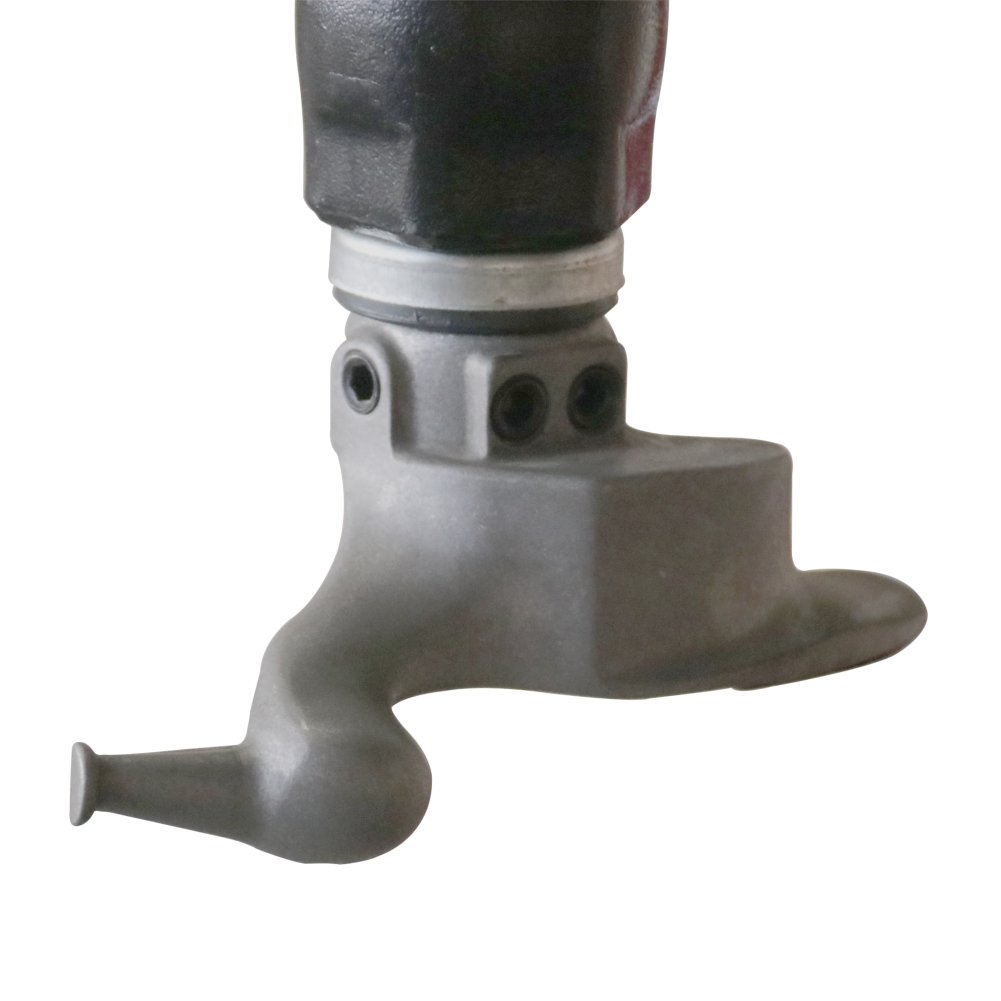

♦ Tools head with interchangeable plastic inserts for rim protection.
♦ Pneumatic tilting arm support column featuring high torsional rigidity in all operation positions.

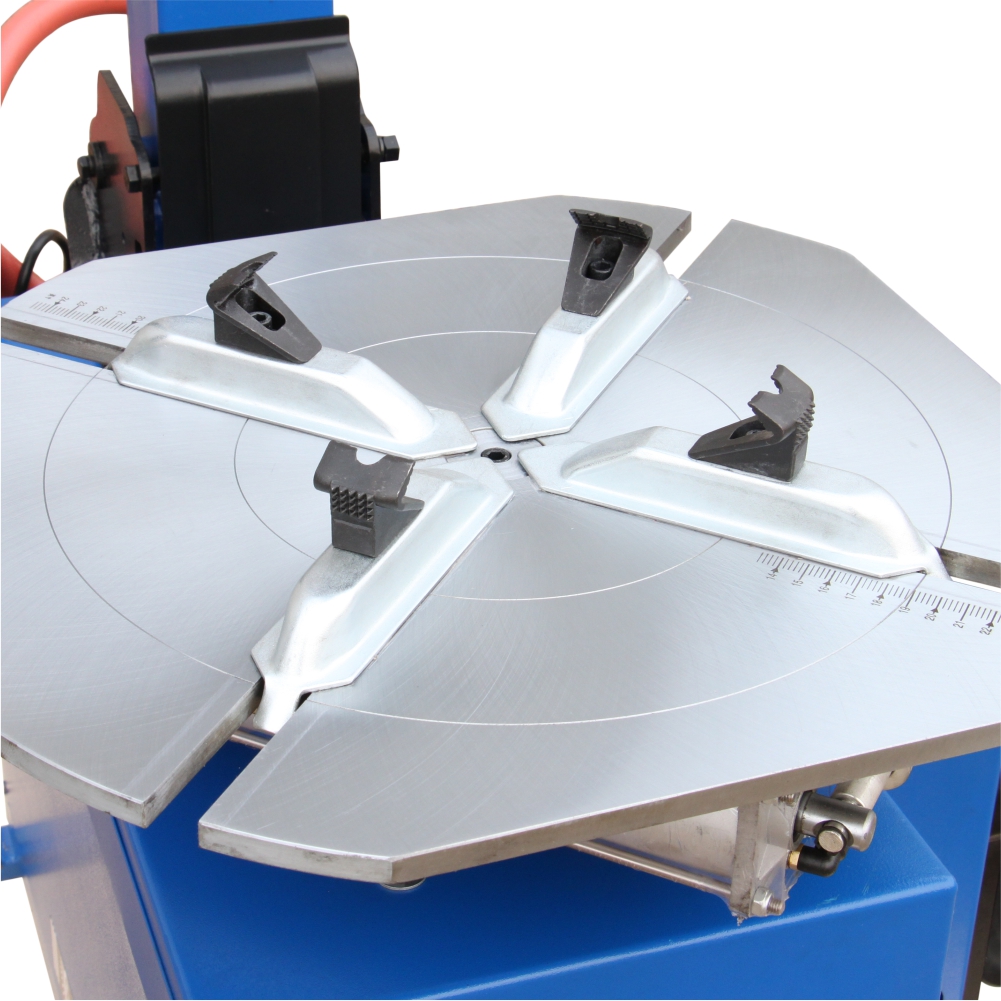

♦ Self-centering four-jaws with double pneumatic cylinder for secure clamping of all rim types.
♦ Powerful clamping cylinders provide uniform clamping pressure.
♦ Clockwise and anticlockwise rotation of the turntable through electric motor.

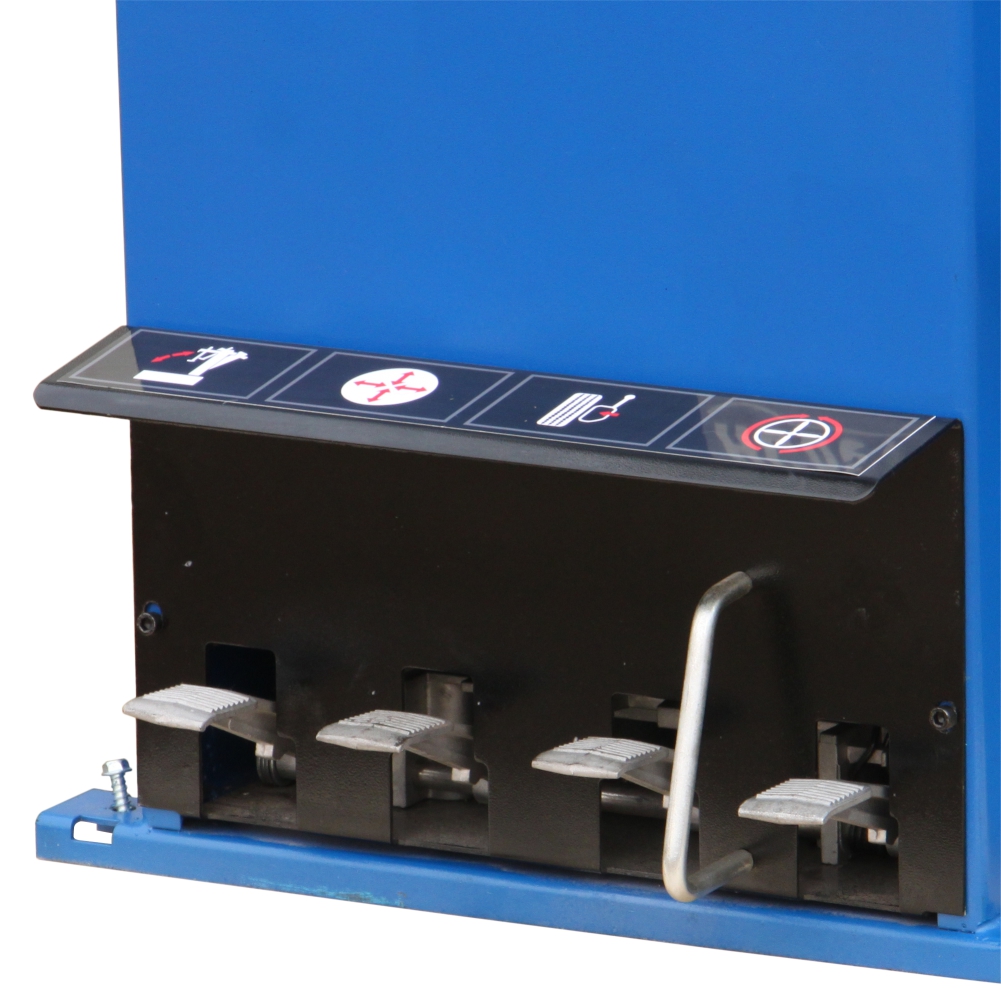

♦ The pedal assembly can be removed allowing easy servicing.

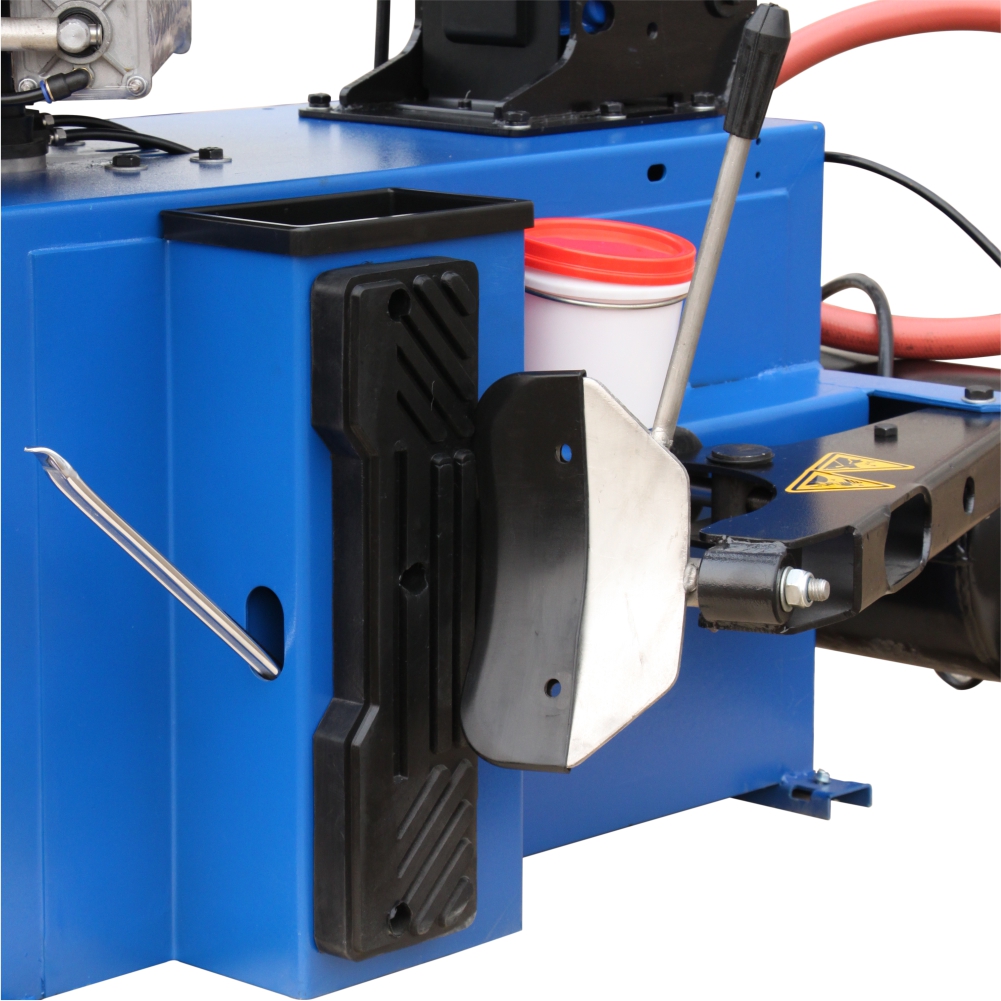

♦ Protection kit for bead breaker shoe, demounting head and clamping jaw comes standard.

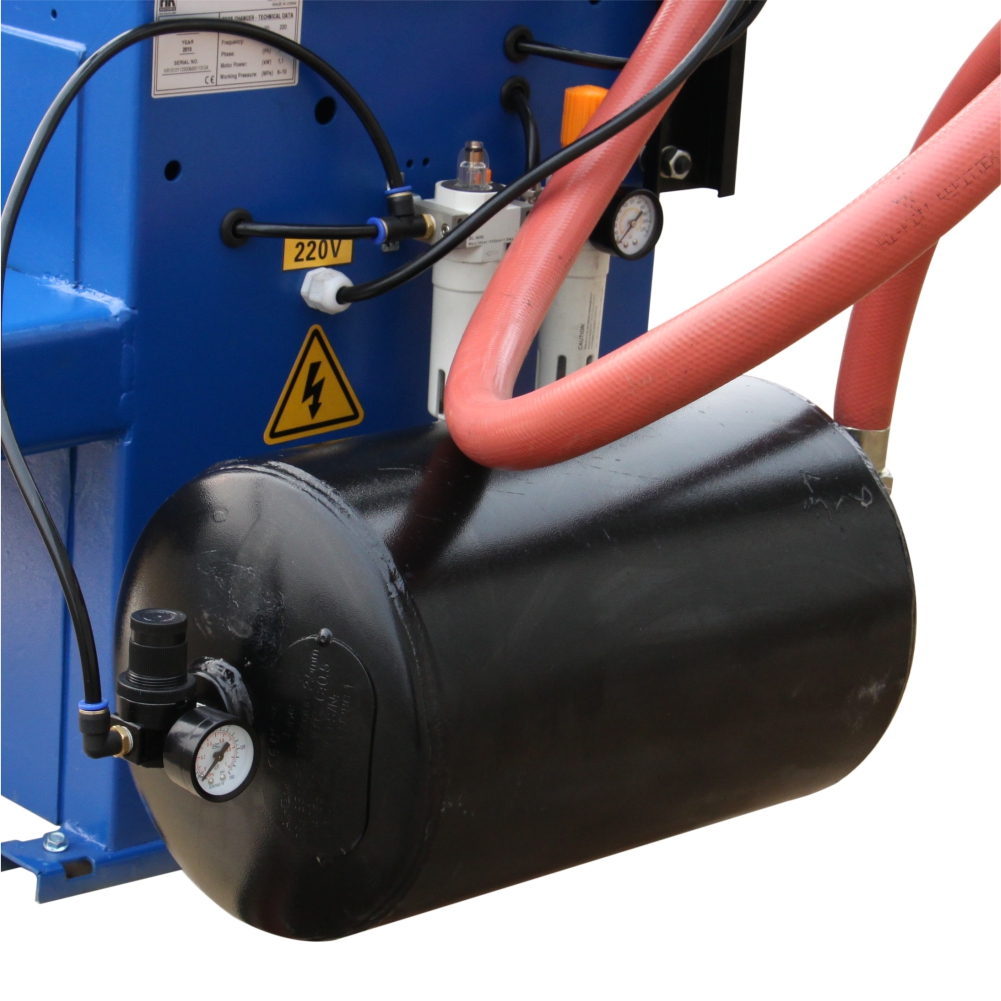

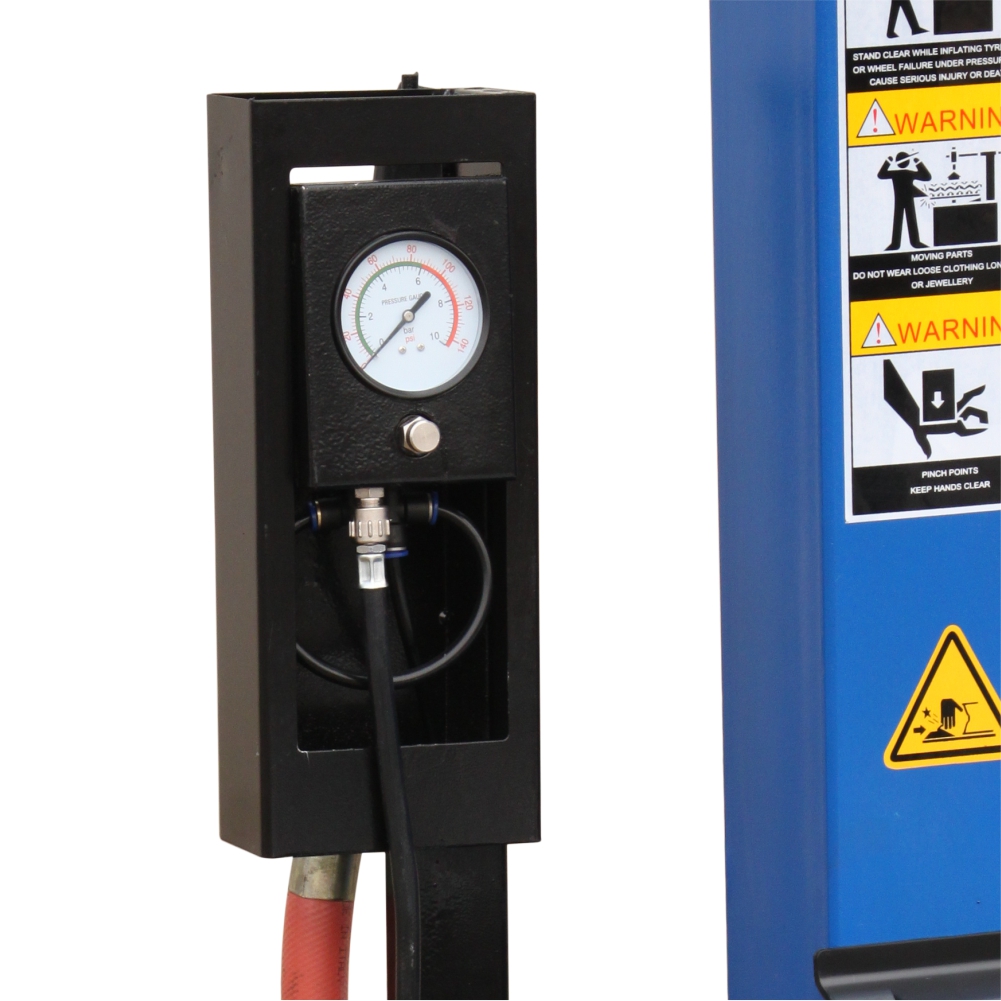

♦ Independent tire inflation bay with inflation tube, pressure gauge and pressure release button.

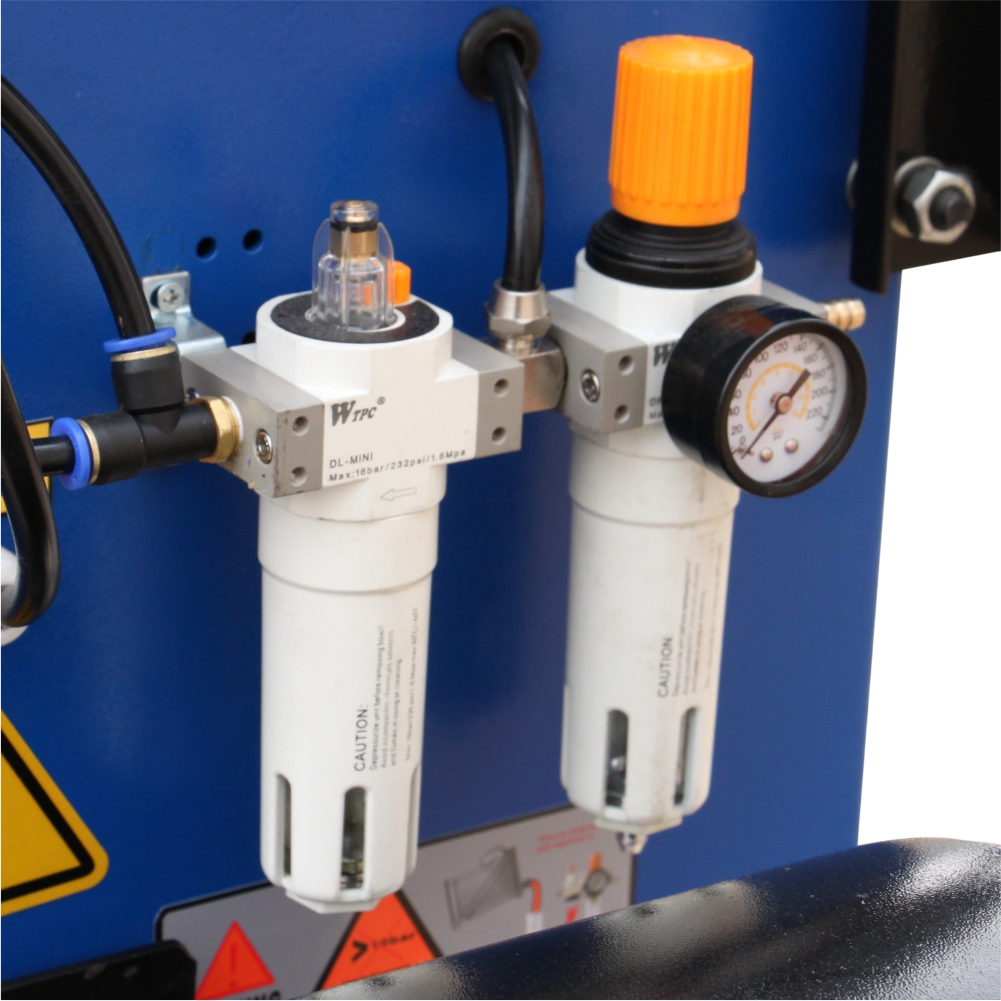

♦ Complete with lubrication filter and pressure regulator.
Technical Data Details Overall Dimension Optional parts

Rim Clamping Outside

12"~24"

Rim Clamping Inside

10"~22"

Max. Wheel Diameter

1040mm

Max. Wheel Width

3"~15"

Beadbreaking Force

2700kg

Operation Pressure

8~10 bar

Motor Power

1.0kW/1.5kW

Power Supply

380V/50Hz/3Ph

220V/50Hz/1Ph
