Metric |
American |
|
Lifting Capacity |
3000kg |
6600lbs |
|
Min. Height |
320mm |
12-5/8" |
|
Max. Lifting Height |
2140mm |
84-1/4" |
|

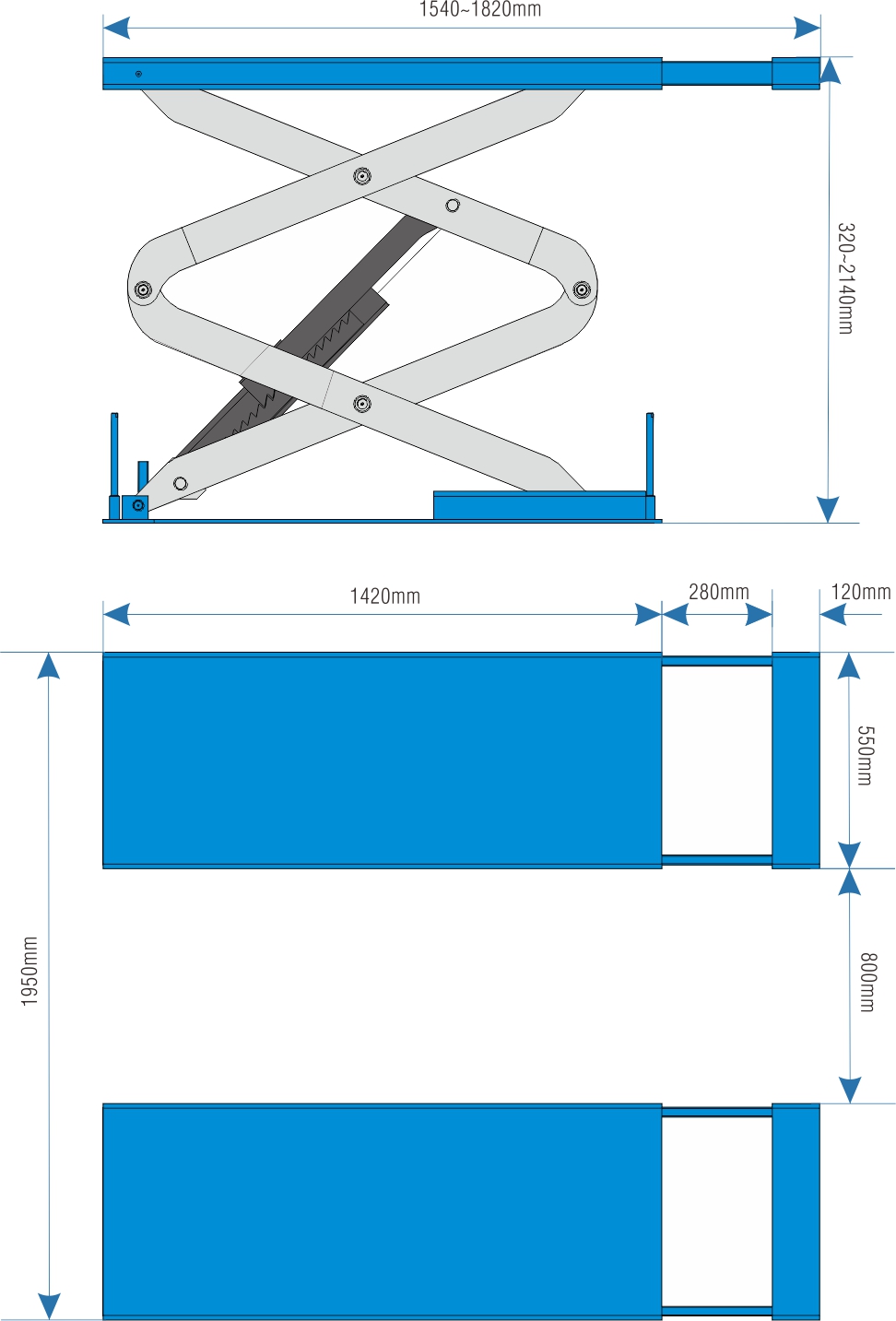

Platform Length |
1540mm~1820mm |
60-5/8"~71-5/8” |
|
Platform Width |
550mm |
21-5/8" |
|
Distance between Platforms |
800mm |
31-1/2" |
|
Air Supply |
6~8kg/cm² |
85~113.6 psi |
|
Lifting/Lowering Time |
55 Sec./45 Sec. |
55 Sec./45 Sec. |
|
Motor Power |
2.2kW |
2.2kW |
|
Power Supply |
220V/50Hz/1Ph 380V/50Hz/3Ph |
220V/60Hz/1Ph 110V/60Hz/1Ph |
