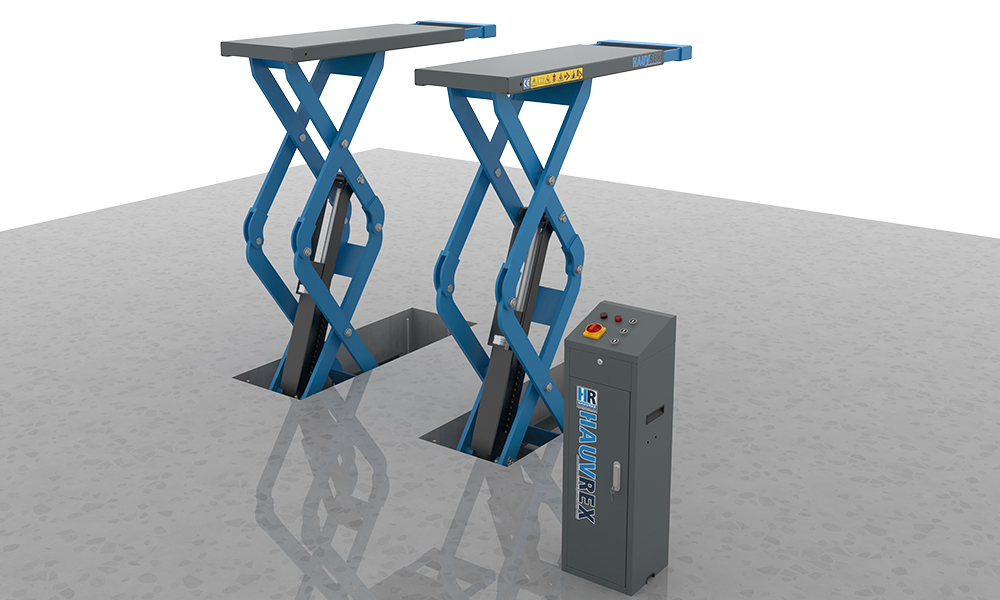

HXL6535 | Inground Scissor Lift

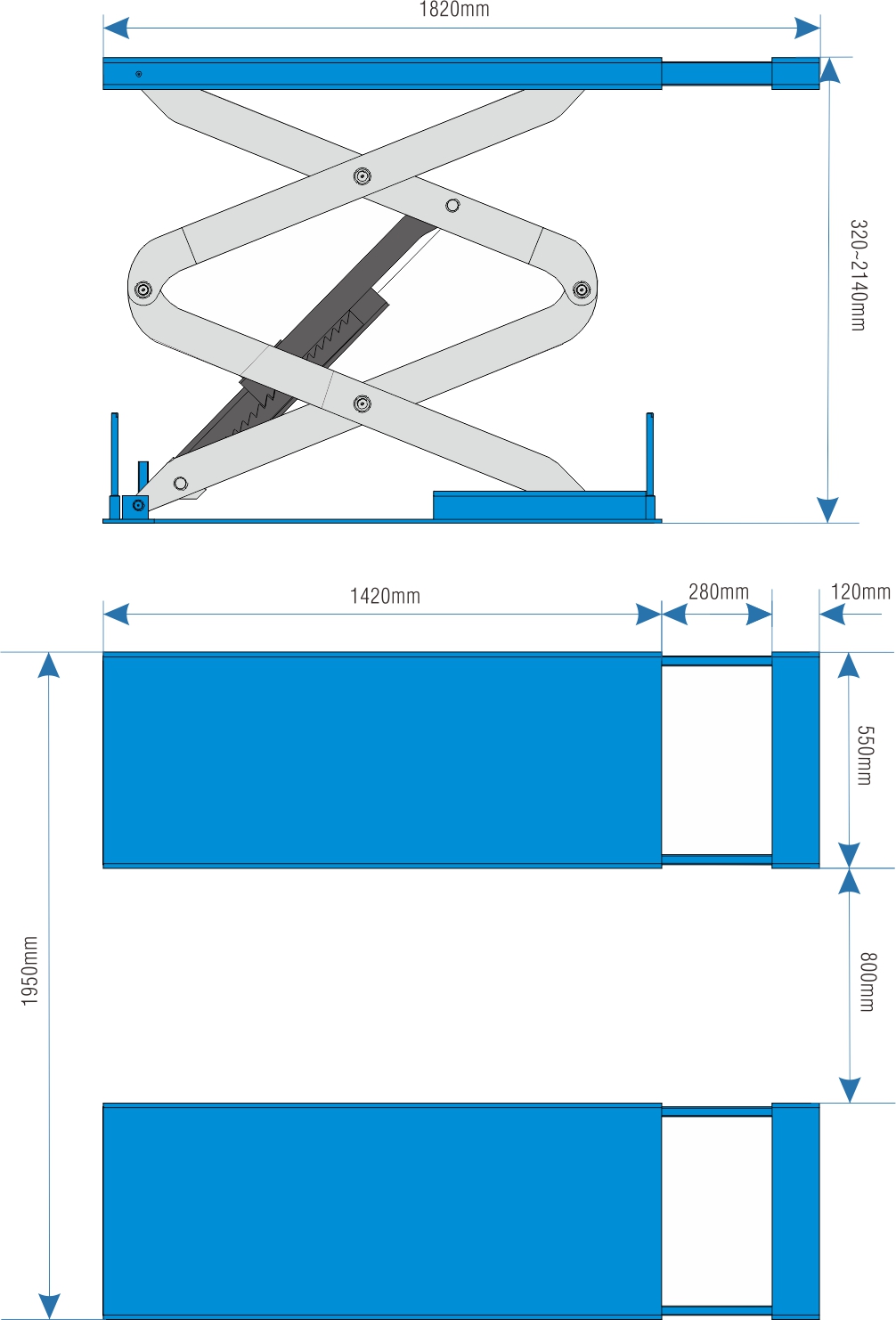

Technical Data Details Overall Dimension Optional parts

Metric

American

Lifting Capacity

3500kg

7700lbs

Min. Height

320mm

12-5/8"

Max. Lifting Height

2140mm

84-1/4"

Platform Length

1540mm~1820mm

60-5/8"~71-5/8”

Platform Width

550mm

21-5/8"

Distance between Platforms

800mm

31-1/2"

Air Supply

6~8kg/cm²

85~113.6 psi

Lifting/Lowering Time

55 Sec./45 Sec.

55 Sec./45 Sec.

Motor Power

2.2kW

2.2kW

Power Supply

220V/50Hz/1Ph

380V/50Hz/3Ph

220V/60Hz/1Ph

110V/60Hz/1Ph
