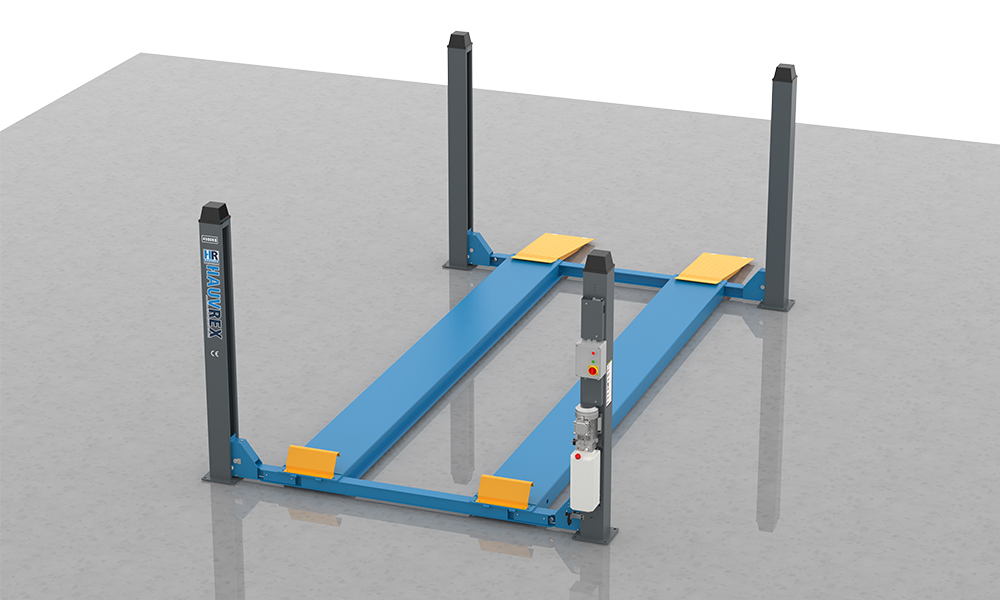

HFL4045/4055 | Four-post Platform Lift

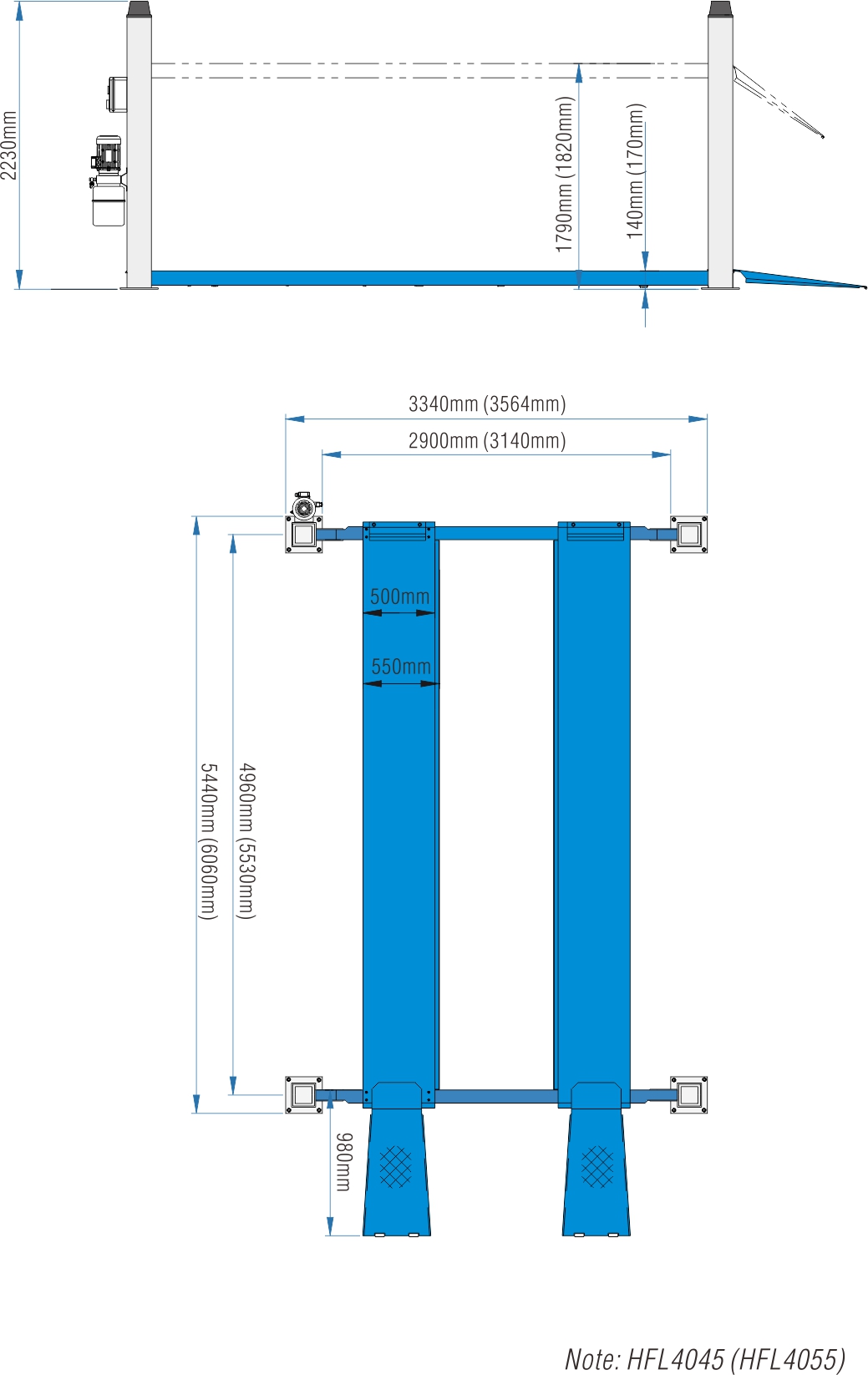

Technical Data Details Overall Dimension Optional parts



HFL4045/4055

America

Lifting Capacity

4500kg/5500kg

10000lbs/1200lbs

Min. Height

140mm/170mm

5-1/2"/6-11/16"

Max. Lifting Height

1790mm/1820mm

70-15/32"/71-21/32"

Overall Length

5440mm/6060mm

214-3/16”/238-19/32“

Overall Width

3320mm/3564mm

130-23/32"/140-5/16“

Overall Height

2230mm

87-25/32”

Runway Length

4960mm/5530mm

195-9/32"/217-23/32"

Runway Width

550mm

21-21/32"

Width between Posts

2860mm/3140mm

123-5/8"

Width between Platforms

800~1100mm

31-1/2"~43-5/16"

Lifting/Lowering Time

55 Sec./45 Sec.

55 Sec./45 Sec.

Motor Power

2.2kW/3.0kW

2.2kW/3.0kW

Power Supply

220V/50Hz/1Ph

380V/50Hz/3Ph

220V/60Hz/1Ph

110V/60Hz/1Ph
