HFL4140(S)E |
HFL4140(S)E |
|
Lifting Capacity |
4000kg |
9000lbs |
|
Min. Height |
220mm |
8-21/32" |
|
Max. Lifting Height |
1900mm |
74-13/16" |
|

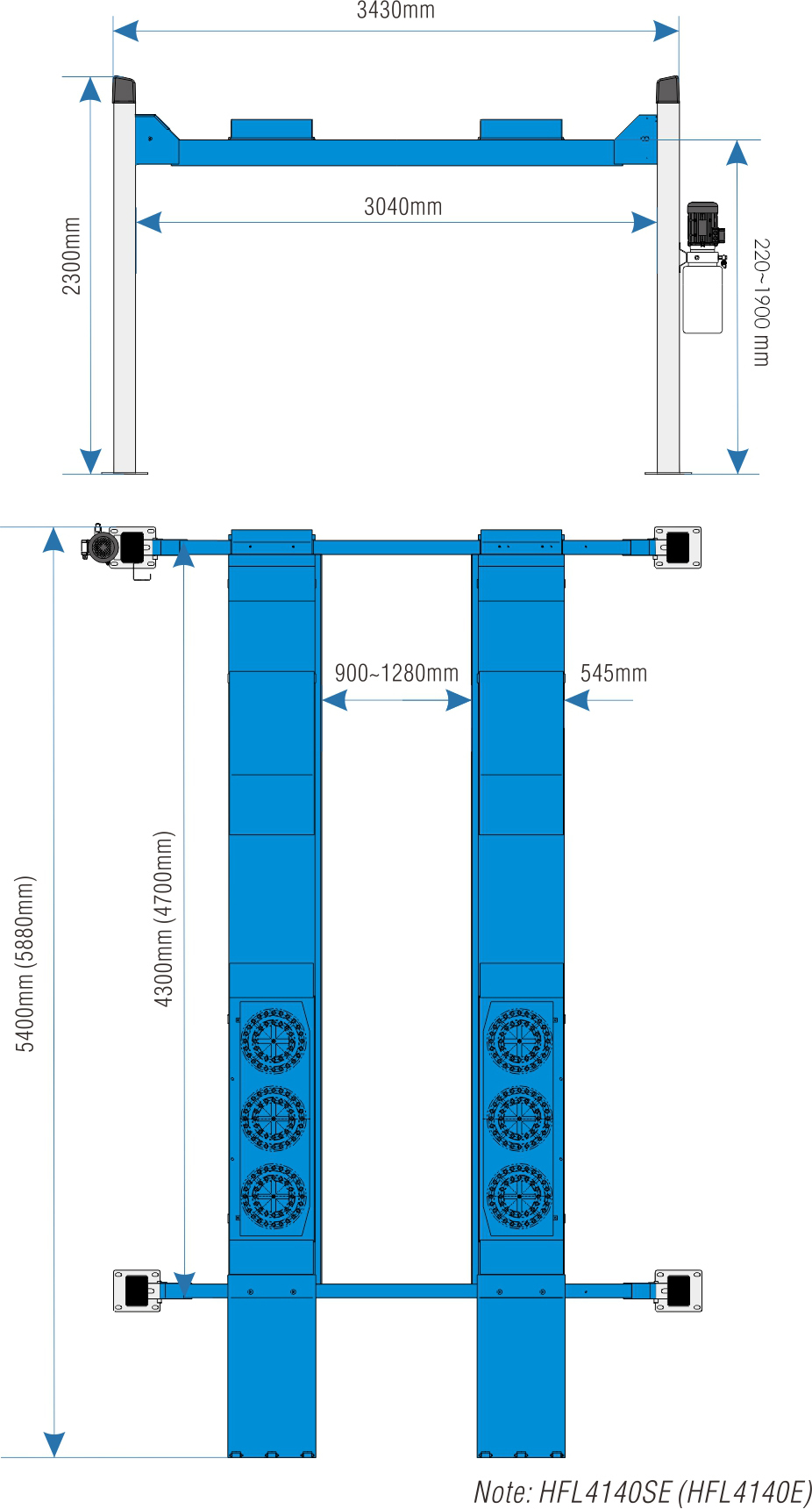

Overall Length |
(5400mm)5880mm |
(212-19/32")231-1/2" |
|
Overall Width |
3430mm |
135-1/32" |
|
Overall Height |
2300mm |
90-9/16" |
|
Runway Length |
(4300mm)4700mm |
(169-9/32")185-1/32" |
|
Runway Width |
545mm |
21-15/32" |
|
Width between Posts |
3040mm |
119-11/16" |
|
Width between Platforms |
900~1280mm |
35-7/16"~50-13/16" |
|
Lifting/Lowering Time |
55 Sec./45 Sec. |
55 Sec./45 Sec. |
|
Motor Power |
2.2kW |
2.2kW |
|
Power Supply |
220V/50Hz/1Ph 380V/50Hz/3Ph |
220V/60Hz/1Ph 110V/60Hz/1Ph |
