HFL4340X 4-post lift |

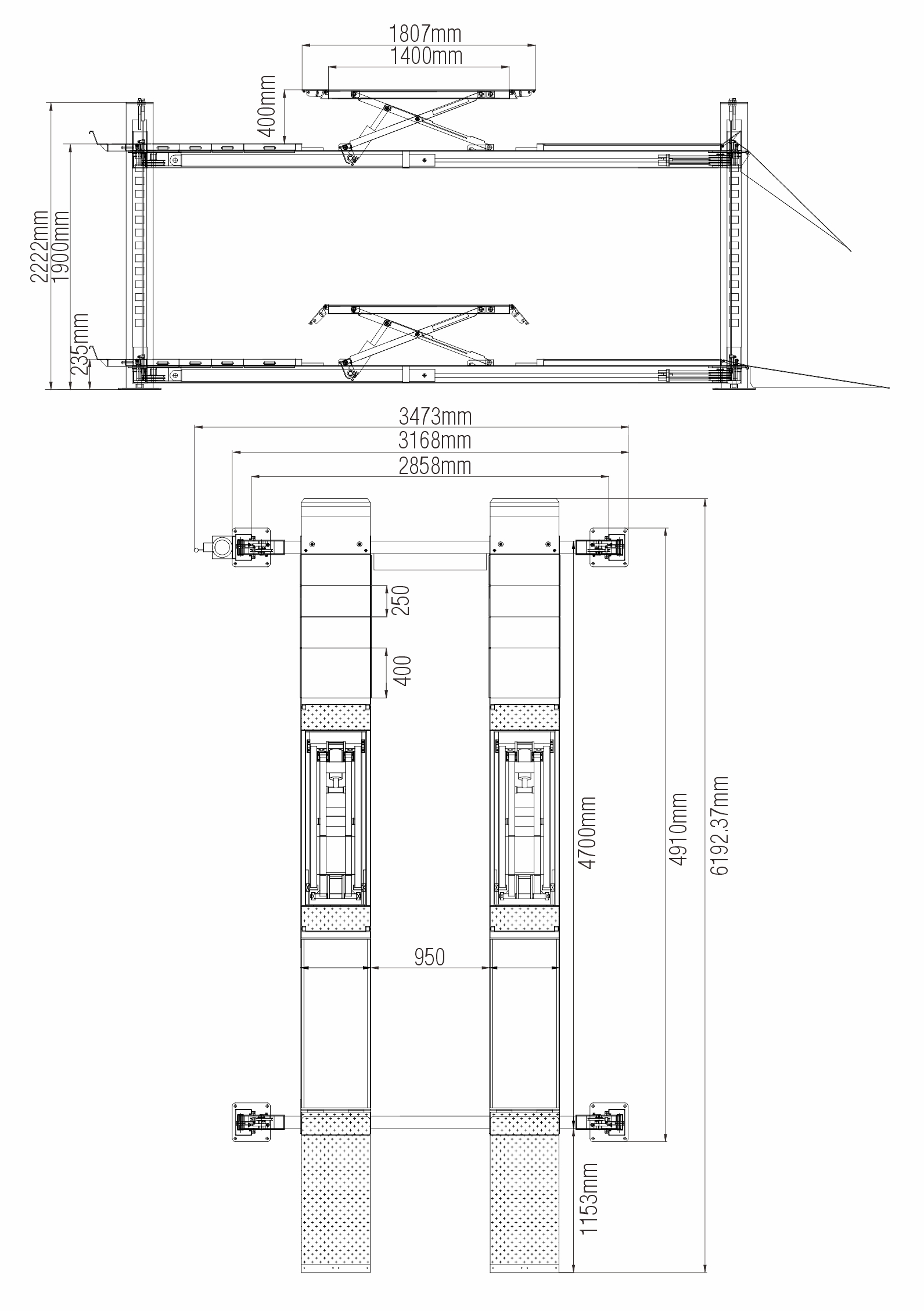

Technical Data Details Overall Dimension Optional parts



HFL4340X

America

Lifting Capacity

4000kg

9000lbs

Min. Height

197mm

7-3/4"

Max. Lifting Height

1,847mm

72-3/4"

Overall Length

5,360mm

211"

Overall Width

3,289mm

129-1/2"

Overall Height

2,222mm

87-1/2"

Runway Length

4,200mm

165-3/8"

Runway Width

560mm

220"

Width between Posts

2,412mm

95"

Width between Platforms

948mm

37-5/16"

Lifting/Lowering Time

50 Sec./35 Sec.

50 Sec./35 Sec.

Motor Power

2.2kW

2.2kW

Power Supply

220V/50Hz/1Ph

380V/50Hz/3Ph

220V/60Hz/3Ph

110V/60Hz/1Ph
