HW9910 | LCD Truck Wheel Balancer
HW9910 | Truck Wheel Balancer
  • Designed for truck wheels, bus wheels and tractor wheels.
  • Automatic measuring of wheel diameter and distance.
  • Various programs selectable Static, Alu1, Alu2, Alu3 etc.

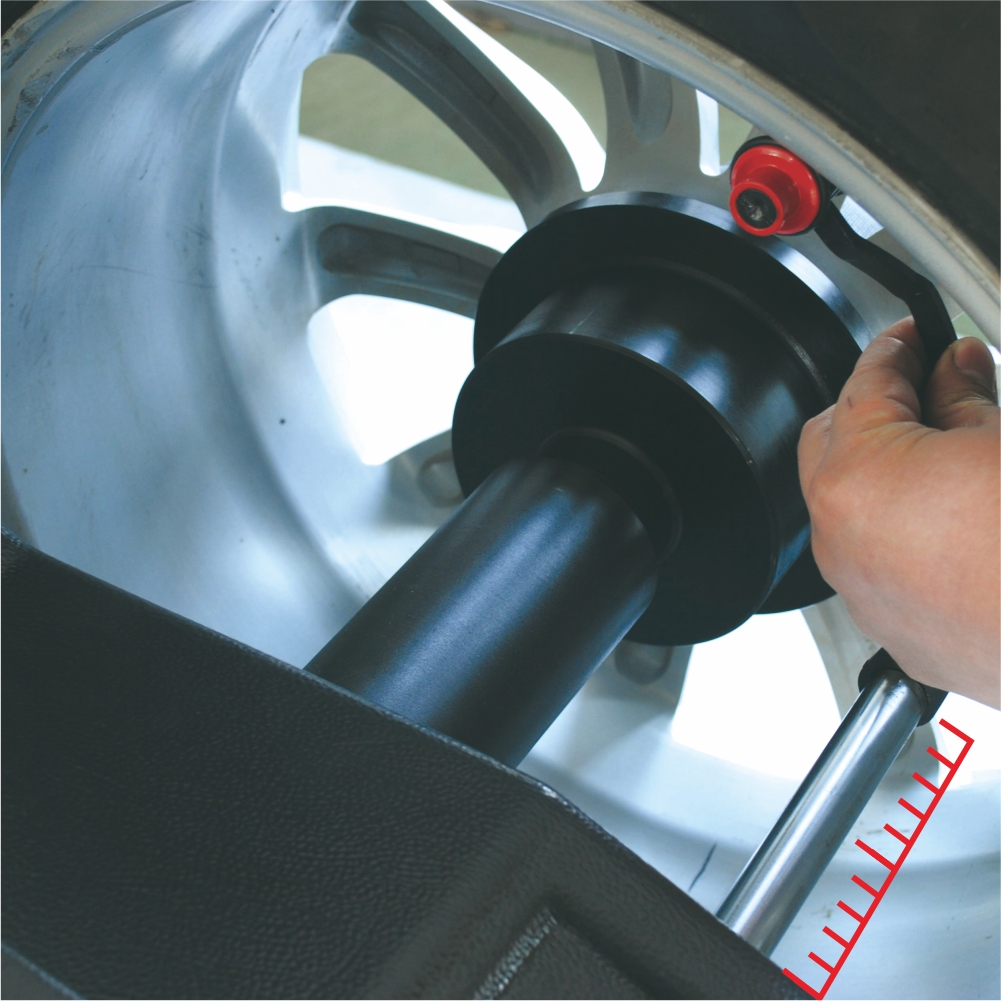

  • Precise Alu-alloy distance gauge with weight holder ensures more accurate measurement.
  • Unit system selection: inch/millimeter, gram/ounce.
  • Unbalance value can be chosen by selecting 5g or 50g.
  • Integrated calibrate and self-diagnostic program.

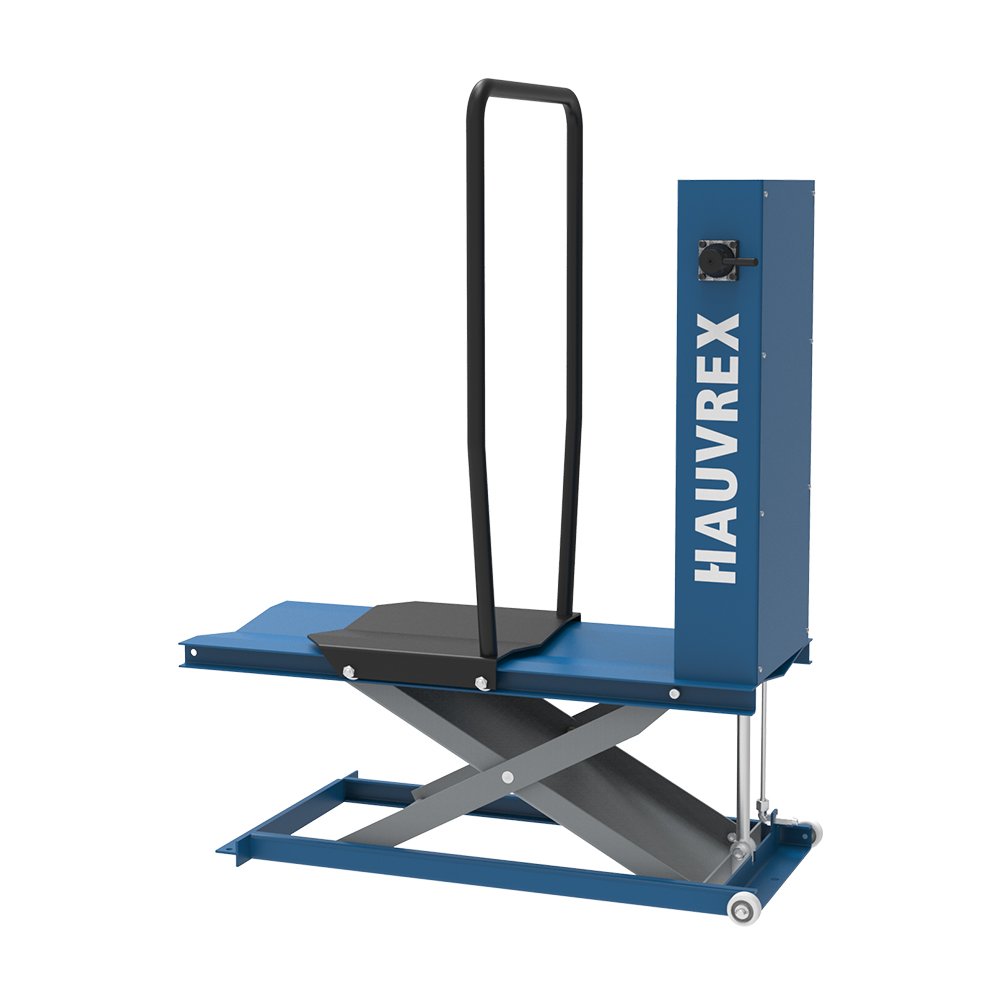

  • Pneumatic tire lifting platform can mount tyre conviniently and balance various big tires easily.
  • With steel supported at the bottom and ensure the stable of the cabinet.

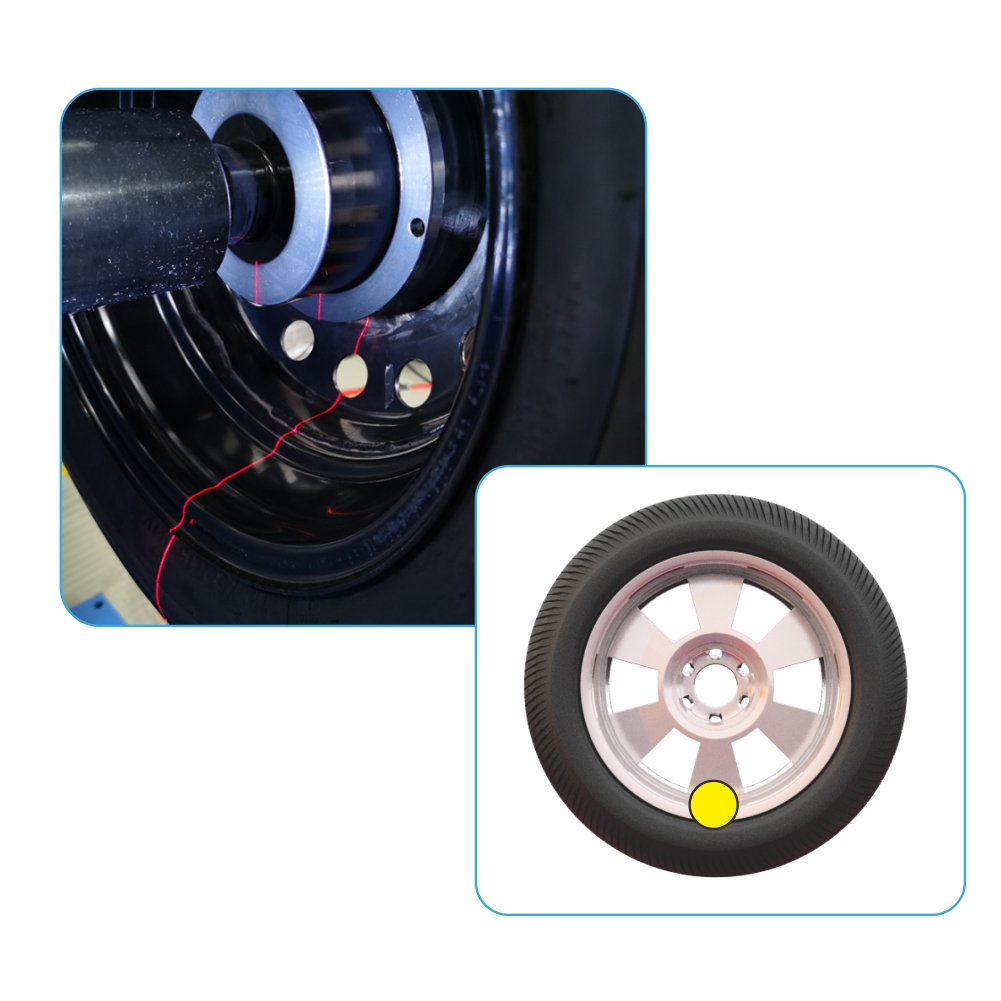

  • The adhesive weights can be positioned extremely rapidly using the laser pointer at 6 o'clock.
  • Auto or manual start when hood is lowered.
Technical Data Details Overall Dimension Optional parts

Rim Diameter

10"~26"

Rim Width

1.5"~20"

Max. Wheel Weight

150kg

Max. Wheel Diameter

1200mm

Balancing Accuracy

+/-10g

Rotation Speed

200rpm

Measuring Time

8 Sec.

Motor Power

0.55KW

Noise Level

<70 db

Power Supply

380V/50Hz/3Ph
