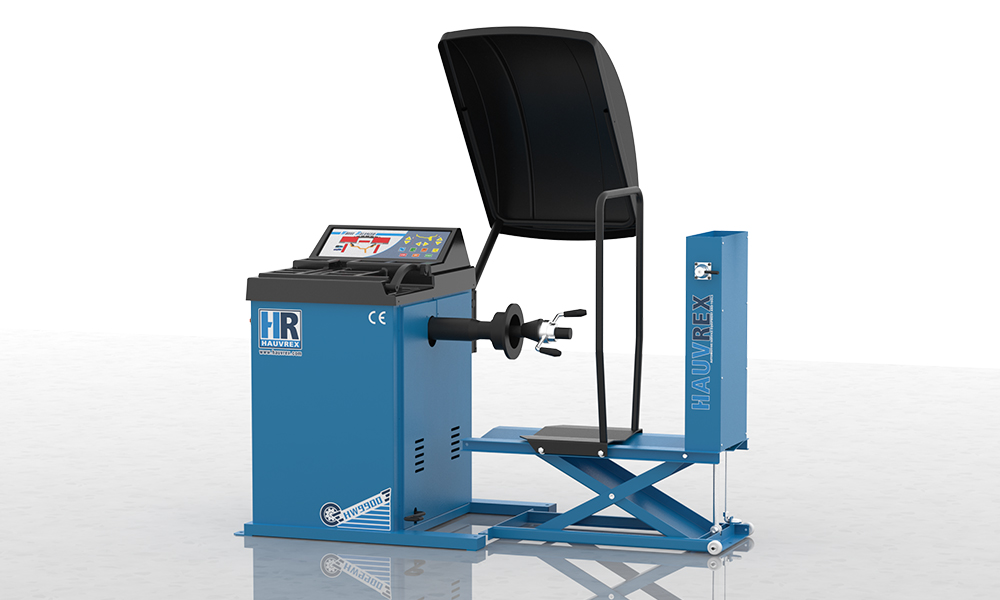

HW9900 | Truck Wheel Balancer

♦ Designed for truck wheels, bus wheels and tractor wheels.
♦ Manually-operated distance and wheel diameter input.
♦ 3 ALU functions and static balancing program.
♦ Equipped with pedal brake which ensures accurate weight placing.
♦ Unit system selection: inch/millimeter, gram/ounce.
♦ Unbalance value can be chosen by selecting 5g or 50g.
♦ Self-calibration and diagnosis.
♦ Pneumatic tire lifting platform can mount tyre conviniently and balance various big tires easily.
♦ With steel supported at the bottom and ensure the stable of the cabinet.

Technical Data Details Overall Dimension Optional parts

Rim Diameter

10"~26"

Rim Width

1.5"~20"

Max. Wheel Weight

150kg

Max. Wheel Diameter

1200mm

Balancing Accuracy

+/-10g

Rotation Speed

<200rpm

Measuring Time

<8 Sec.

Motor Power

550W

Noise Level

<70 db

Power Supply

220V/50Hz/1Ph
