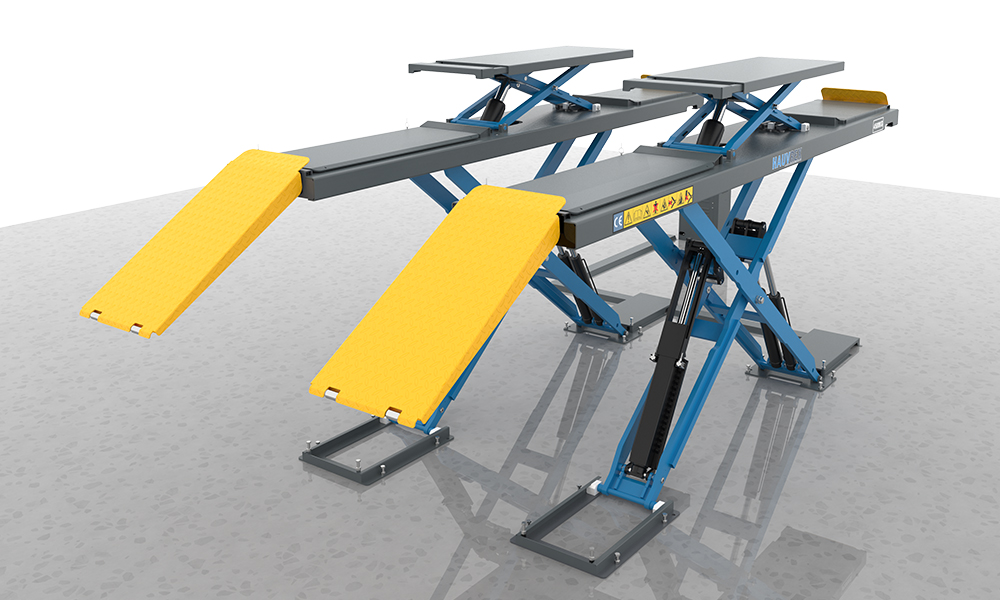

Model |
HXL6945WX |
HXL6955WX |
|
Main Lift |
||
|
Lifting Capacity |
4500kg |
5500kg |
|
Max. Lifting Height |
1880mm |
1880mm |
|
Min. Height |
180mm |
180mm |
|
Platform Length |
4316mm |
5000mm |
|
Platform Width |
680mm |
680mm |
|
Distance between Platforms |
900mm |
900mm |
|
Wheel Free Lift |
||
|
Lifting Capacity |
3000kg |
3000kg |
|
Max. Lifting Height |
400mm |
400mm |
|
Platform Length |
1650~2000mm |
1650~2000mm |
|
Power Supply |
220V/50Hz/1Ph 380V/50Hz/3Ph |
220V/50Hz/1Ph 380V/50Hz/3Ph |
|
Air Supply |
6-8kg/m³ |
6-8kg/m³ |
|
Lifting/Lowering Time |
Less than 60S |
Less than 60S |
|
Motor Power |
2.2kW |
3.0kW |
