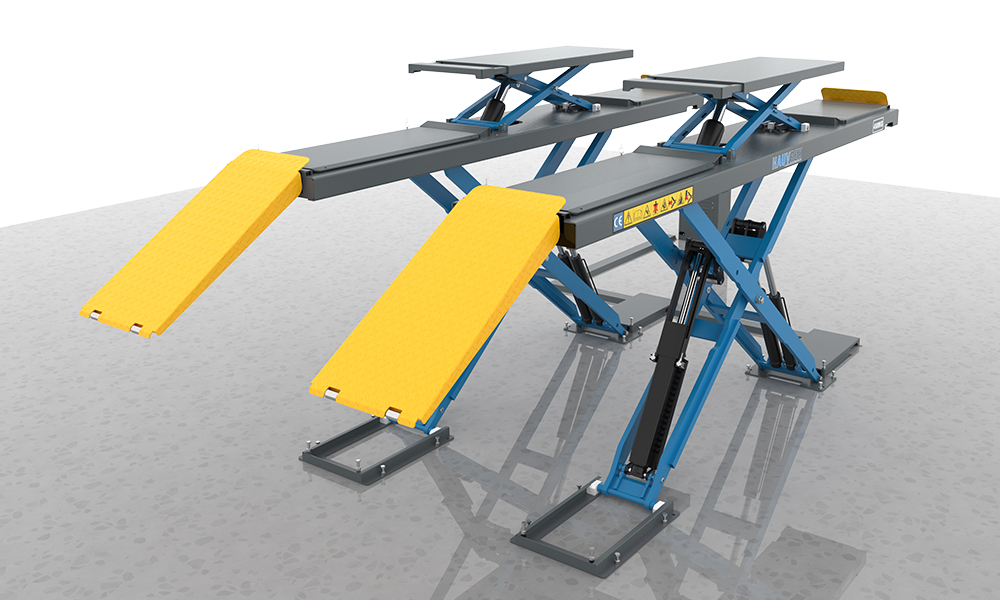

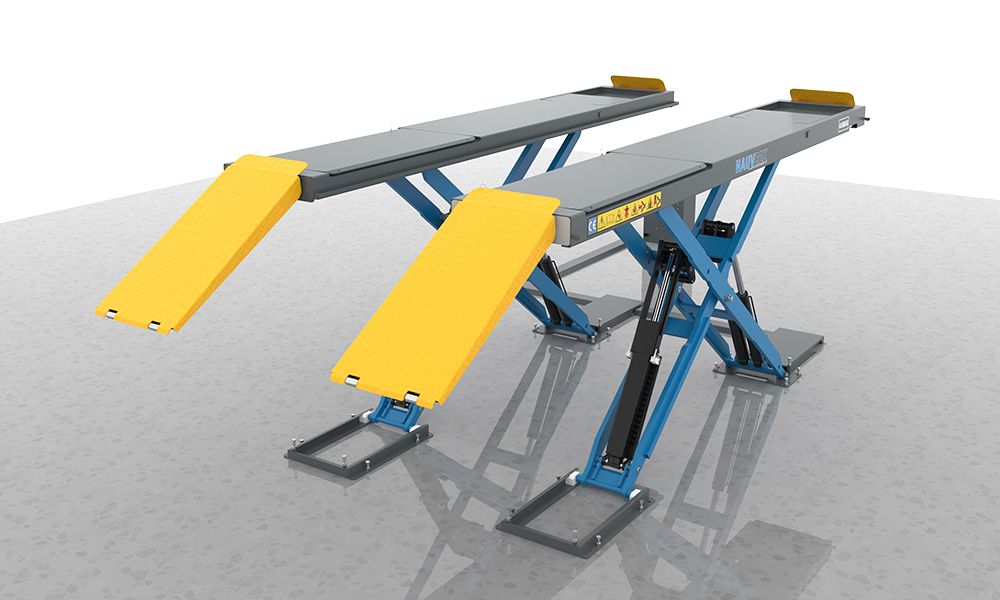

HXL6945 | Low-profile Alignment Scissor Lift

 ♦ No cross rails or torsion bars between lifting platforms (for maximum accessibility in the working area).

  ♦ Audible alarm during the final lowering phase.
  ♦ All pivot points made with self lubricating bushings for long life.
  ♦ Mechanical locking device with automatic engagement and pneumatic release, ensuring maximum safety when lift is in standing position.
  ♦ Hydraulic leveling system by means of a synchronization device assures constantly level lifting platforms regardless of weight distribution.
  ♦ Built-in wheel free lift with adjustable extensions to optimise vehicle loading.
  ♦ Wheel free lift allows a better access to vehicle underside and all operations requiring wheel free situations (e.g. change of tyres, brake and suspensions overhaul, etc…)
  ♦ Platforms for total wheel alignment, with front turning plates location and rear slip plates.
  ♦ Base plates with leveling system to ease installation.

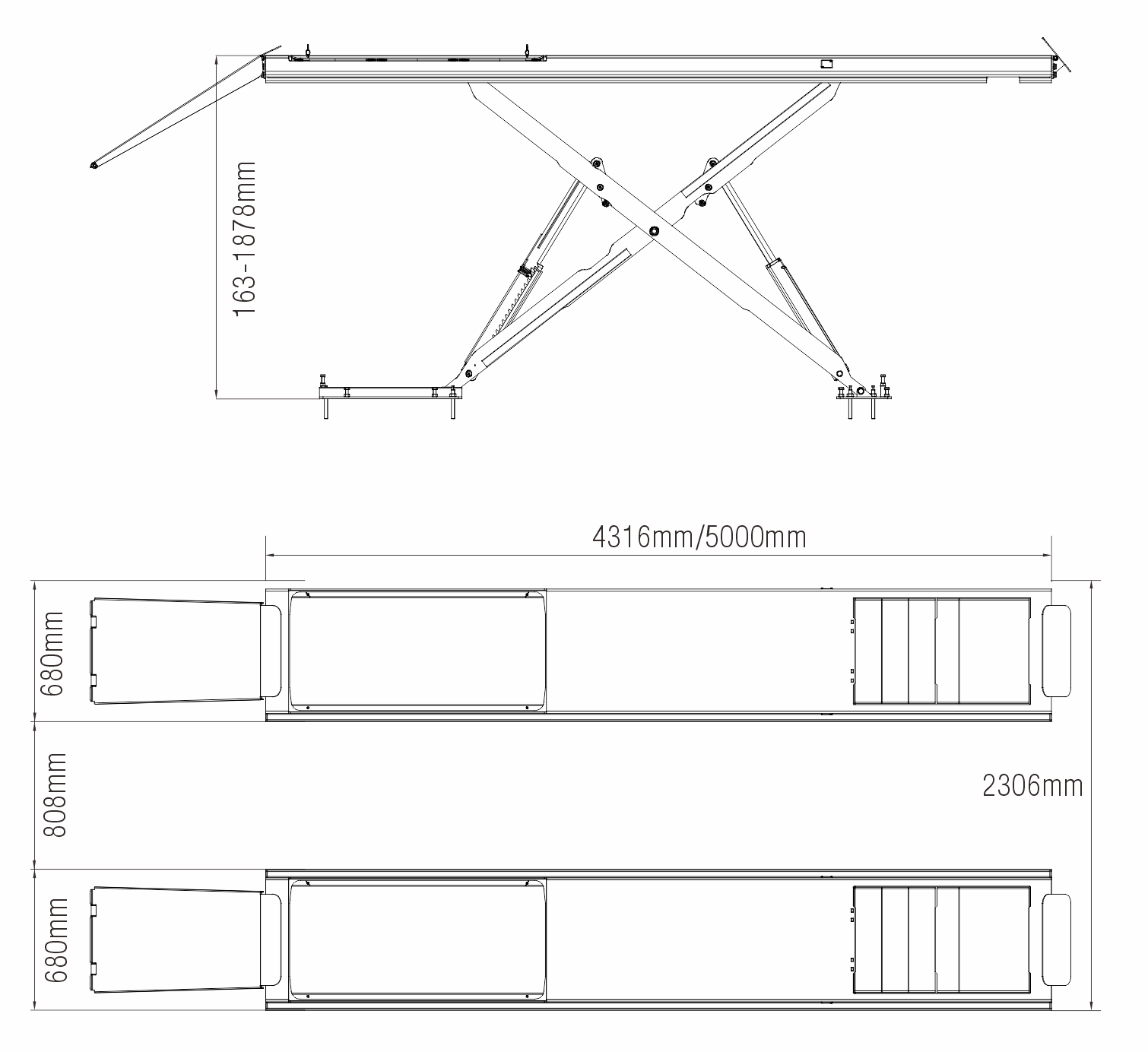

Technical Data Details Overall Dimension Optional parts

Model

HXL6945.P

HXL6945.W

HXL6945.WX

Main Lift

Lifting Capacity

4,500kg

4,500kg

4,500kg

Max. Lifting Height (A)

1,820mm

1,866mm

1,880mm

Min. Height (B)

134mm

166mm

180mm

Platform Length (C)

4,316mm

4,316mm

4,316mm

Platform Width (D)

680mm

680mm

680mm

Width between Platforms (E)

900mm

900mm

900mm

Overall Length (F)

5,200mm

5,200mm

5,200mm

Overall Width (G)

2,260mm

2,260mm

2,260mm

Wheel Free Lift

Lifting Capacity

-

-

3,000kg

Max. Lifting Height (H)

-

-

400mm

Platform Length (I)

-

-

1,650-2,000mm

Motor Power

2.2kW

2.2kW

2.2kW

Power Supply

220V/380V

220V/380V

220V/380V

Air Supply

6-8Bar

6-8Bar

6-8Bar

Lifting Time

Less Than 60S

Less than 60S

Less than 60S

Lowering Time

20-60S

20-60S

20-60S
