HC8950 | Для грузовиков

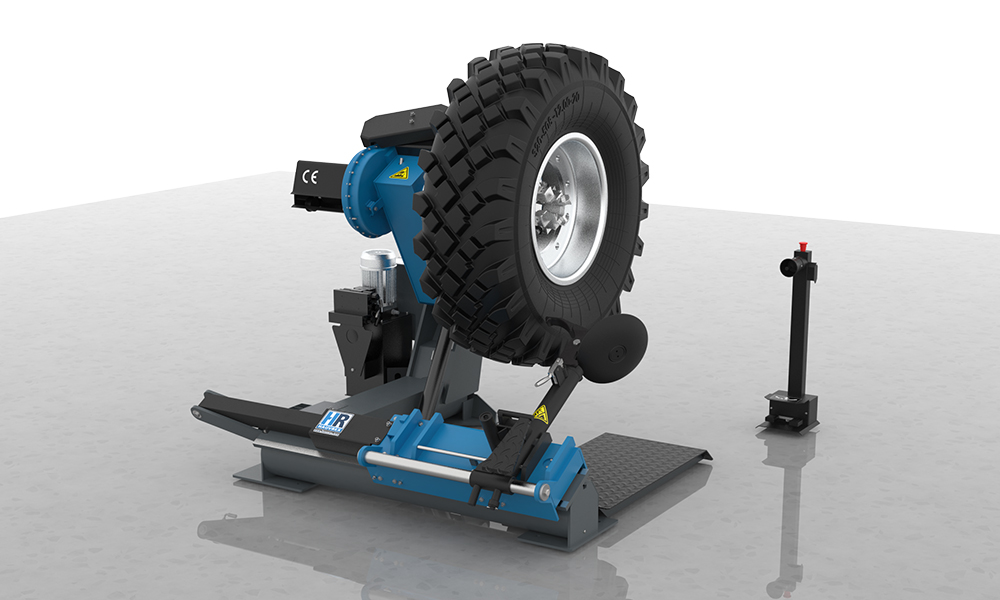

♦ Electro-hydraulic, universal and automatic tyre changer for truck, bus, tractor, agricultural and earth moving equipment tyres from 14" to 56".
♦ Super-duty electric motor and hydraulic drive for superior torque and wheel holding power.
♦ Simple controls and positionable unit console lets the operator safely monitor the tire-changing process from the most advantageous angle.
♦ Hydraulically operated universal self-centering chuck clamps rims from 14" to 56" either on the inside or through the center hole ensures clamping of virtually all rims and off-load style wheels.
♦ Hydraulic sled carriage for positioning, bead loosening, mounting and demounting procedures.
♦ Simultaneous movement of chuck carrier and tool holding arm speeds up true handling time.
♦ Manual controlled tool rotation.
♦ The clamping chuck rotates in both direction and at two different speeds.
♦ With pressure gauge for monitoring the hydraulic pressure.
технические данные подробности общий размер факультативных частей

Диаметр диска

14"~46"

Макс. ширина колеса

1065 mm

Макс. диаметр колеса

2,300 mm

Макс. вес колеса

1,500 кг

Усилие отрыва борта шины

3,500 кг

Рабочее давление воздуха

130 бар

Потребляемая мощность

1.5 кВт

Электропитание

380В/50Гц/3ф.

220В/50Гц/1ф.
