HC8970 |

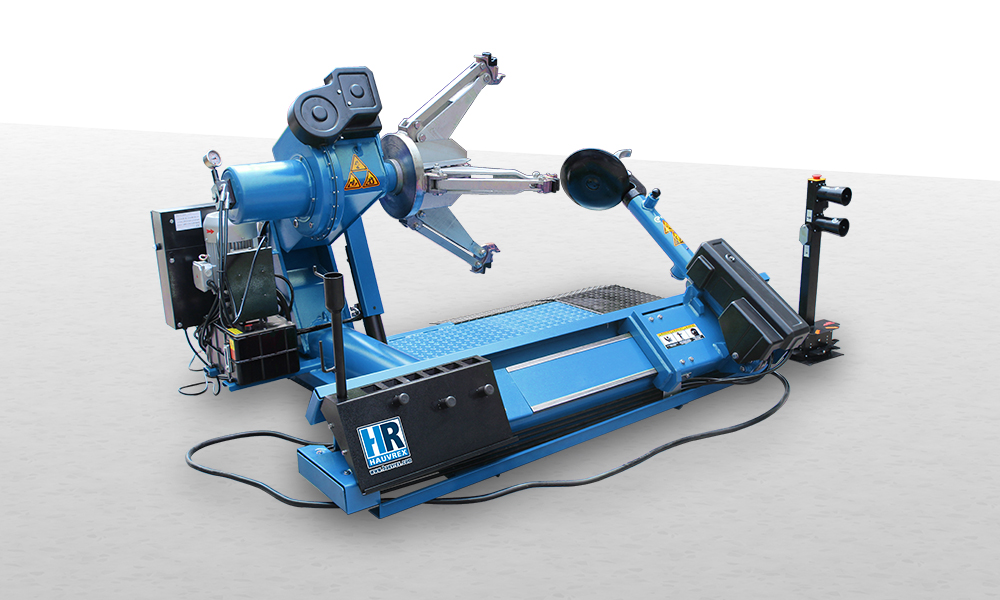

♦ Electro-hydraulic, universal and automatic tyre changer for truck, bus, tractor, agricultural and earth moving equipment tyres from 14" to 56".
♦ Super-duty electric motor and hydraulic drive for superior torque and wheel holding power.
♦ Simple controls and positionable unit console lets the operator safely monitor the tire-changing process from the most advantageous angle.
♦ Hydraulically operated universal self-centering chuck clamps rims from 14" to 56" either on the inside or through the center hole ensures clamping of virtually all rims and off-load style wheels.
♦ Hydraulic sled carriage for positioning, bead loosening, mounting and demounting procedures.
♦ Simultaneous movement of chuck carrier and tool holding arm speeds up true handling time.
♦ Automatically controlled tool rotation makes it possible to use either the demount/mount head or the bead breaking roller without time consumingand laborious manual tool changing.
♦ The action of the tool holding arm to the “no work” position and the traverse from one side of the wheel to the other is fully automated.
♦ The clamping chuck rotates in both direction and at two different speeds.
♦ With pressure gauge for monitoring the hydraulic pressure.
технические данные подробности общий размер факультативных частей

Диаметр диска

14"~56"

Макс. ширина колеса

1200 mm

Макс. диаметр колеса

2500 mm

Макс. вес колеса

2000 кг

Усилие отрыва борта шины

2700 кг

Рабочее давление воздуха

130 бар

Потребляемая мощность

2.4 кВт /3.0 кВт

Электропитание

380В/50Гц/3ф.

220В/50Гц/1ф.
