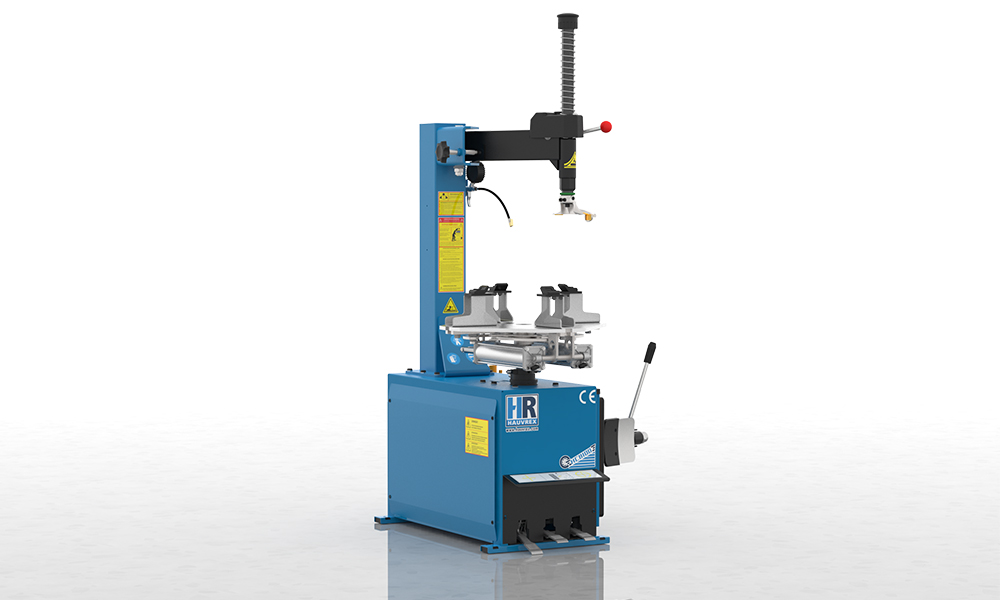

HC8100 | Motorcycle Tire Changer
♦ Specially designed for tires of two and four wheel motorcycle, scooters and ATV’s.
♦ Swing horizontal arm with Ø36mm hexagon shaft.
♦ Mechanical locking and vertical adjustment of mounting arm.
♦ Special tool head designed specially for easy mounting and dismounting of motorcycle tires of all sizes.
♦ Interchangeable plastic inserts on tool head protect rims from damage.
♦ Self-centering four-jaws with double pneumatic cylinder for secure clamping of all rim types.
♦ Powerful clamping cylinders provide uniform clamping pressure.
♦ Clockwise and anticlockwise rotation of the turntable through electric motor.
♦ The pedal assembly can be removed allowing easy servicing.
♦ Inflation gun with pressure gauge unit and pressure release button.
♦ The shape of the bead breaker blade will easily break the bead of small, narrow and standard motorcycle tires.
Technical Data Details Overall Dimension Optional parts

Outer Rim Clamping

9"~18"

Inner Rim Clamping

8"~17"

Max. Wheel Diameter

960mm

Max. Wheel Width

3"~15"

Beadbreaking Force

2700kg

Operation Pressure

8~10 bar

Motor Power

0.75kW/1.1kW

Power Supply

380V/50Hz/3Ph

220V/50Hz/1Ph
