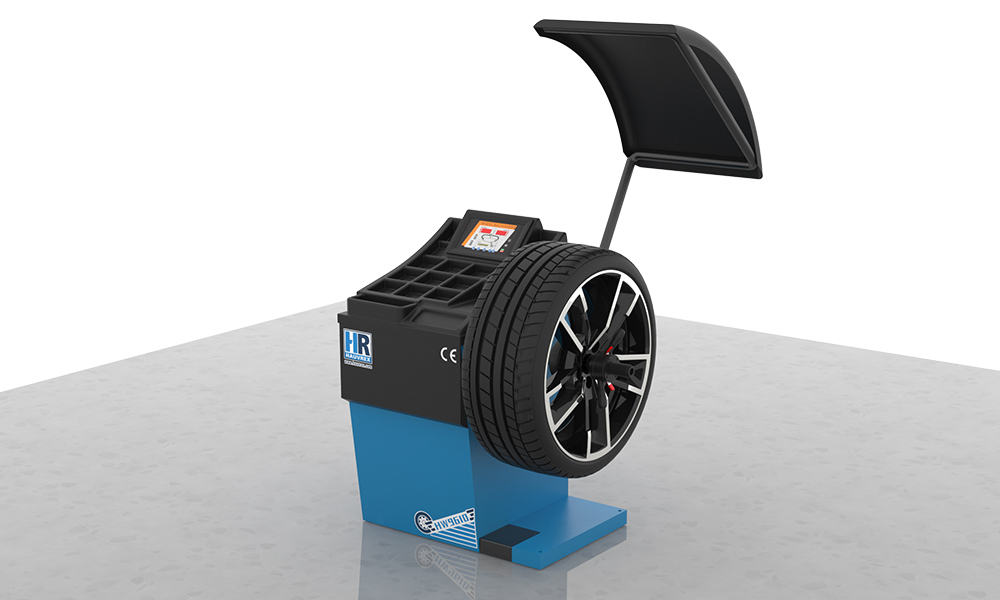

HW9610/HW9620/HW9630 | Wheel Balancer
♦ Optimized automatically bidirectional locating, locking and fixing point braking function, simple to use.
♦ Sonar rim width measuring gauge.
♦ Automatic measurement gauge for rim width and distance, forever precise digital gauge, no need to calibrate out of factory.
♦ Precise phase angle location, error less than +/- 1 and easy accurate laser marker.

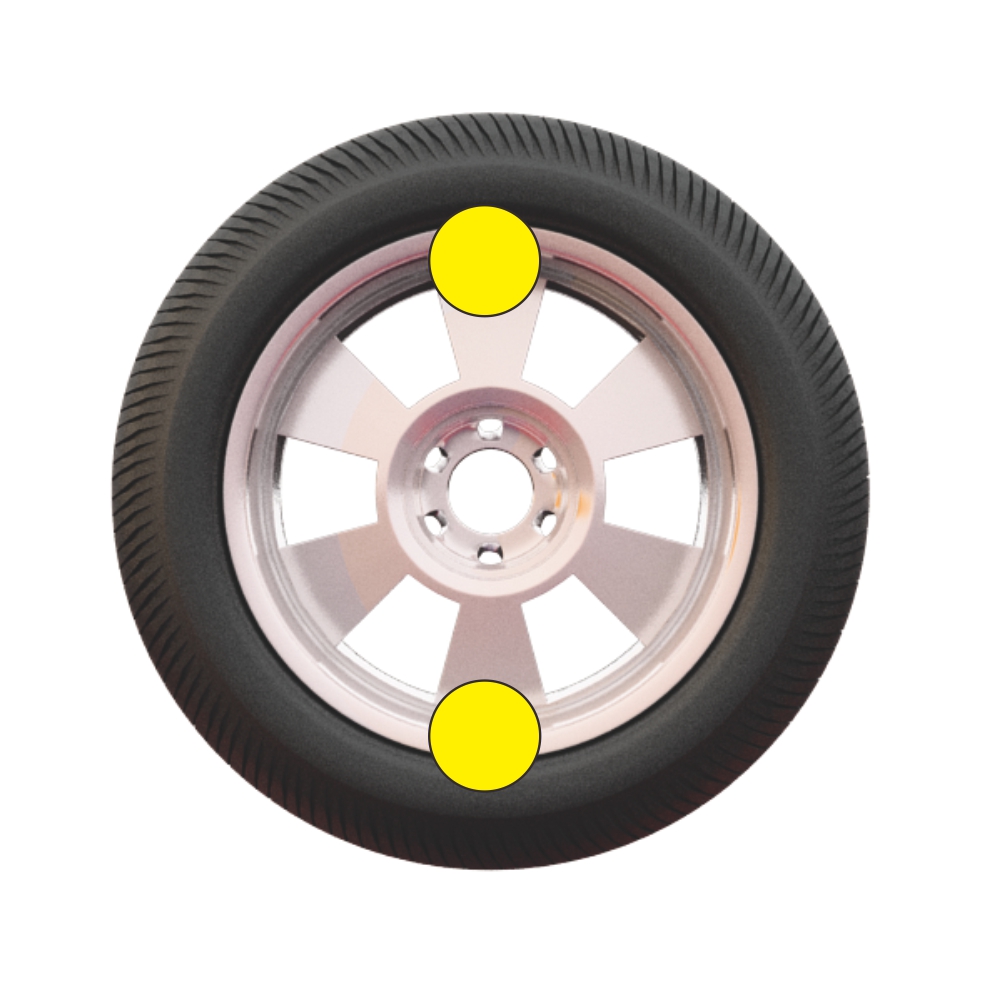

♦ According to the need, counterweight position and laser indicator can shift from 12 o’clock to 6 o’clock randomly, convenient to wash and stick inside wheel hub.
♦ Apply user-friendly ring-shaped LED light to measuring and attaching process.
Technical Data Details Overall Dimension Optional parts

Rim Diameter

10"~32"

Rim Width

1.5"~25"

Max. Wheel Weight

70kg

Max. Wheel Diameter

1000mm

Balancing Accuracy

+/-1g

Rotation Speed

<150rpm

Measuring Time

<6 Sec.

Motor Power

250W

Noise Level

<70 db

Power Supply

220V/50Hz/1Ph
