  • HSL1130

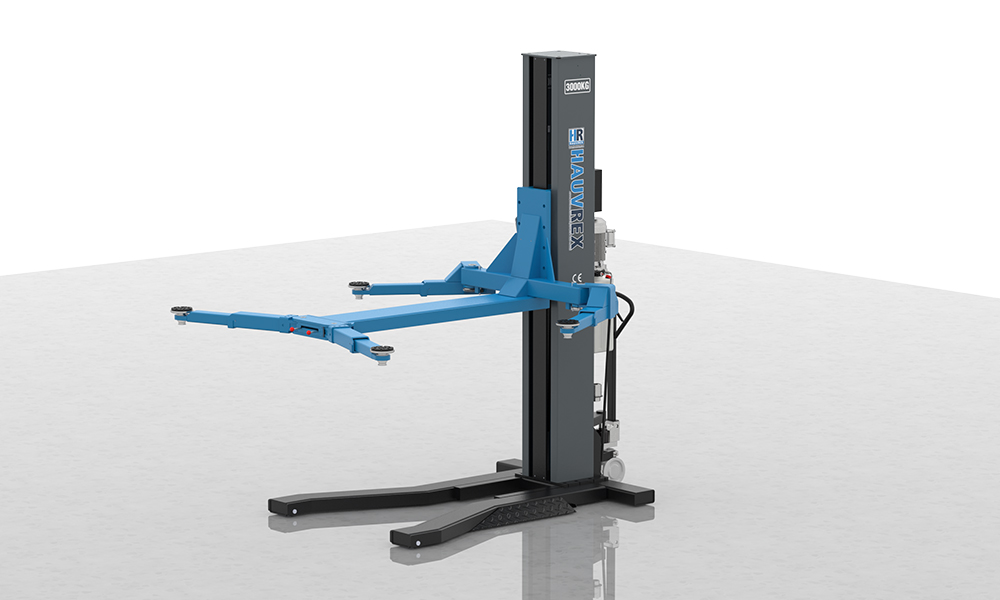

HSL1130 | Movable Single Post Lift
115% dynamic and 150% static loading test Mechanical safety latch with manual lock release
Relief valve to prevent overloading
Column cover
Up limit switch
Front arm lock device
Manual lock release lever
Rear sliding arm with threaded lifting pad
Front swing arm with threaded lifting pad
24V control box (optional)
Aluminum power pack (optional)
Moving trolley
Technical Data Details Overall Dimension Optional parts

Metric

American

Lifting Capacity

3000kg

6000lbs

Min. Height

57mm

2-1/4"

Max. Lifting Height

1,750mm

70-7/8"

Overall Height

2,826mm

102-3/8"

Overall Width

2,396mm

100"

Platform Width

350mm

13-3/4"

Platform Length

1,850mm

72-13/16"

Wdith between Platforms

360~800mm

14-3/16"~31-1/2"

Lifting/Lowering Time

35Sec./25Sec

35Sec./25Sec

Motor Power

2.2kW

2.2kW

Power Supply

220V/50Hz/1Ph

380V/50Hz/3Ph

220V/60Hz/3Ph
110V/50Hz/1Ph
