Metric

American

Lifting Capacity

4000kg

9000lbs

Min. Height

100mm

3-15/16"

Max. Lifting Height

1800mm

70-7/8"

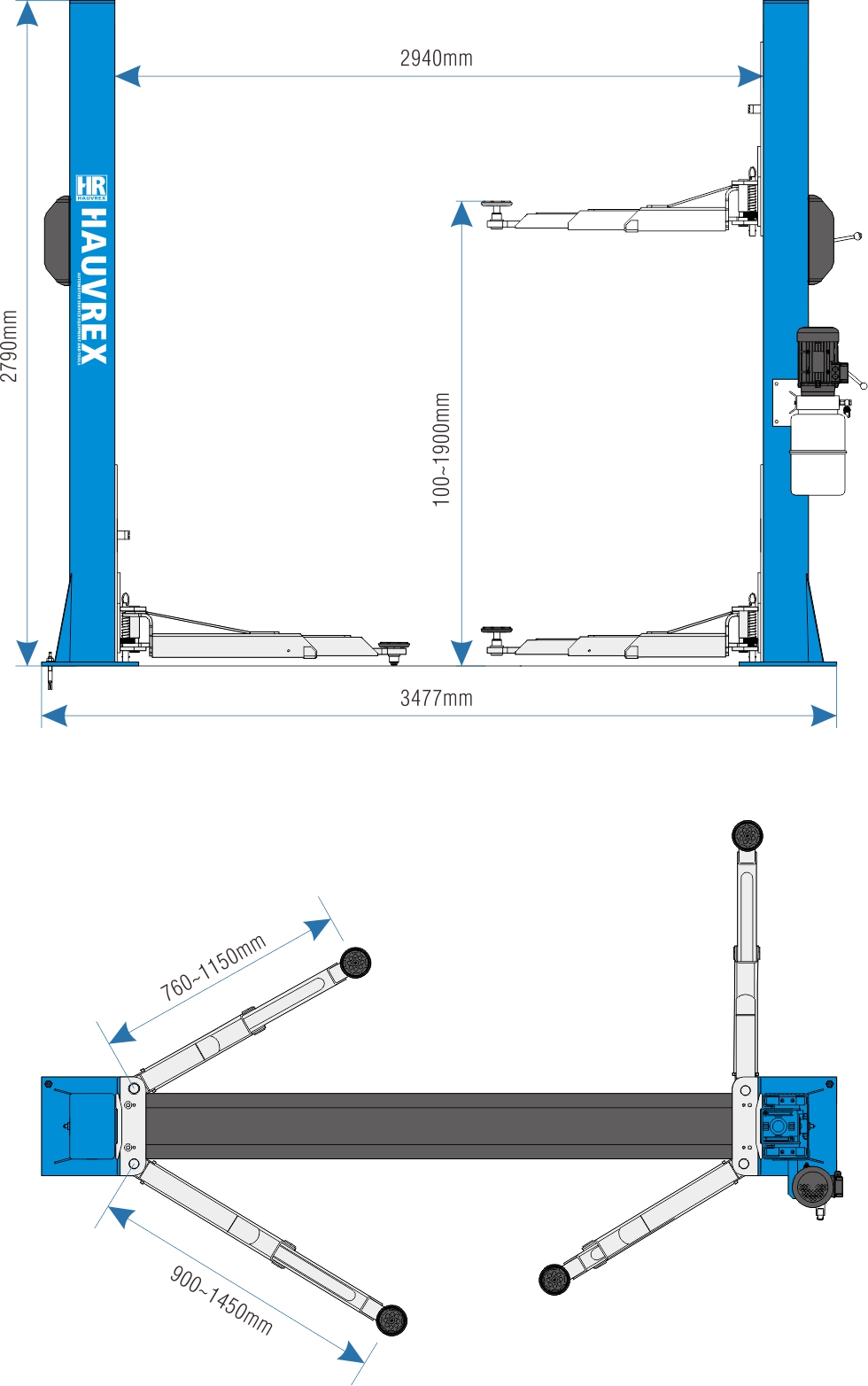

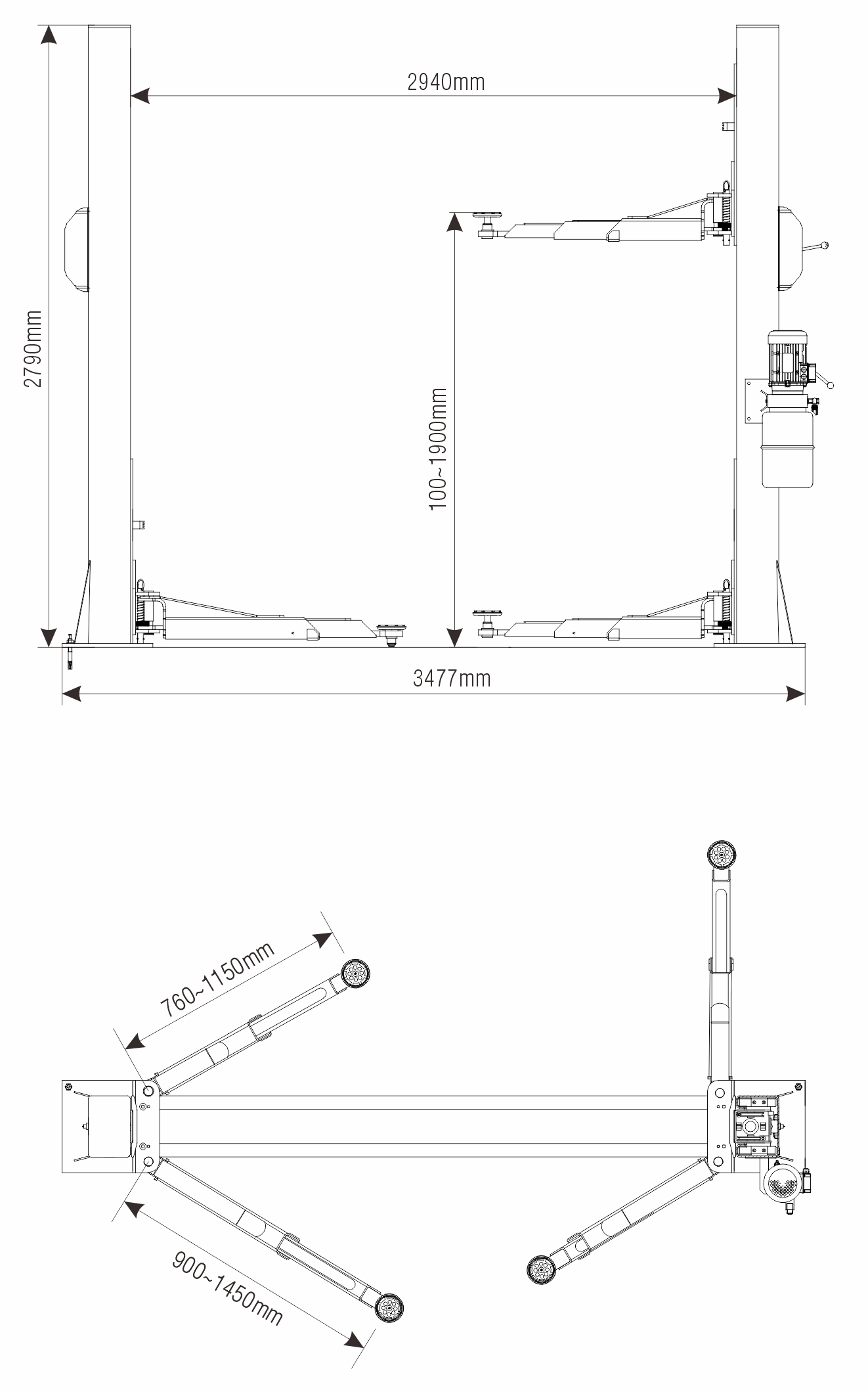

Overall Height

2790mm

109-27/32"

Overall Width

3477mm

136-29/32"

Width between Posts

2940mm

115-3/4"

Short Arm Length

760~1150mm

29-15/16"~45-9/32"

Long Arm Length

900~1450mm

35-7/16"~52-3/32"

Lifting/Lowering Time

55Sec./45Sec.

55Sec./45Sec.

Motor Power

2.2kW

2.2kW

Power Supply

220V/50Hz/1Ph

380V/50Hz/3Ph

220V/60Hz/1Ph

110V/60Hz/1Ph
