♦ Baseless lift, allows easy access into the working area.
|
|||
|

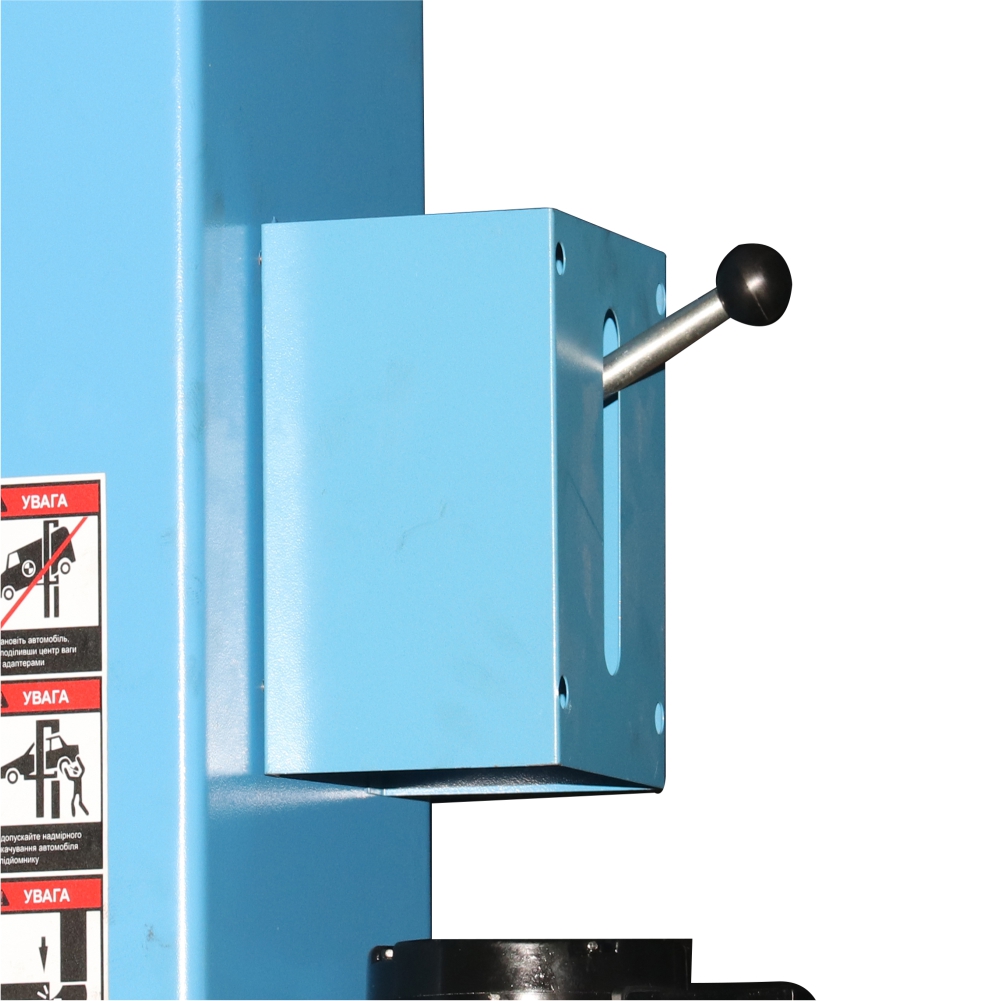

♦ Single-point mechanical lock release.
|
|||
|
♦ Two-stage elbow type arms and two-stage straight arms provide asymmetric lifting of vans and off-road vehicles.
|
|||
|
♦ Arms suitable for quick drop-in extensions and other lifting accessories.
|
|||
|
♦ Automatic arm locking during lifting and automatic unlocking when the arm reaches the floor.
|
|||
|
♦ Equipped with safety valve to prevent overloading and in case of hydraulic pipe fracture.
|
|||
|
♦ Self-controlled lowering speed.
|
|||
|
♦ Mechanical safety latch with automatic engagement ensuring maximum safety when lift is in standing position.
|
|||
|
♦ Overhead safety cut off.
|
|||
|
♦ Rubber door guards protect vehicle from door damage.
|
|
Metric |
American |
|
|
Lifting Capacity |
5000kg |
11000lbs |
|
Min. Height |
110mm |
4-11/32" |
|
Max. Lifting Height |
1900mm |
74-13/32" |
|
Overall Height |
4420mm |
174-1/32" |
|
Overall Width |
4150mm |
163-3/8" |
|
Width between Posts |
3260mm |
128-11/32" |
|
Lifting Arm Length (Symmetric) |
886~1800mm |
34-29/32"~70-7/8" |
|
Lifting/Lowering Time |
55 Sec./45 Sec. |
55 Sec./45 Sec. |
|

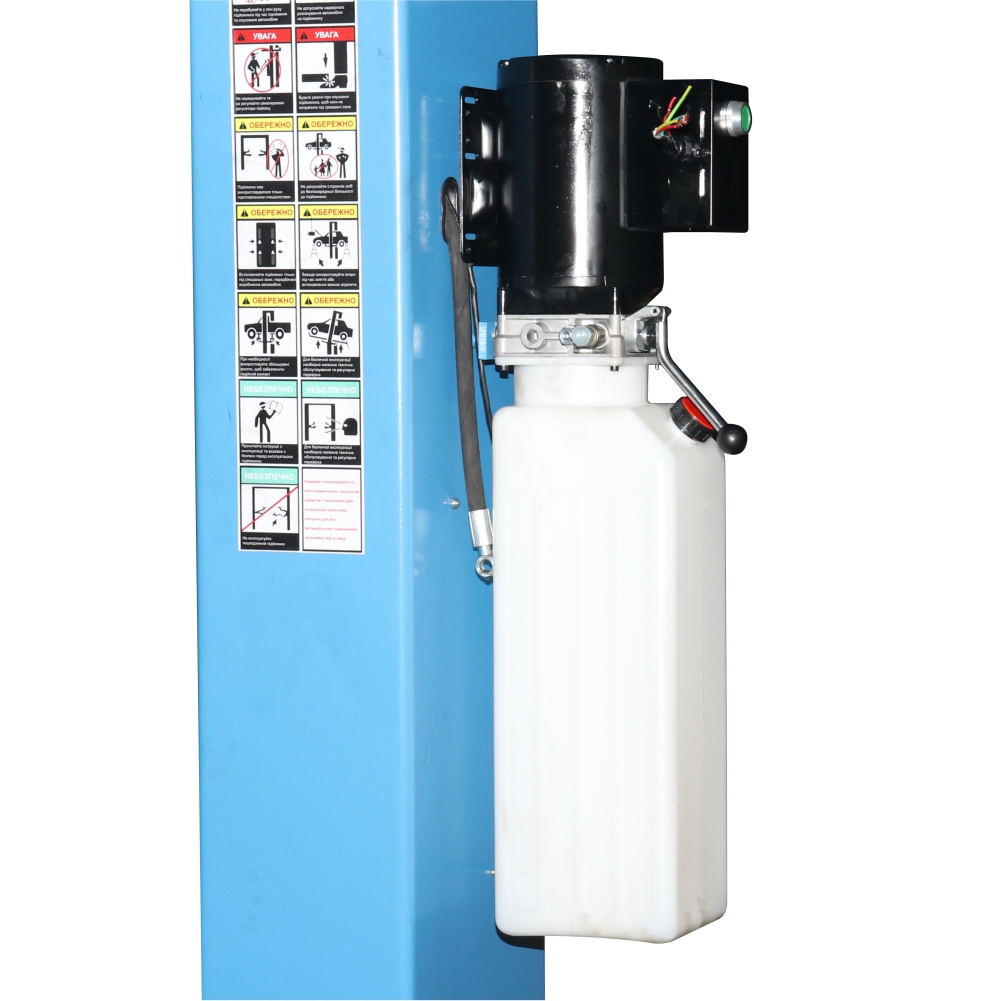

Motor Power |
3.0kW |
3.0kW |
|
Power Supply |
220V/50Hz/1Ph 380V/50Hz/3Ph |
220V/60Hz/1Ph 110V/60Hz/1Ph |
