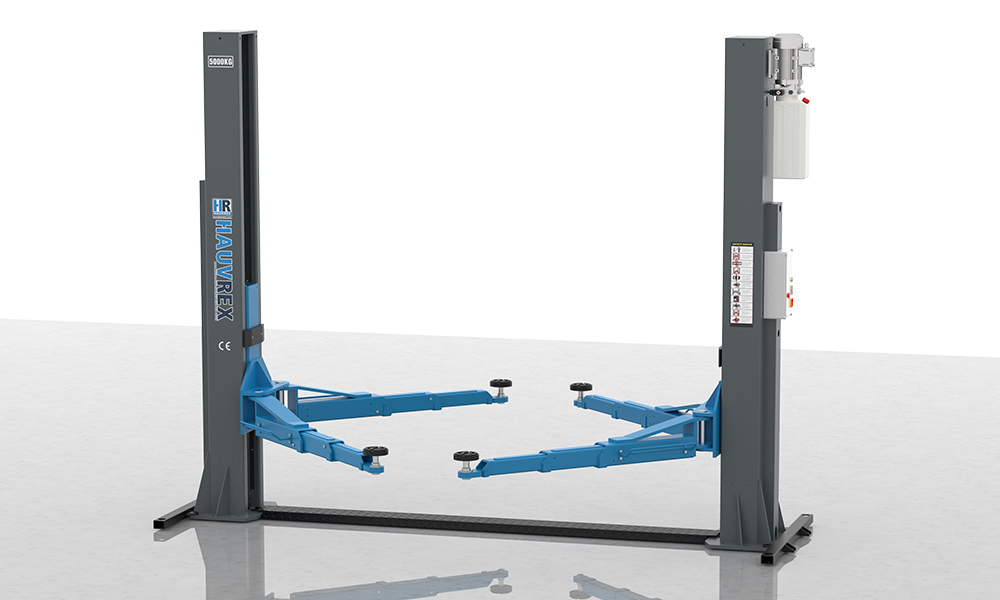

HTL2850 | Two-post lift
Technical Data Details Overall Dimension Optional parts


Metric

 American

 Lifting Capacity

5000kg

11000lbs

  Min. Height

110mm

4-11/32"

  Max. Lifting Height

1900mm

74-13/32"

Overall Height

2836mm

111-21/32"

  Overall Width

3760mm

148-1/32"

  Width between Posts

2840mm

111-13/16"

  Lifting Arm Length (Symmetric)

886~1800mm

34-29/32"~70-7/8"

  Lifting/Lowering Time

55 Sec./45 Sec.

55 Sec./45 Sec.

  Motor Power

3.0kW

3.0kW

  Power Supply

220V/50Hz/1Ph

380V/50Hz/3Ph

220V/60Hz/1Ph

110V/60Hz/1Ph
