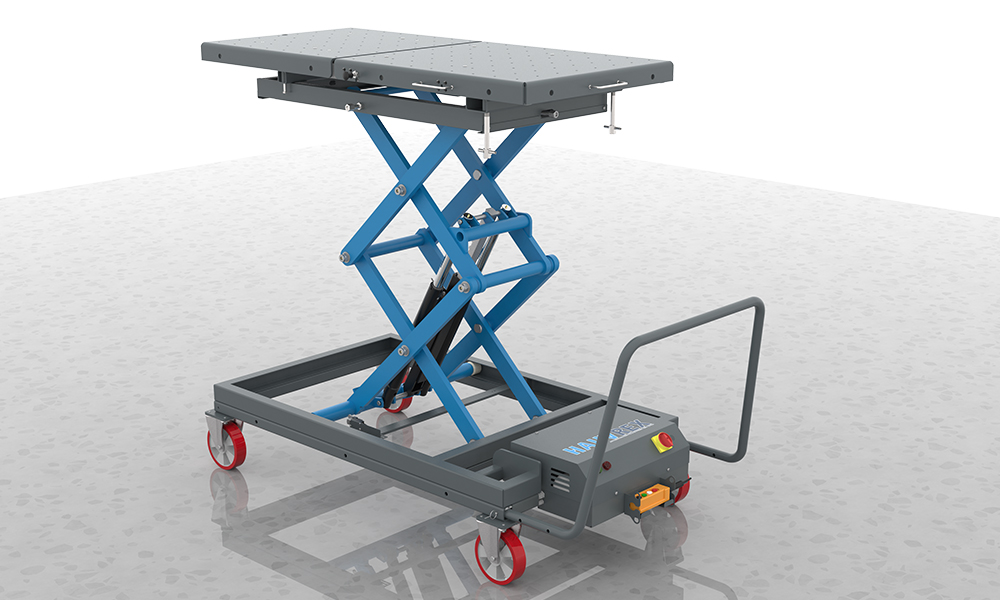

Smart Risen 1.5 | 1.5 Ton EV Battery Lifting Table

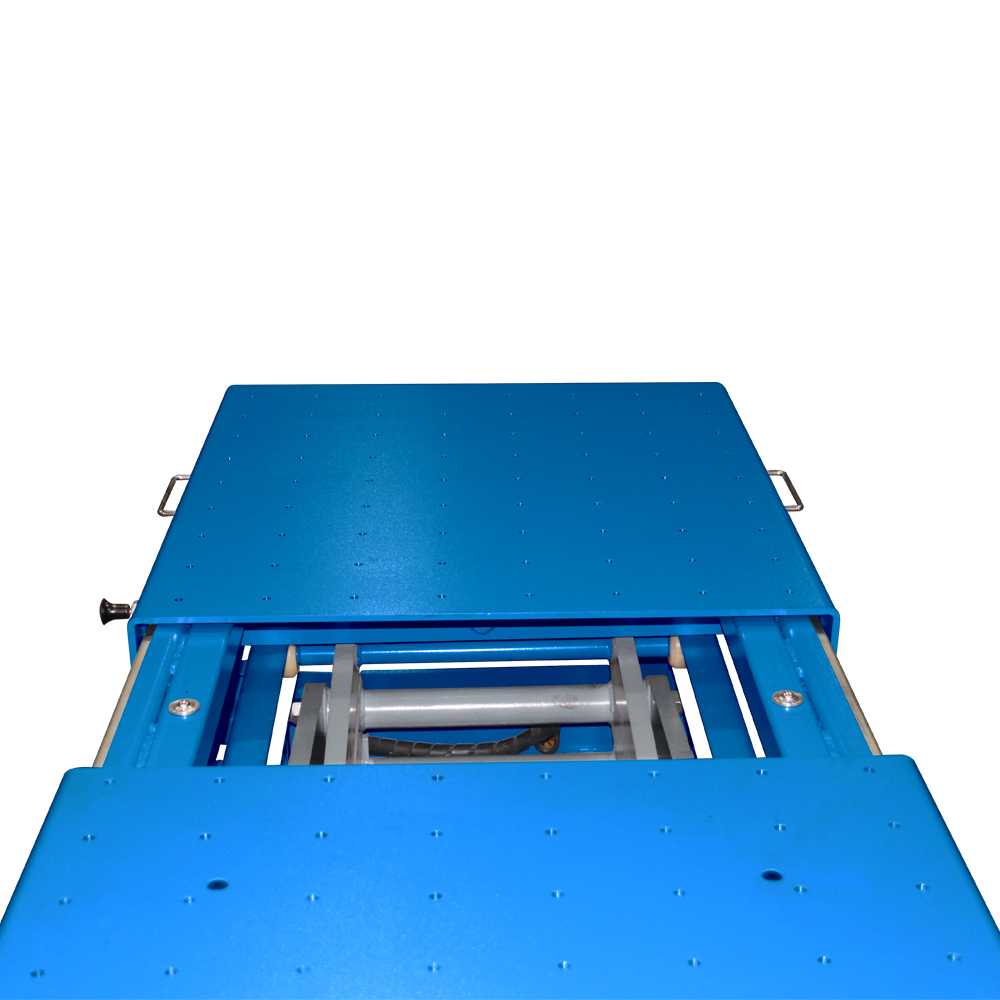

Split Table Top (1740mm L x 800mm W) comprised of high strength steel.
Allows powertrains to be separated while mounted to table.
M10 x 1.5 metric threaded holes integrated in top for mounting of future adapters.
Side mounting holes for securing components with suitable strap’s.

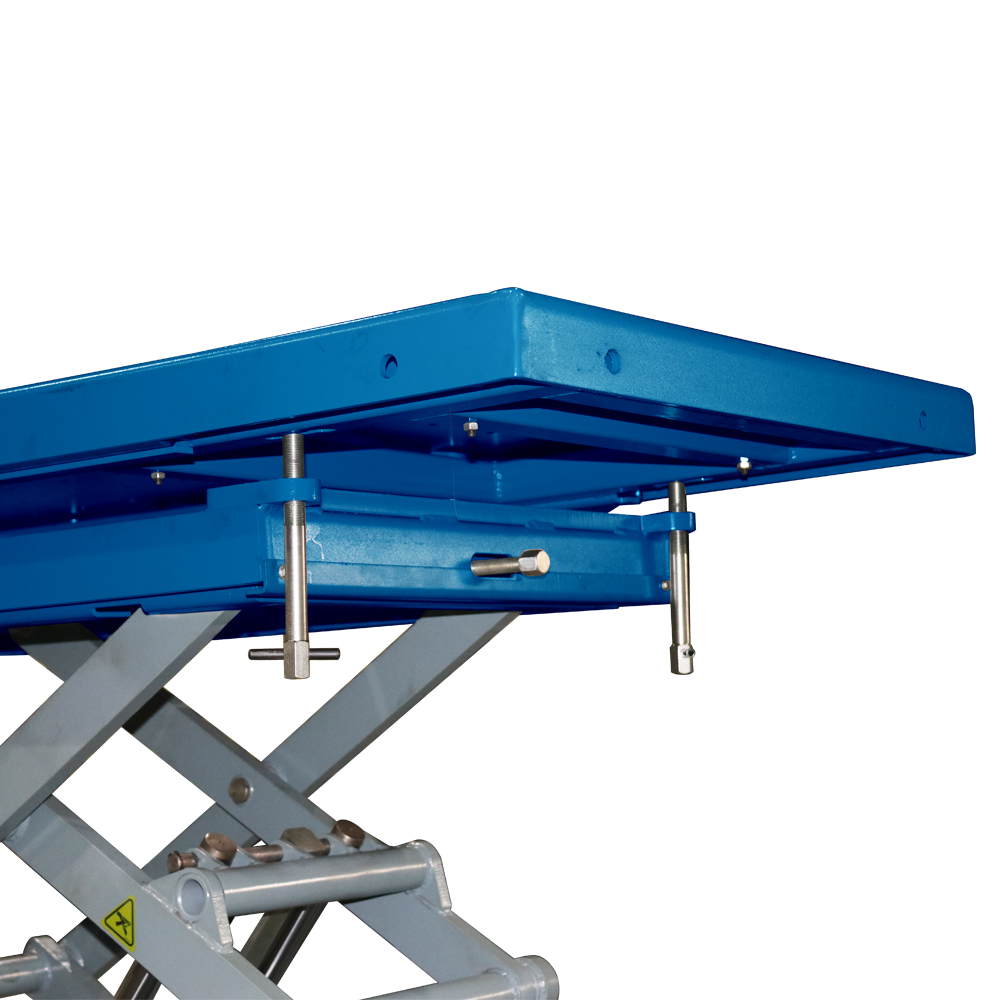

Two independent T-handle adjustment screws for asymmetric tilting of table surface.
Two adjustment screws for securing top when used as work bench surface.

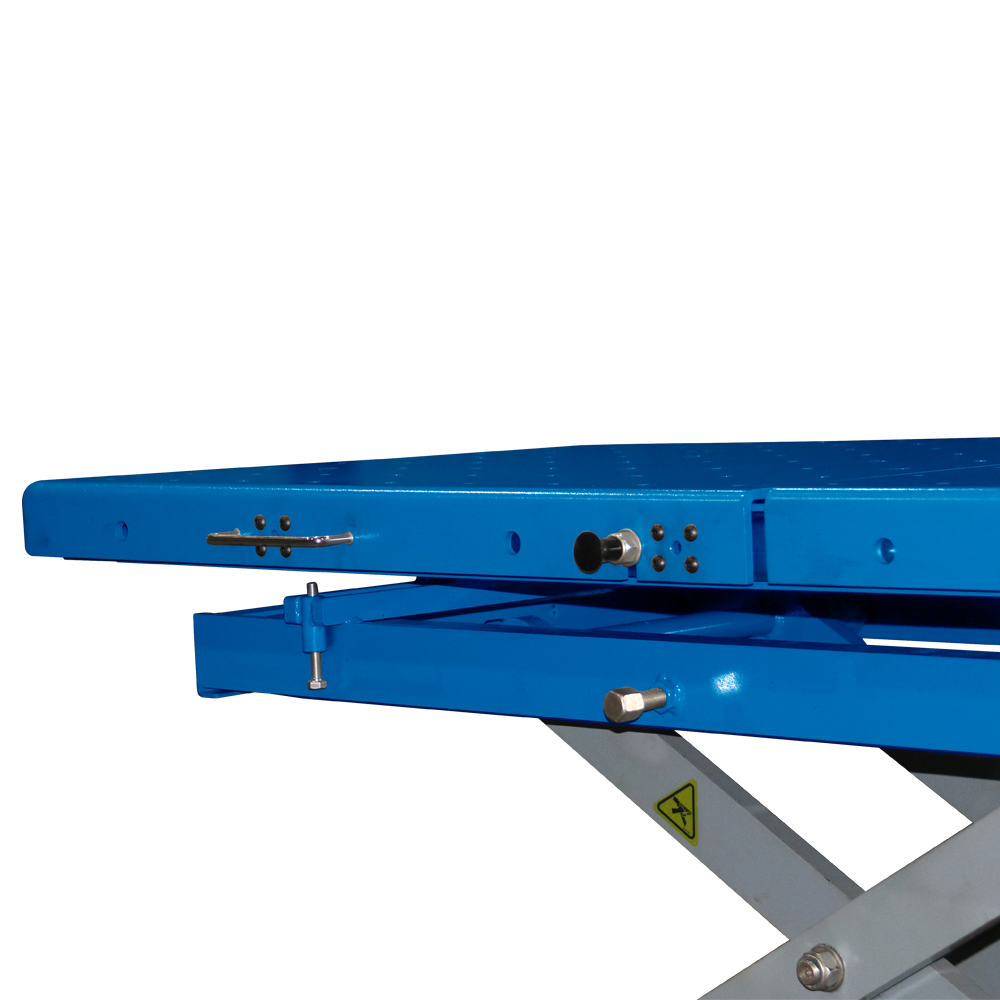

Detent pin for locking table top in three open positions.
Robust handle for transporting around garage; quick attachment to either end of lift with quick release pins.
8" polyurethane 360 degree swivel casters with integrated foot butterfly locks to prevent accidental rolling and detent locks for directional movement control.

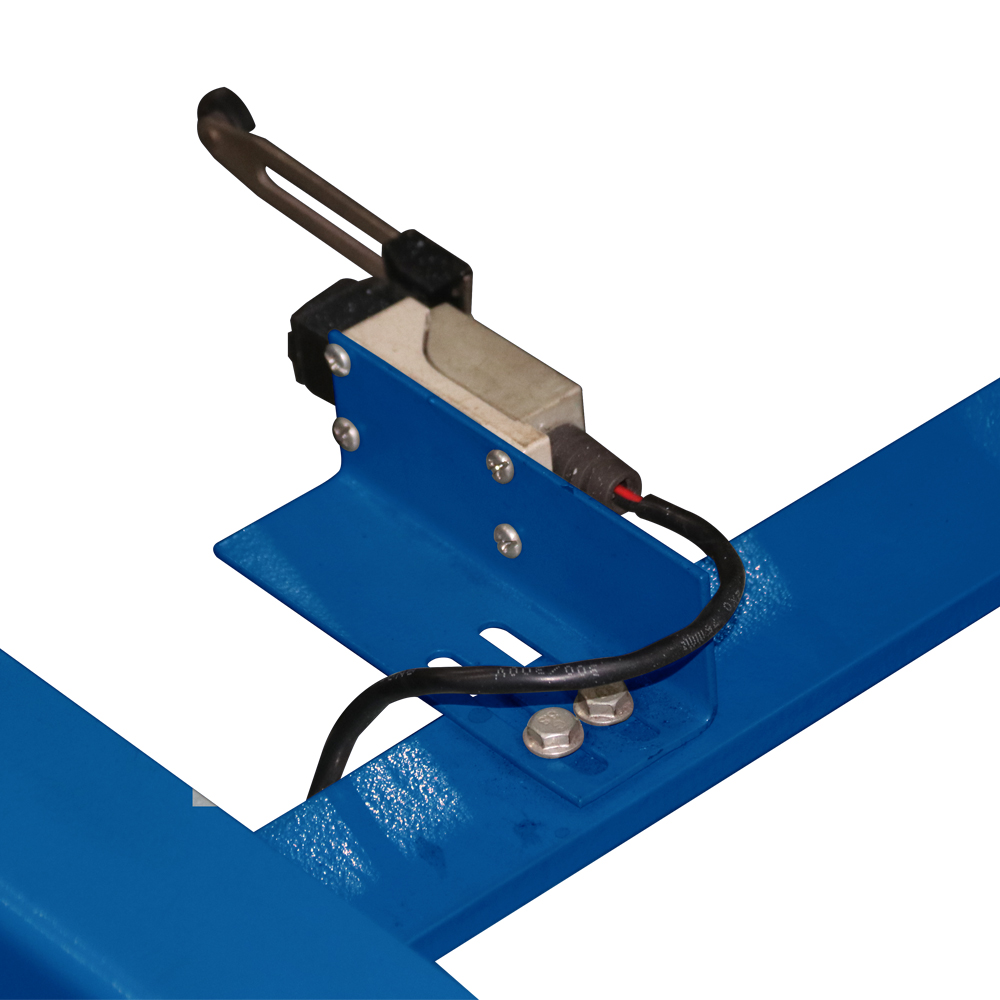

Mechanical safety latch with cable release.

	Metric	America
Lifting Capacity	1,500kg	2,643lbs
Min. Height	670mm	22-7/16"
Max. Lifting Height	2,019mm	75-9/16"
Platform Length	1,740mm~2,070mm	51-3/16"
Platform Width	800mm	30-5/16"
Ground Clearance	140mm	5-9/16"
Motor Performance	0.75kW	0.75kW
X Axel Direction Movement	50mm	2"
Y Axel Direction Movement	50mm	2"
Platform Tilting X Axel	3°	3°
Platform Tilting Y Axel	3°	3°
Total Weight	1.5kW	1.5kW
Lifting/Lowering Time with load	60 Sec./40 Sec.	60 Sec./40 Sec.
Power Supply	220V/50Hz/1Ph	110V/60Hz/1Ph
