HC8210
Inicio > Productos > Desmontadoras > Para turismo y furgoneta
  • 1

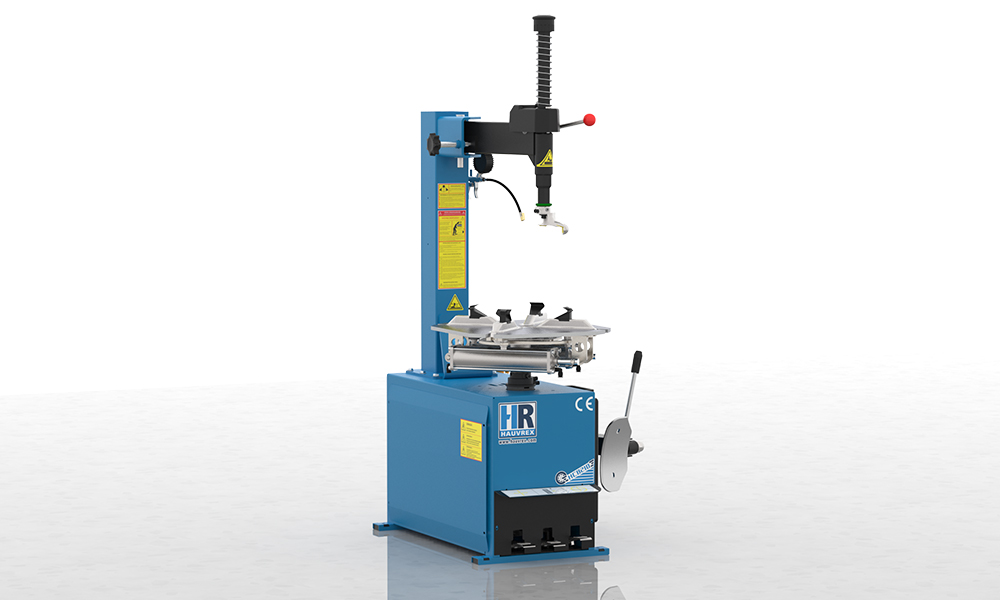

HC8210 | Desmontadora
♦ Swing horizontal arm with Ø36mm hexagon shaft.
♦ Mechanical locking and vertical adjustment of mounting arm.
♦ Tools head with interchangeable plastic inserts for rim protection.
♦ Self-centering four-jaws with double pneumatic cylinder for secure clamping of all rim types.
♦ Powerful clamping cylinders provide uniform clamping pressure.
♦ Clockwise and anticlockwise rotation of the turntable through electric motor.
♦ The pedal assembly can be removed allowing easy servicing.
♦ Inflation gun with pressure gauge and pressure release button.
♦ Protection kit for bead breaker shoe, demounting head and clamping jaw comes standard.
♦ Complete with lubrication filter and pressure regulator.
Datos técnicos Detalles Dimensión total Piezas opcionales

HC8210

HC8210S

Rango de sujeción de la llanta (externo)

12"~24"

12"~21"

Rango de sujeción de la llanta (interno)

10"~22"

10"~19"

Diámetro máximo de la rueda

960mm

960mm

Anchura máxima de la rueda

3"~15"

3"~15"

Fuerza de destalonamiento

2,700kg

2,700kg

Alimentación neumática

8~10bar

8~10bar

Potencia

2.2kW

2.2kW

Fuente de alimentación

220V/50Hz/1Ph

380V/50Hz/3Ph

220V/60Hz/1Ph

110V/60Hz/1Ph
