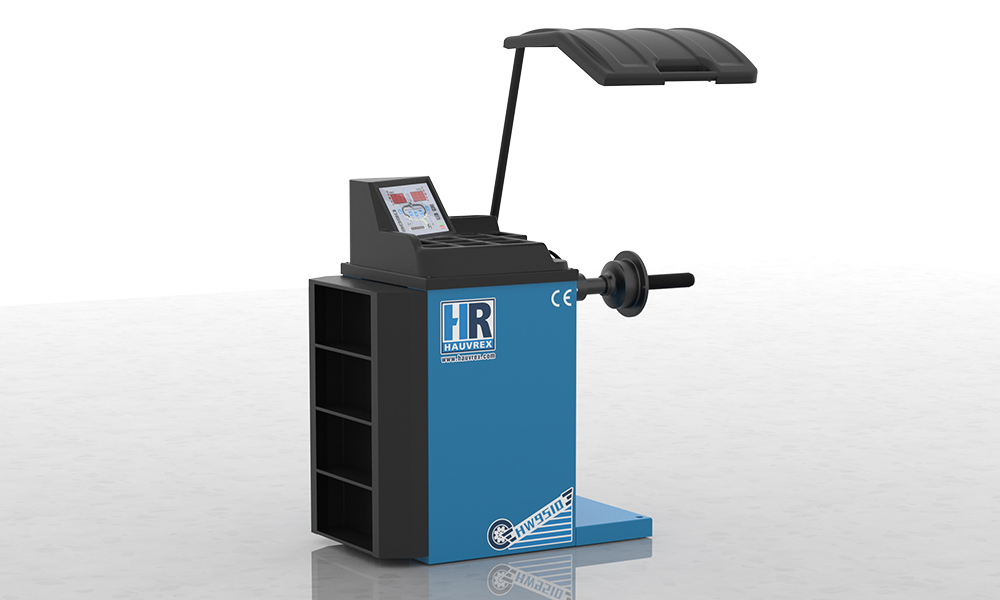

HW9510/9520 | Equilibradora de rueda
♦ Precise phase angle location, error less than +/- 1 and easy accurate laser marker
♦ Complete self-diagnosis system and built-in error checking function, easy to repair.
♦ According to the need, counterweight position and laser indicator can shift from 12 o’clock to 6 o’clock randomly, convenient to wash and stick inside wheel hub.
♦ Calibration: calibrate the weight, shaft and automatic gauges at user’s end to guarantee the precision.
♦ Settings: to modify the configurations
♦ Automatic measurement gauge for rim width and distance, forever precise digital gauge, no need to calibrate out of factory
♦ Optional motorcycle accessories for motorcycle dynamic balance measurement.
Datos técnicos Detalles Dimensión total Piezas opcionales

Diámetro de llanta

10"~32"

Anchura de llanta

1.5"~25"

Peso max. rueda

65kg

Diámetro de rueda

1000mm

Precisión de equilibrado

+/-1g

Velocidad de medición

<150rpm

Tiempo de medición

<6 Sec.

Potencia del motor

250W

Nivel de ruido

<70 db

Alimentación

220V/50Hz/1Ph
