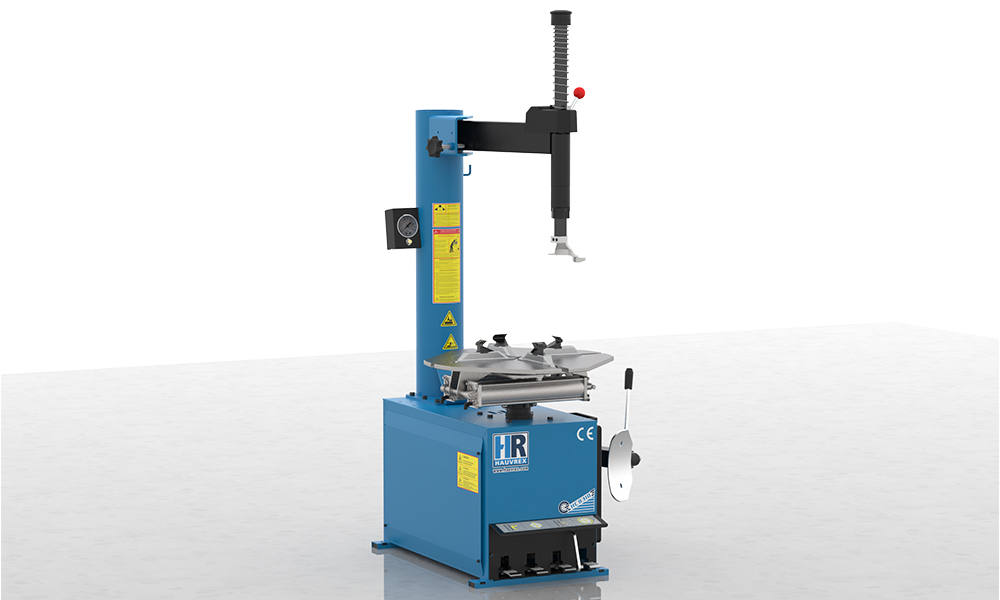

HC8310 | Desmontadora
♦ Swing horizontal arm with Ø41mm hexagon shaft.
♦ Cylindrical vertical tower featuring high torsional rigidity.
♦ Mechanical locking and vertical adjustment of mounting arm.
♦ Tools head with interchangeable plastic inserts for rim protection.
♦ Self-centering four-jaws with double pneumatic cylinder for secure clamping of all rim types.
♦ Powerful clamping cylinders provide uniform clamping pressure.
♦ Clockwise and anticlockwise rotation of the turntable through electric motor.
♦ The pedal assembly can be removed allowing easy servicing.
♦ Tire inflation unit mounted on column with inflation tube, pressure gauge and pressure release button
♦ Protection kit for bead breaker shoe, demounting head and clamping jaw comes standard.
♦ Complete with lubrication filter and pressure regulator.
Datos técnicos Detalles Dimensión total Piezas opcionales

Rango de sujeción de la llanta (externo)

12"~24"

Rango de sujeción de la llanta (interno)

10"~22"

Diámetro máximo de la rueda

1040mm

Anchura máxima de la rueda

3"~15"

Fuerza de destalonamiento

2700kg

Alimentación neumática

8~10 bar

Potencia

0.75kW/1.1kW

Fuente de alimentación

380V/50Hz/3Ph

220V/50Hz/1Ph
