HC8930
Inicio > Productos > Desmontadoras > Para camión
  • 1

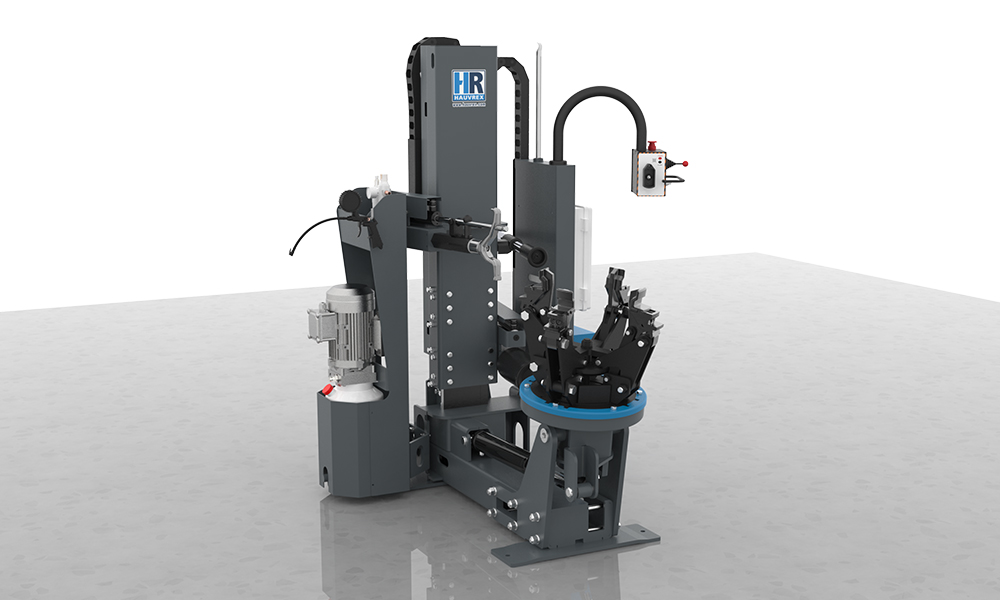

HC8930 | Desmontadora
♦ New concept vertical truck tire changer for drop-centre and tubeless-tyre van, truck and bus wheels, and wheels with cylindrical rim with rim loop
♦ Electro-hydraulic operation for superior torque and wheel holding power.
♦ Hydraulic sled carriage for positioning, bead loosening, mounting and demounting procedures.
♦ Hydraulic power unit installed on the machine to take up less space.
♦ Hydraulically operated universal self-centering chuck clamps rims from 14" to 26" either on the inside or through the center hole ensures clamping of virtually all rims and off-load style wheels.
♦ The clamping chuck rotates in both direction.
♦ With pressure gauge for monitoring the hydraulic pressure.
Datos técnicos Detalles Dimensión total Piezas opcionales

Rango de sujeción llanta

14"~26"

Anchura máxima de la rueda

780mm

Diámetro máximo de la rueda

1600mm

Peso máximo de la rueda

500kg

Fuerza de destalonamiento

2700kg

Alimentación neumática

130 bar

Potencia de caja reductora

3.0kW

Fuente de alimentación

380V/50Hz/3Ph

220V/50Hz/1Ph
