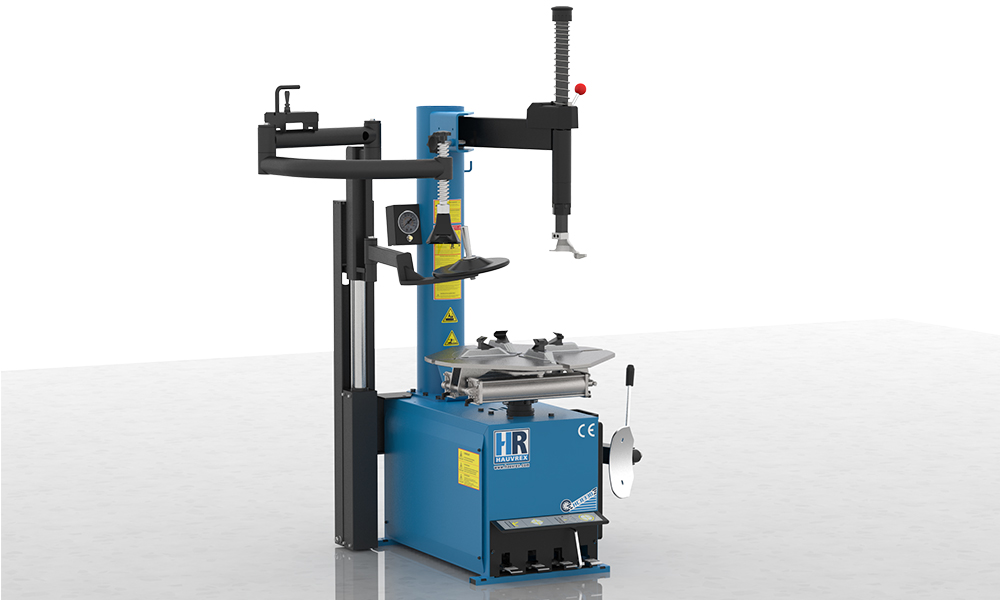

HC8330 | Tire Changer
♦ Swing horizontal arm with Ø41mm hexagon shaft.
♦ Cylindrical vertical tower featuring high torsional rigidity.
♦ Mechanical locking and vertical adjustment of mounting arm.
♦ Tools head with interchangeable plastic inserts for rim protection.
♦ Self-centering four-jaws with double pneumatic cylinder for secure clamping of all rim types.
♦ Powerful clamping cylinders provide uniform clamping pressure.
♦ Clockwise and anticlockwise rotation of the turntable through electric motor.
♦ The pedal assembly can be removed allowing easy servicing.
♦ Tire inflation unit mounted on column with inflation tube, pressure gauge and pressure release button
Protection kit for bead breaker shoe, demounting head and clamping jaw comes standard.
♦ Complete with lubrication filter and pressure regulator.
PX30 helper arm:
» Rotating arm with bead pressing head for drop-center rims, to assist fitting and removal of tyres, particularly low profile tyres.
» Tyre lifting disk to aid in demounting difficult tyre and wheel combinations.
технические данные подробности общий размер факультативных частей

Диаметр дисков - снаружи

12"~24"

Диаметр дисков - изнутри

10"~22"

Макс. диаметр колеса

1040mm

Ширина колеса

3"~15"

Усилие отрыва борта шины

2700 кг

Рабочее давление воздуха

8~10 бар

Потребляемая мощность

0.75 кВт/1.1 кВт

Электропитание

380В/50Гц/3Ф.

220В/50Гц/1Ф.
